INTERRUPTOR ML-1FLP TRAINER FUTM3680

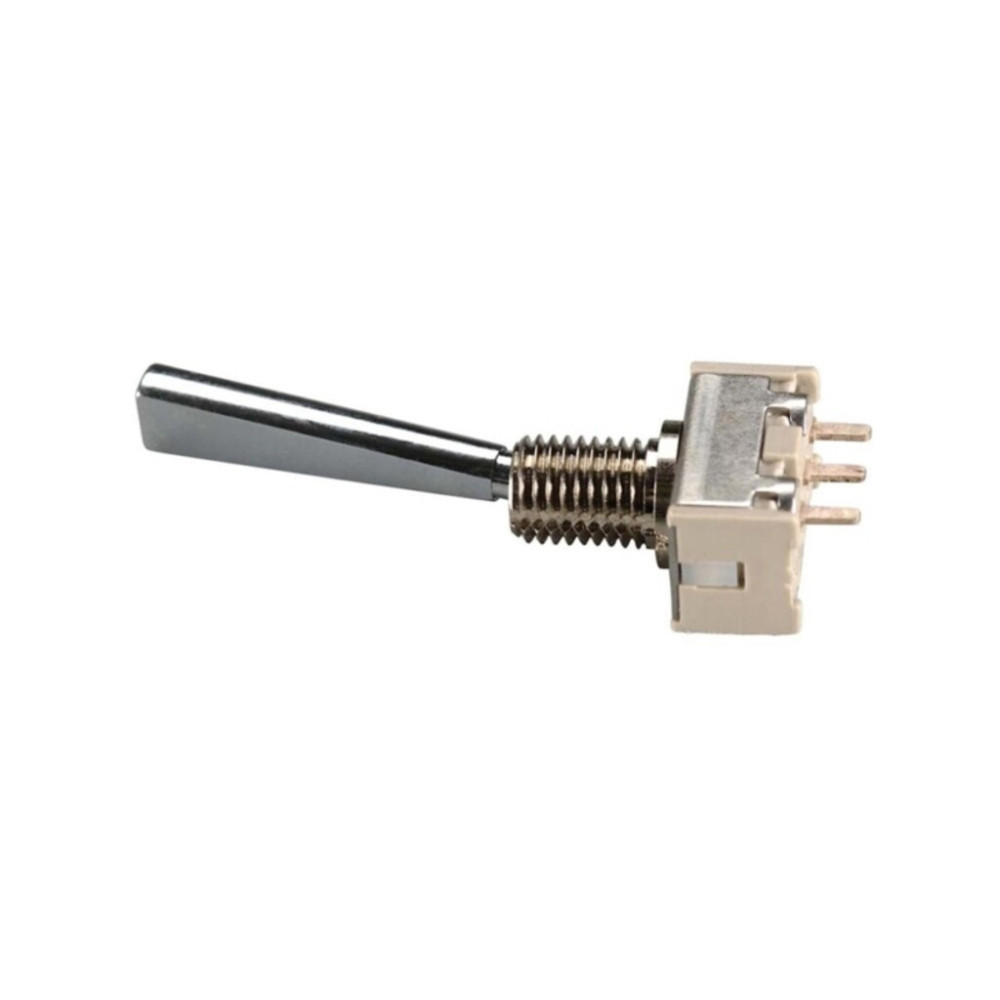

This is a Momentary Long Toggle switch used in Futaba radios. This will NOT work in the 9Z Series Radio.

FEATURES:

• Chrome look flat Toggle switch.
• Ready to be mounted to PC board.

INCLUDES:

• One Momentary toggle switch.

REQUIRES:

• Installation into "out of warranty" radio.

SPECS:

• Length of switch from base (top of threads): .80" (20mm)

COMMENTS:

• Futaba provides these spare parts as a courtesy to those modelers with the skills and tools to replace the switches on their older, out-of-warranty, dropped or damaged radios. Futaba provides no instructions and accepts no liability in the installation of these replacement switches. REPLACING THESE SWITCHES MAY VOID YOUR WARARNTY on an IN-WARRANTY radio, and under no circumstances may Futaba be held responsible for damage done as a result of the switch replacement.

Switch Part Number

-8UA F/P non-Super and Super (airplane):
A, D, E: FUTM3676
G: FUTM3677
B, H: FUTM3678
C: FUTM3679
F: FUTM3680

-8UH F/P non-Super and Super (helicopter):
A, D, G: FUTM3676
E: FUTM3677
B, F: FUTM3678
C: FUTM3679
SSw H: FUTM3680

-6VA (airplane):
trainer: FUTM3680
all except trainer: FUTM3676

-6VH (heli) (has no trainer function):
All except gear: FUTM3676
Gear/ch 5 6VH: FUTM3678

-5UA, 6XA and 6XAS (airplane):
Ele, ail D/R: FUTM3676
Gear/Flap -air: FUTM3676
Gear - Heli: FUTM3678
Air Brake - Air: FUTM3678
IdleUp/ThrHold-Heli: FUTM3676

-6YG:
Gear: FUTM3676
For the D/R switch and Trainer switch you would need to contact
the warranty center.

-7UA F/P non-Super or Super (airplane):
Ele/Ail D/R, gear, mix: FUTM3676
Rudder D/R: FUTM3676
Mix: FUTM3679

-7UH F/P non-Super or Super (helicopter):
Ele/Ail D/R, Thr Hold: FUTM3676
Rudder D/R: FUTM3676
Ch 5/Ch 7: FUTM3678
Idle up: FUTM3677
