DS535M ALIGN DIGITAL SERVO HSD53501T

Instruction:

• Coreless Motor Design for fast speed, high efficiency, and low power consumption.
• Higher signal resolution for smooth movements.
• Response time of 0.035s/60°. High rigidity metal gears with high precision and durable structure characteristics.
• Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
• Supports high voltage 8.4V.
  Powerful and precise servo suitable for T-Rex 500 CCPM cyclic and rudder servo use.

Specification:

• Stall torque: 5.0kg.cm(6.0V)
  6.5kg.cm(8.4V)
• Motion speed: 0.05sec/60°(6.0V)
  0.035sec/60°(8.4V)
• Rating voltage: DC 6.0-8.4V
• Temperature range: -20°C ~ +60°C
• Dimension: 35.1 x 15.1 x 29mm

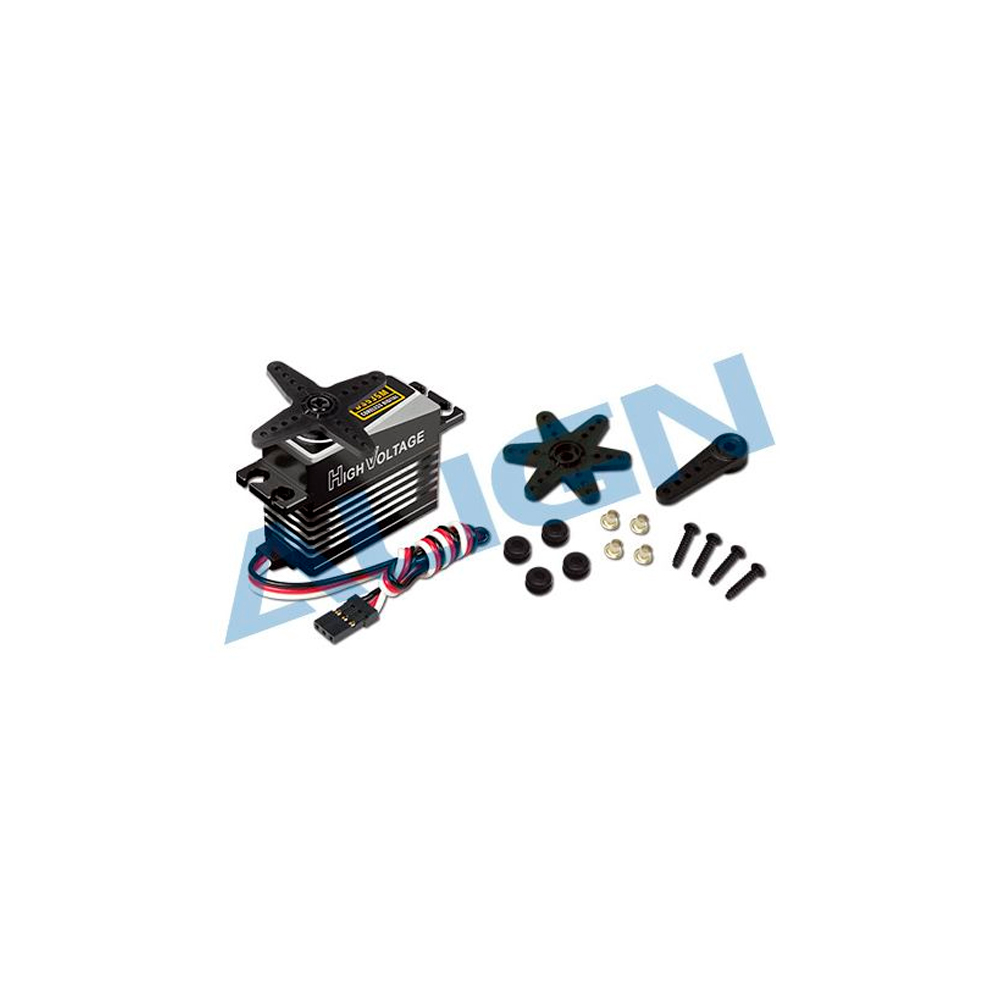

• Weight: 36gAccessories:●DS535M Digital Servo x 1
• Servo Arm x 1
• DS515/525 Servo Arm Set x 1
• Socket Button Head Self Tapping Screw x 4(T2.6x12mm)
