AS3X® STABILITY FOR ANY SYSTEM.

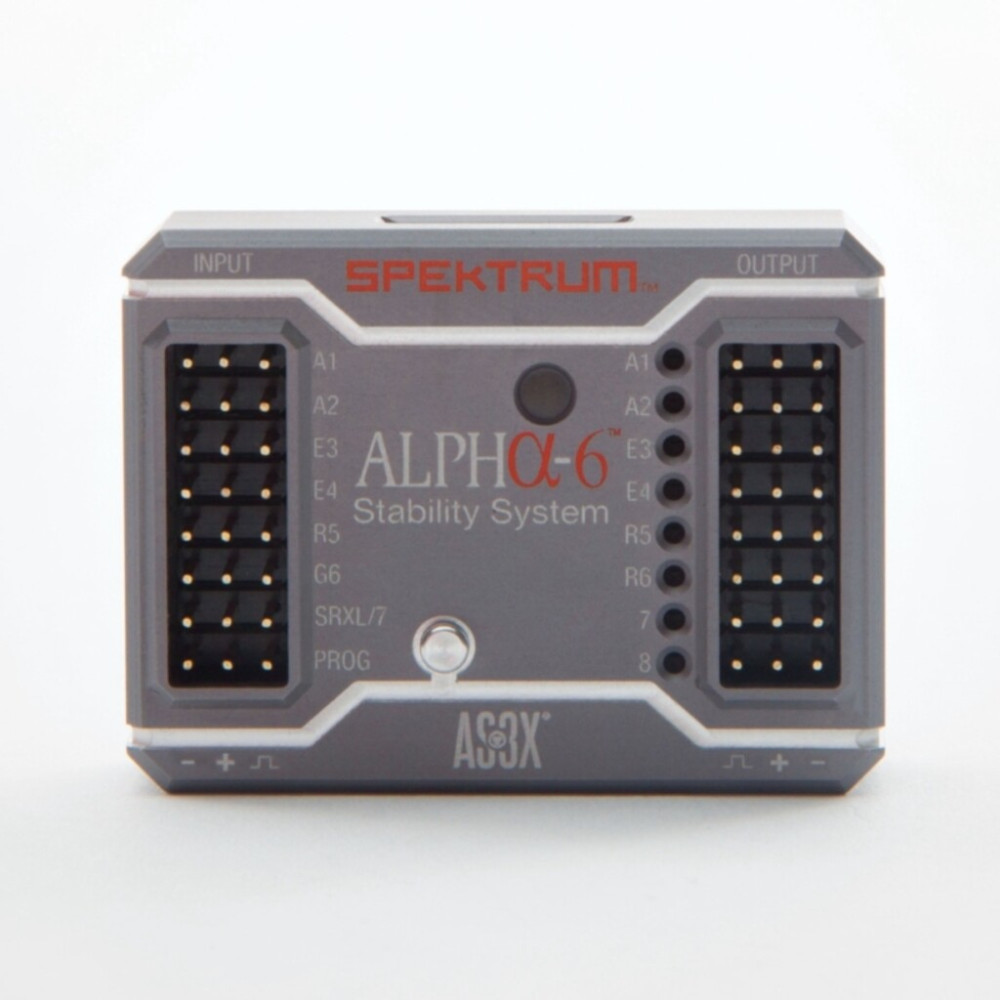

With the Alpha-6™ Stability Box, you don't have to use Spektrum™ technology to transform your flying experience with the stability and precision that only AS3X® technology can provide. It works with almost any make of receiver and is easy to install.
READY TO GO, RIGHT OUT OF THE PACKAGE
The Alpha-6 Stability Box comes with basic stability settings already programmed. If you want to tailor these settings or tap into advanced functions, a free PC interface is available. But you won't need it to start enjoying the benefits of AS3X technology right away.
Without the interface, all you have to do is install the unit as directed and plug it in between your receiver and servos. Once you’ve assigned a channel for making gain adjustments and completed the simple setup procedure to establish orientation, you're ready to go.
FREE PC PROGRAMMING INTERFACE
The free Alpha-6 programming interface will make it easy to fine tune stability settings or access other advanced features using your PC and the Spektrum programming cable that is sold separately.
SUPPORTS STANDARD PWM AND SPEKTRUM SRXL SERIAL RECEIVER INPUTS
The unit comes with seven channel-input connections and eight servo-output connections for use with standard PWM receivers of almost any make and model. If you own a Spektrum receiver with SRXL serial output, you can run all your input channels to the box through a single connector.
STANDARD PWM RECEIVER SETUP
SPEKTRUM SERIAL SRXL CONNECTION
*Not compatible with AR7700 and SPM4648 multi-rotor serial receivers.
SPEKTRUM TELEMETRY MODULE_RECEIVER SETUP
AS3X TECHNOLOGYAGILITY AND STABILITY IN PERFECT HARMONY
Since the beginning of aeromodeling, agility and stability have been at odds. Design a model to be more stable and you lose some of the crisp response you need for aggressive aerobatics. Design it to be more agile and you'll find yourself working harder to keep it in a desired attitude. No more! With AS3X (Artificial Stabilization – 3-aXis) technology, you can enjoy agility and stability without having to sacrifice either.
HOW AN AS3X SYSTEM WORKS
An AS3X System works behind the scenes to stabilize an airplane in whatever attitude you command. It does so using a combination of sophisticated 3-axis sensors and exclusive flight control software tuned by expert RC pilots.
In a 3D aerobatic model, an AS3X System will make slow speed and knife-edge maneuvers feel much more locked-in and predictable. In a scale warbird or ultra micro, it will counter the effects of turbulence on windy days so the plane tracks beautifully at any speed.
Best of all, flying with an AS3X system feels completely natural. Stick-priority programming in its software gradually reduces the amount of stability assistance the system provides the further you move a control stick from center. There is no delay in response or limits on your control throws. You simply feel like you’re flying an expertly tuned model that flies right where you point it whenever you center the sticks.
