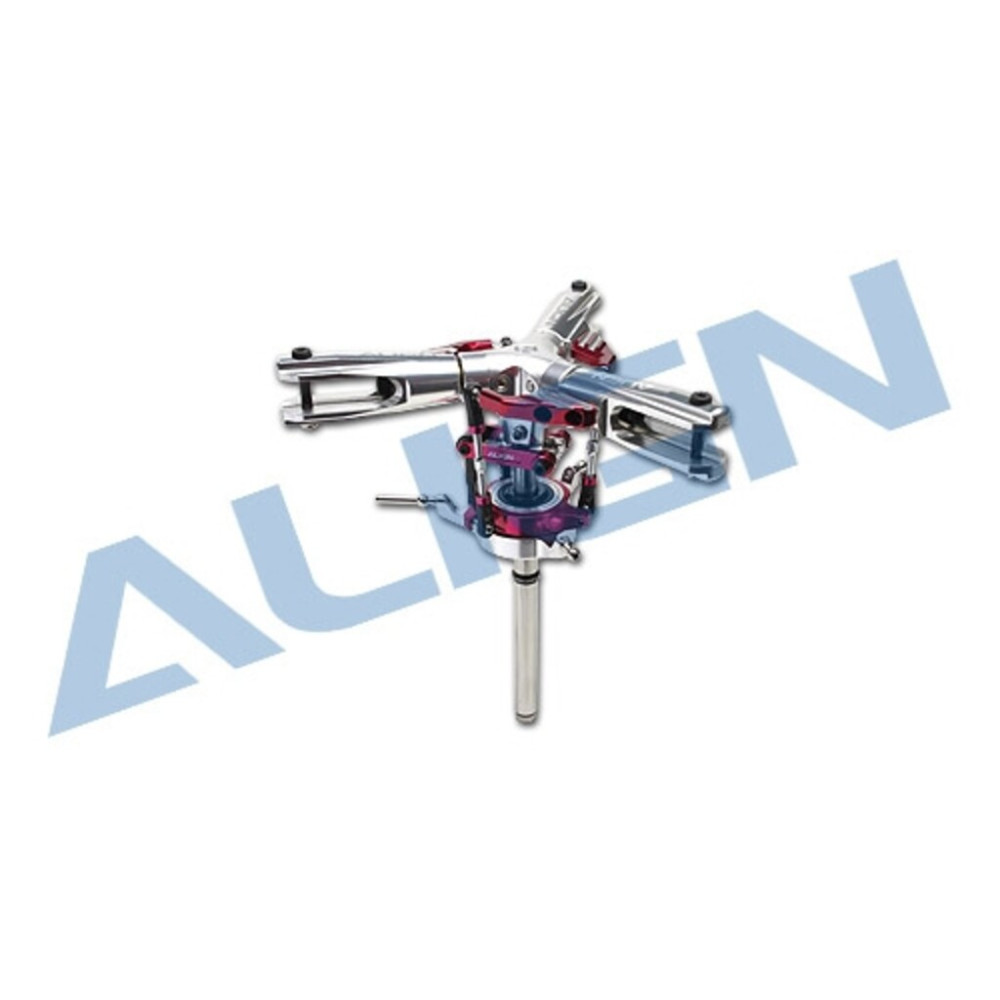

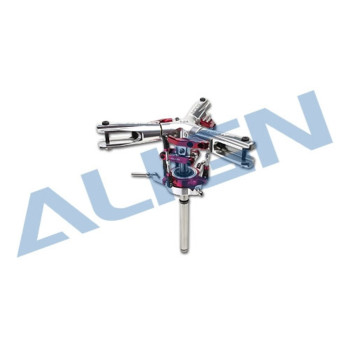

TR550L TRI-BLADE ROTOR HEAD H55H004XXT

Product:

Product:

Product:

Package:

Instruction:

Suitable for T-REX 550
The new 550E Three-Blade Rotor Head is specially made from 3-D rotation surface process, as well as aerospace grade aluminum alloy, strongly enhance structural toughness and precision.

Also painted with high texture and bright red satin plating color highlight the extraordinary craftsmanship and beauty all in one.

The new three-blade head provide superior flight stability with low CG design allow to reduce flying resistance but bring more rigidity and fast response on the other hand.

Pilots can easily control between active and static condition, and enjoy the pleasure from the flight.

Optional Equipment:

550E Three Tail Blade Set(H55T005XXW)

520 Carbon Fiber Blades / 3(HD520D)

90 Carbon Fiber Tail Blades / 3(HQ0900D)

Specification:

Three-Blade Rotor Housing x 1;

Metal Main Rotor Holder x 3

Three-Blade Shaft Set x 3

Head Damper (8x12.9x6.5mm) x 3

Elevator ball link (5x6x19mm) x 6

550E Three-Blade Shaft screw x 3

Linkage rod A x 3

Spacer (8x11x1.3mm) x 3

Spindle bearing spacer (10x13.8x0.4mm) x 6

Thrust Bearing F8-14M (8x14x4.5mm) x 3

MR148ZZ Bearing (8x14x4mm) x 6

Washer (5x12x1mm) x 3

Socket Collar Screw (M3x6mm) x 6

Socket Screw (M3x10mm) x 2

Socket Button Head Screw (M2.5x8mm) x 2

Socket Collar Screw (M3x19mm) x 2

Socket Collar Screw (M4x25mm) x 3

Socket Screw (M5x10mm) x 3

M3 Nut x 2

M4 Nut x 3

Main Blade Grip Arm x 3

5 Linkage Ball B (M3x4) x 3

Elevator Arm Set x 2

Linkage Rod Set x 1

Washer (3x4.8x0.3mm) x 2

Linkage rod holder x 6

550E Three-Blade Rotor Main Shaft x 1

Main shaft spacer 0.3mm x 1

Main shaft spacer 0.5mm x 1

CCPM Metal Swashplate x 1

Linkage Ball B (M3x4) x 5

5 Linkage ball D (M3x3.5) x 1

5 Long linkage ball (M3x4) x 1
