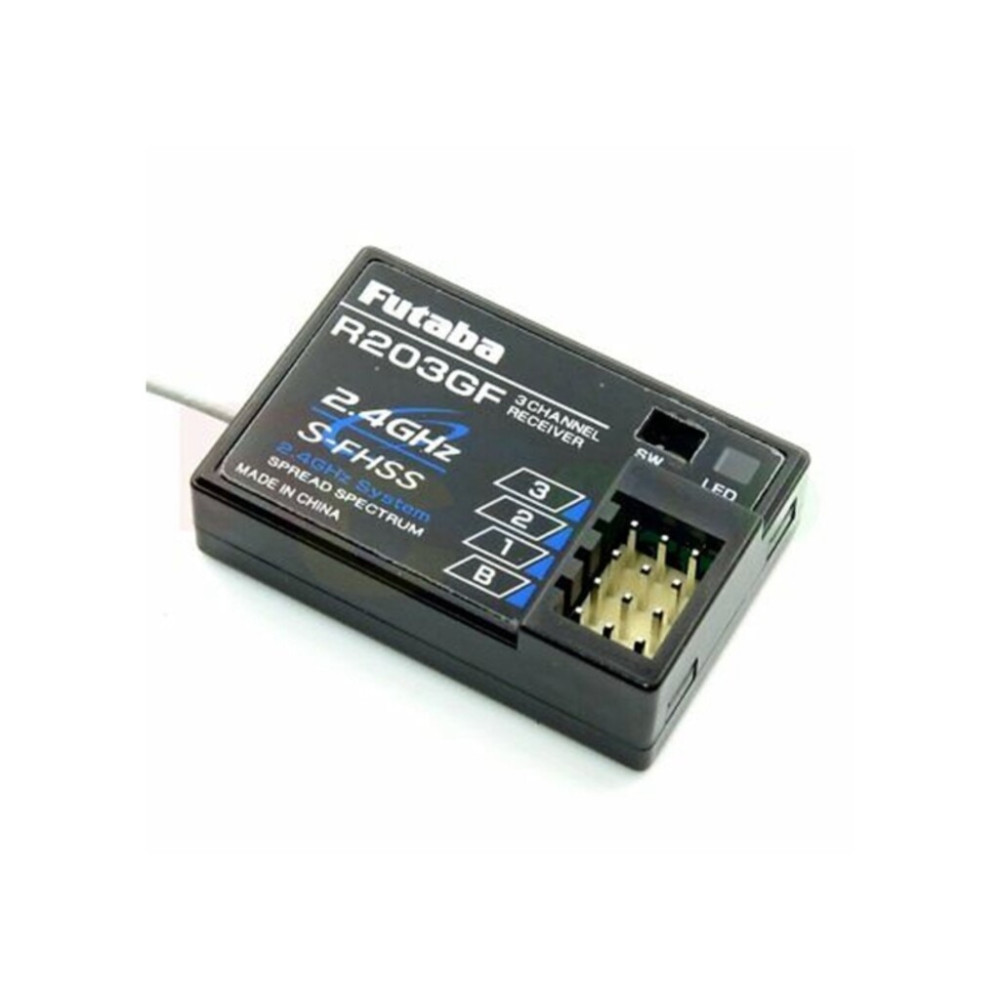

R203GF 3CH 2.4GHZ FUTAB SFHSS 011022373

FEATURES

S-FHSS/FHSS auto detection

Normal and High-Speed Modes:

Normal mode frame rate is (FHSS/S-FHSS) 13.63ms and accepts any type of servos or peripherals.

High-Speed mode (in 4PL tx only), with an output of 6.8ms accepts digital servos including the BLS series and most peripheral equipment such as brushless ESCs

One year limited warranty through Hobby Services beginning at date of purchase

INCLUDES

Futaba R203GF 2.4GHz S-FHSS 3-ch Receiver with Instructions

REQUIREMENTS

Installing in model and linking to transmitter

SPECIFICATIONS

Dimensions: 1.54 x 1.02 x 0.39" (39 x 26 x 10mm)

Weight: 0.28oz (8g)

Operating Voltage: 4.8 - 7.4V (shared with servo)

Battery Fail Safe Voltage: 3.8V*

Current Drain: 30mA at no signal

*Battery fail safe voltage is set for 4-cell NiCd/NiMH battery.

Battery F/S does not work properly when other type of battery is used

Antenna Length: 7-1/2"
