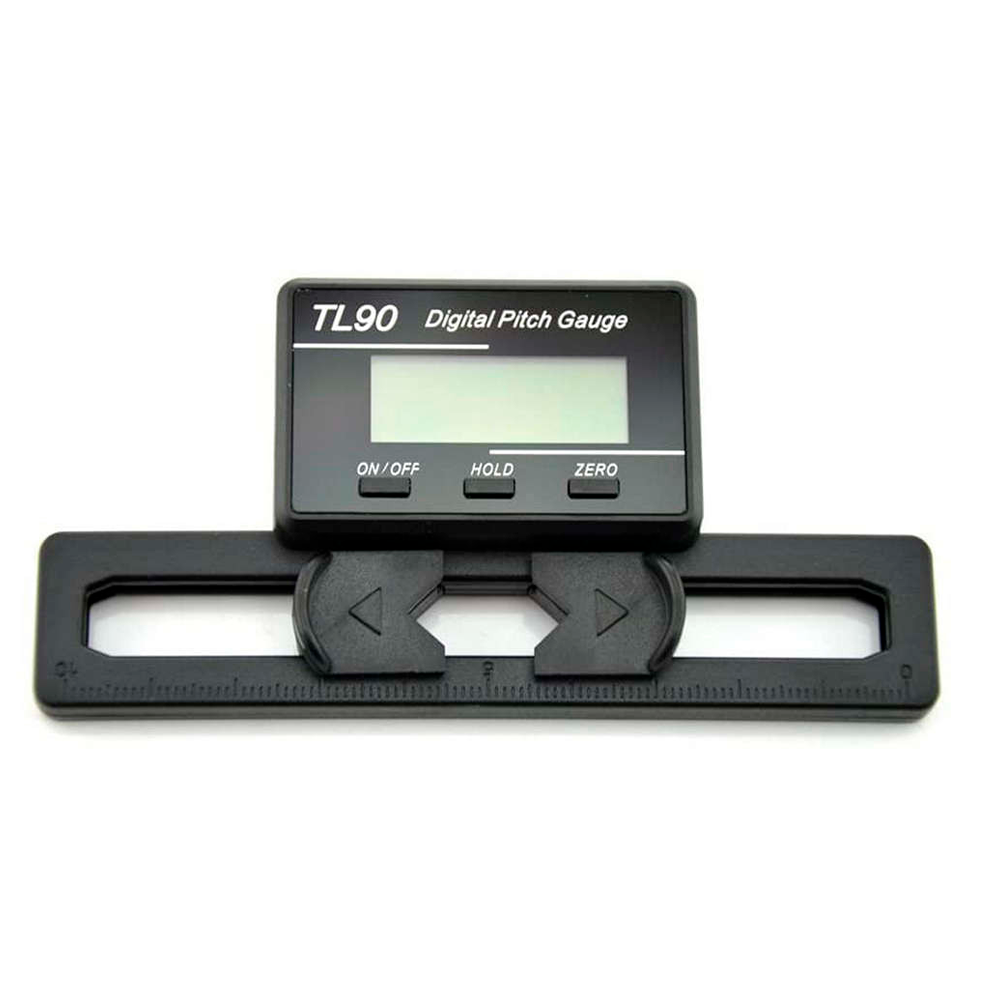

PITCH GAUGE DIAL TL90 250-800MM T17000

Description:

• This gauge TL90 can be used on the helicopter with Flybarless, the built-in digital gyro can detective the pitch of the blade automatically and display on the LCD with backlight
• LCD display with backlight
• Screen automatic reversal function
• Automatic level angle sense
• Delay angle return to zero and locking
• Suitable for the blade length from 250mm to 800mm

Specifications:

• Blade length:  250mm-800mm
• Working voltage:   3.0 V / DC (2 x CR2032, included);
• Working temperature:   0 centigrade - 40 centigrade
• Max. Current consumption:   3mA
• Measure precision:   0.1 degree
• Measure scope:   ±90°
• Pitch gauge Dimensions (L x H x P):  60 mm x 37 mm x 16 mm (pitch gauge)
• Sensor size (L x H x P):  120 mm x 68 mm x 6 mm (sensor)
• Weight:  around 48g
