REVO PIPE CONNECTOR TRAG5245

This is the Tune Pipe Coupler and Exhaust Deflector set for the Traxxas Revo.

It allows for a connection between the Exhaust Header and the Tune Pipe.

FEATURES:

Silicone construction Blue in color

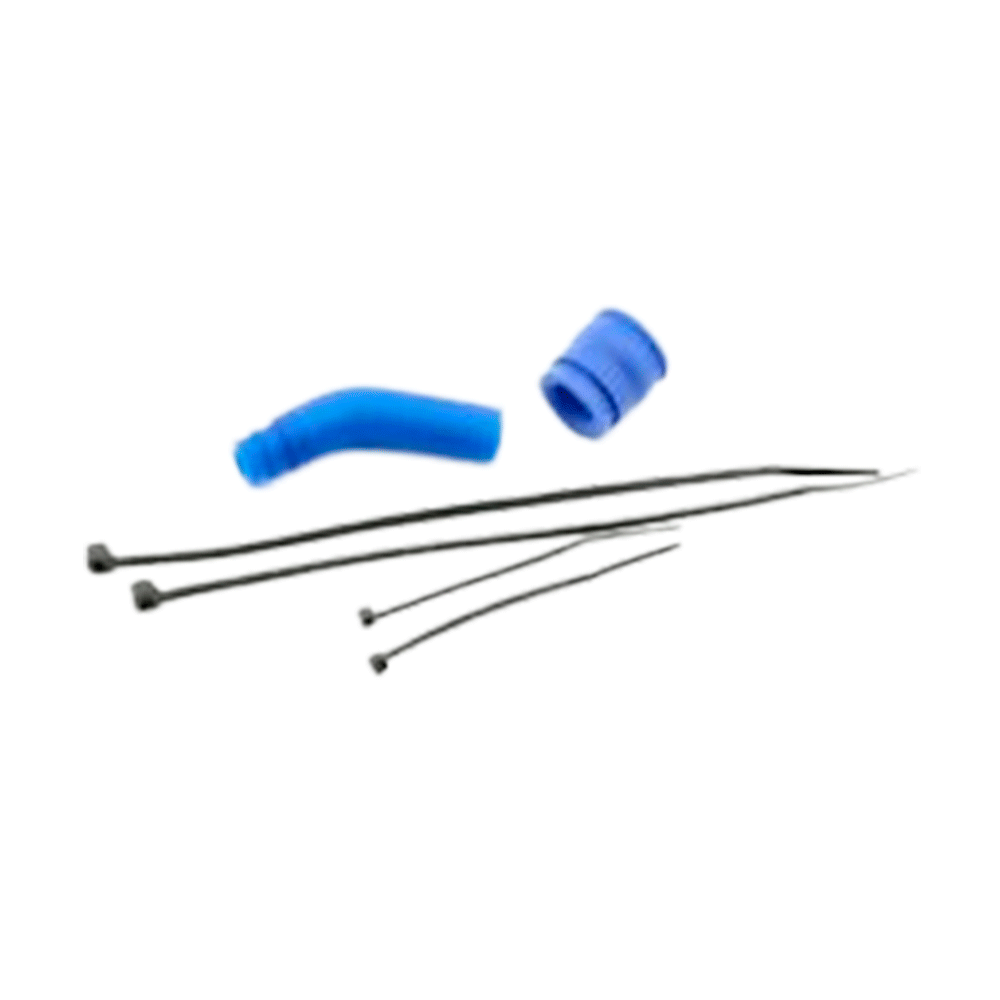

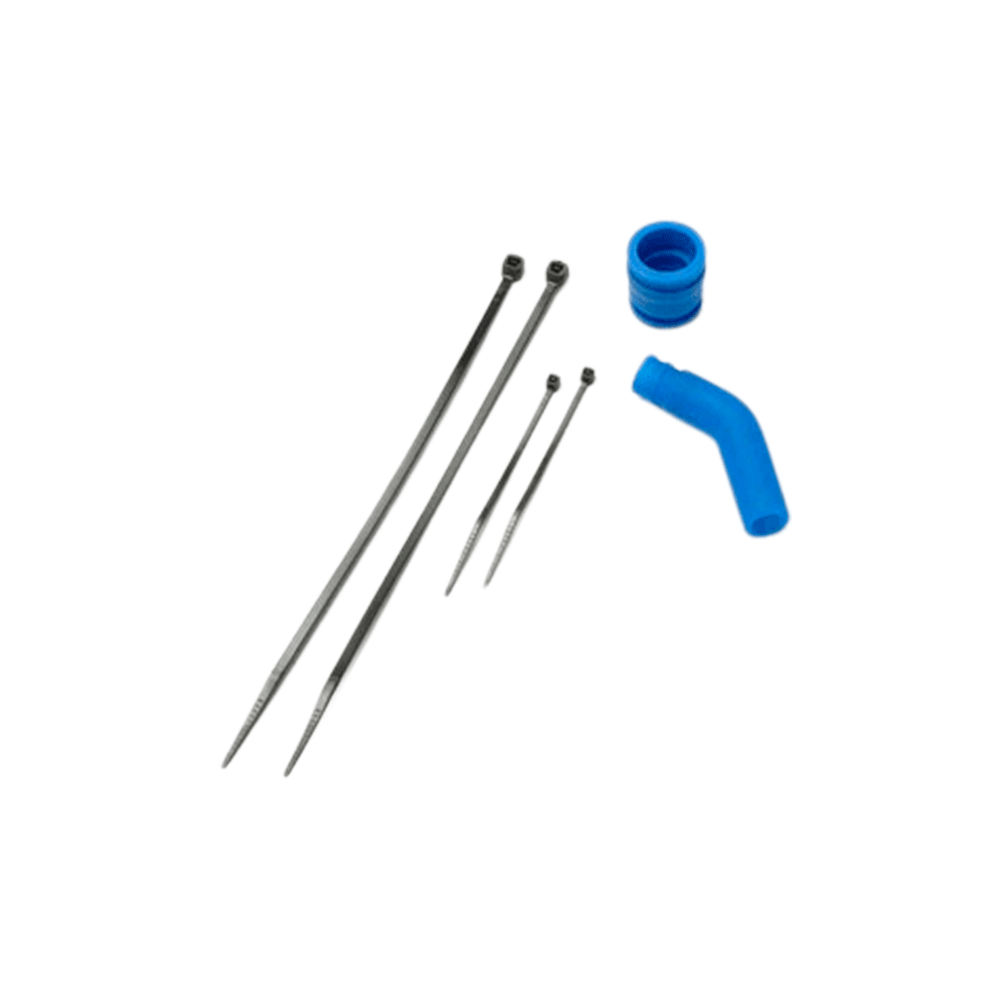

INCLUDES:

• One Tune Pipe Coupler
• One Exhaust Deflector (for use on the tune pipe)
• One short Tie-Strap
• Two long Tie-Straps

REQUIRES:

Assembly to vehicle

SPECS:

• Coupler Length: 24mm (.95")
• Coupler Inner Diameter Large: 14mm (.55")
• Coupler Inner Diameter Small: 13mm (.51")
• Coupler Outer Diameter Large: 25mm (.98")
• Coupler Outer Diameter Small: 22mm (.87")
• Deflector Length: 61mm (2.4")
• Deflector Inner Diameter Small: 8mm (.32")
• Deflector Inner Diameter Large: 10mm (.40")
• Deflector Outer Diameter Small: 11mm (.44")
• Deflector Outer Diameter, Large: 14mm (.55")

COMMENTS:

• If Tune Pipe is needed, use TRAG5342.
• If Header is needed, use TRAG5340.

NNA 8/13/04 ir/jxs
