6SH METAL RUDDER MOUNT 2 SERVOS SACFN2-C

6STARHOBBY High Quality CNC Metal Servo Rudder Mount Set for Two Servos

The rudder tray mounting hole sizes match with standard servo.

Both the rudder tray and servo arm are machined by CNC, with high accuracy.

Anodic oxidation treatment on surface, artistic while anti-corrosion

2 bearings in the arm support, together with high accuracy wear-resisting copper axle, guarantee perfect rotation.

Stainless steel hexagonal pushrod with US standard positive & reverse threads

Hexagonal ball head cooperates better with the help of flat gasket, and more reliable.

All nuts are locknuts, can avoid loose connection caused by vibration.

The M3 internal threads make it easier to fix ball head, linkage stopper, or directly connect the wires which connect the servo.

4 alternative sizes of double arm: 3.5in, 4in, 4.5in, 5.0in (longer the arm, more flexible the servo is, but stricter requirements on the torque force on servo)

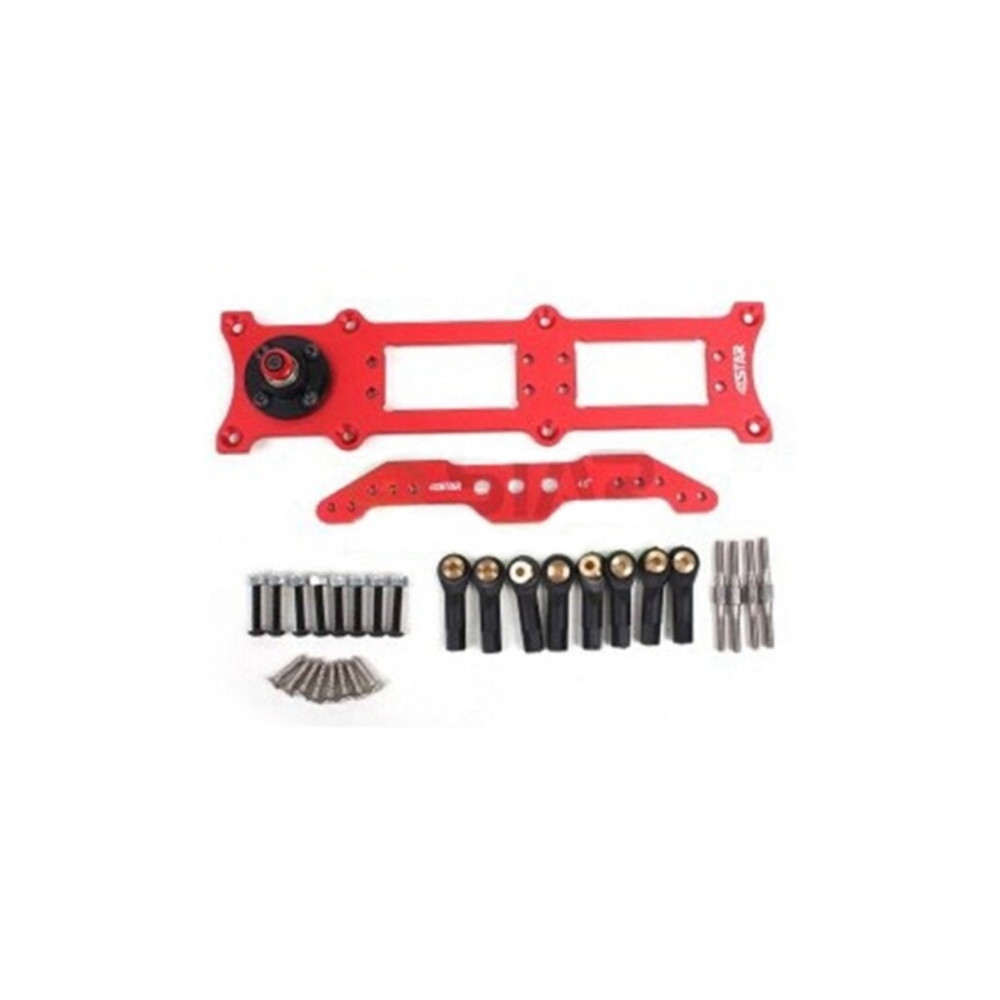

Accessories

1 Rudder Tray

1 5in/4.5in/4in/3.5in  double arm

4 Stainless Steel hexagonal M3 pushrod

8 hexagonal ballΦ3*L30*Φ3mm

8 M3*12 head tapping screws

8 M3*18 screws

8 M3 locknuts
