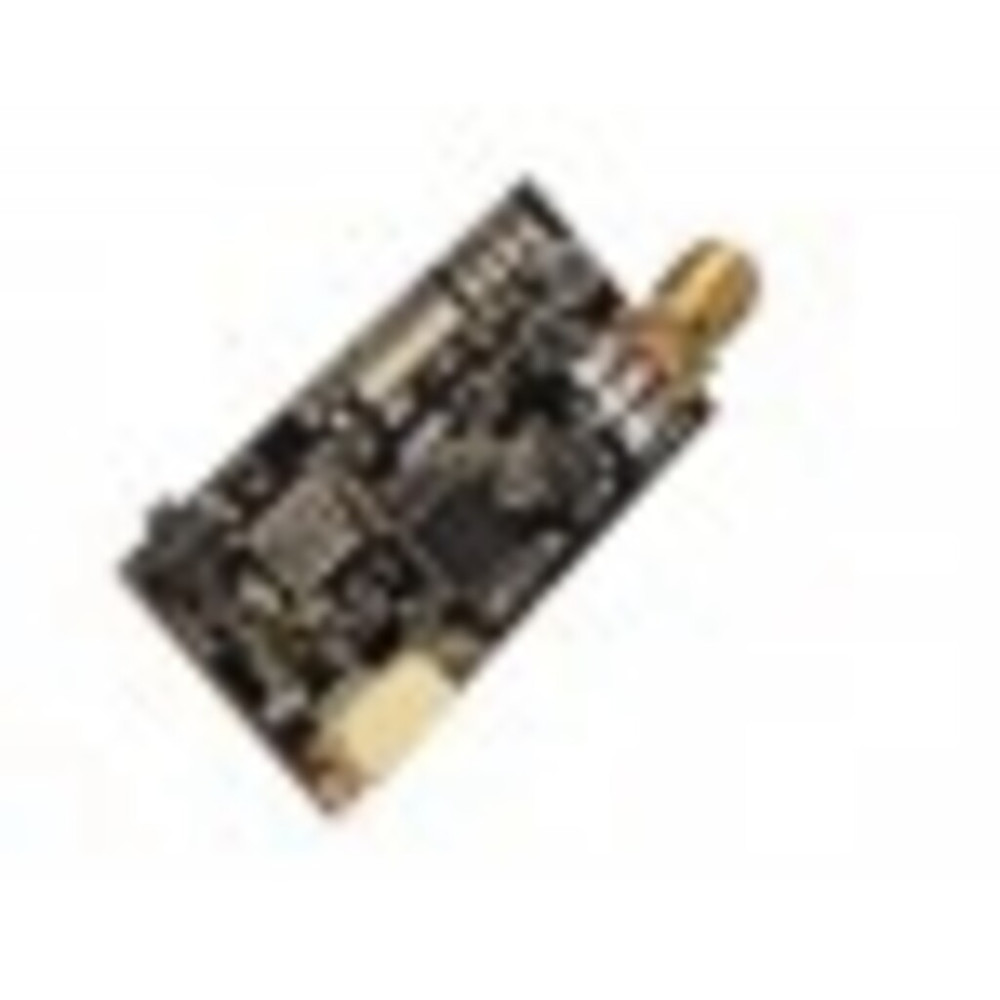

MR APM 5.8G GOPRO MINI TRANSMITTER TS250
- Código: 211130
- Marca: GABA HOBBY
- Estoque: Disponível
-
$39,00
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Description:
Brand Name:
Item Name: 5.8G 250mW Transmitter
Item NO.: Light L250
Frequency: 5.6-5.9GHz
Voltage Input: 3.5-5.2V
Send Power: 250mW
Work Current: 360mA/3.7V
Work Temperature: -20~+85℃
Video Bandwidth: 8M
Audio Encoder: 6.5M
Connector: USB video conenctor(to Gopro,support Hero 3 and Hero 3+)
Size: 40.8 x 21 x 8mm
N.W: 7g
Features:
Super light: 7 grams
With 32CH, and new LED show you with frequency you are working at.
Direct connect to GH3 and GH3+
Work on 3.7V one cell battery, you can use tiny camera to suport it work for long time, i.e.:500mAh work for 1.3hrs
SMA connector, we suggest you to choose the short type of Clover Leaf Antennas
A soft 4 pin cable will be arrange for FPV use. You can have other source of video in.
Great to work with DJI 2-Axis and 3-Axis Brushless Gimbals. Use a sticker to stick battery to the back of the gimbal to get balance.
Key Part:
Long Press: press and last for 3 sec, and the band will change following A-B-E-F circle, and CH always go to CH1 for next band.
Short Press: CH goes 1-2-3-4-5-6-7-8 and circle/
Time Setting:
2. Open the text file and type in the current date and time in the following format: yyyy-mm-dd hh:mm:ss. For example, 2014-09-30 17:30:00
3. Save the text file, power up the camera to update time.
4. The text file will be automatically deleted when the updated is successful.
Package Included:
1 x Transmitter
1 x 4 Pins Connecting Cable
1 x User Manual
DETAILS
The Light 250Mw (L250) is made for the GoPro camera and DJI Phantom 2. It connects directly to the GoPro camera via the USB port (Support GoPro Hero 3 and 3+). It comes with a SMA connector for easy hookup to many different 5.8GHz antennas.
FEATURES
Super light: 7 grams (without antenna)
With 32ch, and new LED show you with frequency you are working at.
Direct connect to GH3 and GH3+
Work on 3.7V one sell battery, you can use tiny camera to support it work for long time, i.e.: 500mAh work for 1.3hrs
SMA connector, we suggest you to chose the short type of Clover Leaf Antennas
A soft 4pin cable supplied for FPV use, which allows for other video sources if you choose.
Power voltage regulator board allows 2-4s batteries to power the transmitter, automatically steps it down to 3.7v.
SPECIFICATIONS
Frequency: 5.6-5.9GHz
Voltage input: 3.5-5.2V
Send power: 250mW
Work current: 360mA/3.7V
Work temperature: -10-+85 °C
Video bandwidth: 8M
Audio encoder: 6.5M
Connector: USB video connector (to GoPro, Support H3 and H3+, DJI P2 VTX)
Weight: 8.2g
Size: 40.8mm * 20.6mm * 8 mm
