SPINNER 3 ALUMINIO GREAT PLANES GPMQ4556

  • $35,00

Compartilhar

Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.

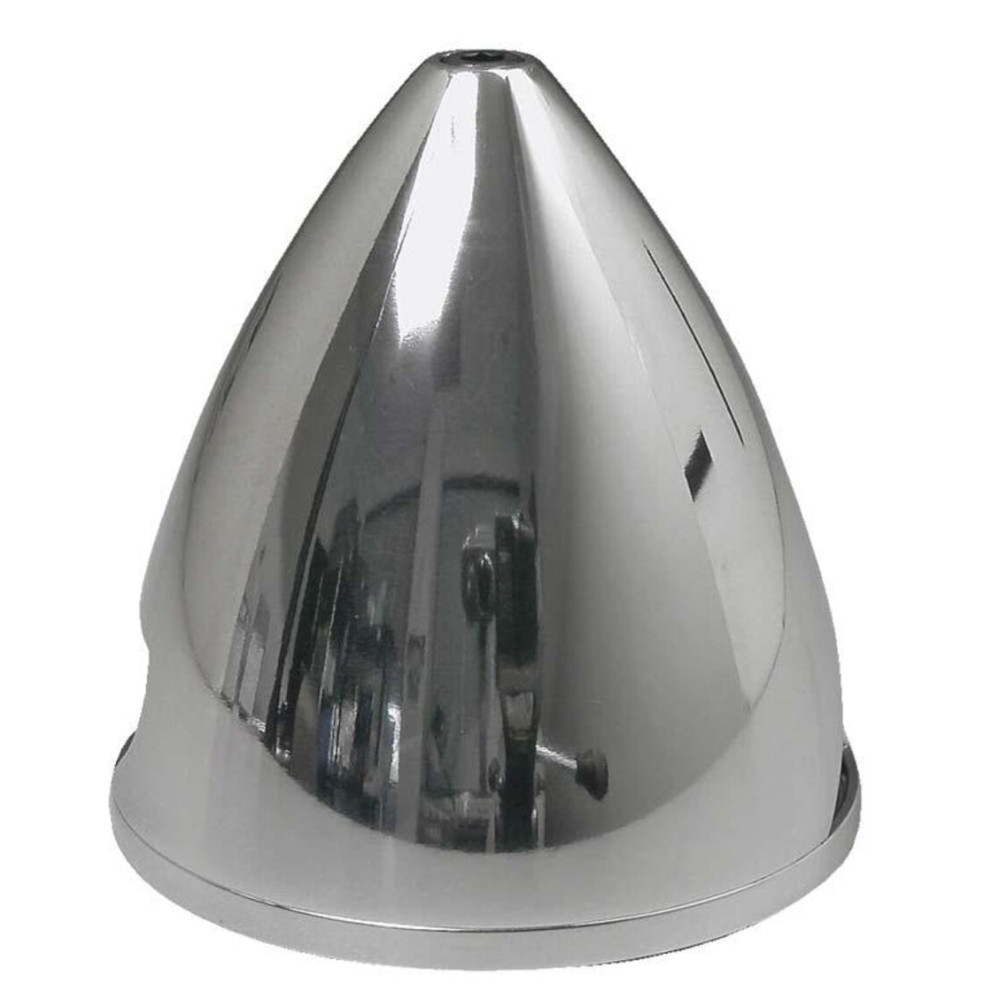

This is a Two-Blade Aluminum Spinner w/Aluminum Backplate from Great Planes.



FEATURES:

Machined For Accuracy, Then Polished To A Gleaming Finish.

Easy To Install, Having A Bolt-On Design, Centers Each Spinner Perfectly On Its Baseplate.

Spinner Cone Is Recessed To Mate Into the Spinner Backplate. The Rear Of The Spinner Is Flat, Without An Overhanging Cone.

Includes Black 10-32 Bolt That Holds Spinner Cone to Backplate.

Adapter Kits For Different Engine Sizes Are Available Separately.



INCLUDES:

One Aluminum Spinner Cone

One Aluminum Backplate (See Specs For Sizes)

One 10-32 x 1-1/2" Mounting Bolt

One Box with Installation Instructions and Safety Tip



REQUIRES:

One Spinner Adapter Kit



SPECS:

Spinner Backplate Diameter: 3" (76mm)

Spinner Backplate Mounting Ring Thickness: 3/16" (4mm)

Spinner Backplate Hole Diameter: 3/8" (9.5mm)
(The Adapter Kit Will Contain An Aluminum Bushing To Fit The Crankshaft Size.)

Length From Back Of Backplate To Front Of Cone: 3" (76mm)

Height Of Propeller Slot:  13/16" (21mm)

Length Of Propeller Slot: 1-1/16" (27mm)



COMMENTS:

Warning: Failure To Follow The Instructions Printed On The Box May Cause The Propeller To Separate From The Model.

If The Spinner Cone Touches The Propeller At Any Point, Use A File Or MotoTool To Relieve This Area.

Spinner Adapter Kit To Use Will Be Determined By Engine Crankshaft
