SPINNER 2 1/2 ALUMINIO G.PLANES GPMQ4554

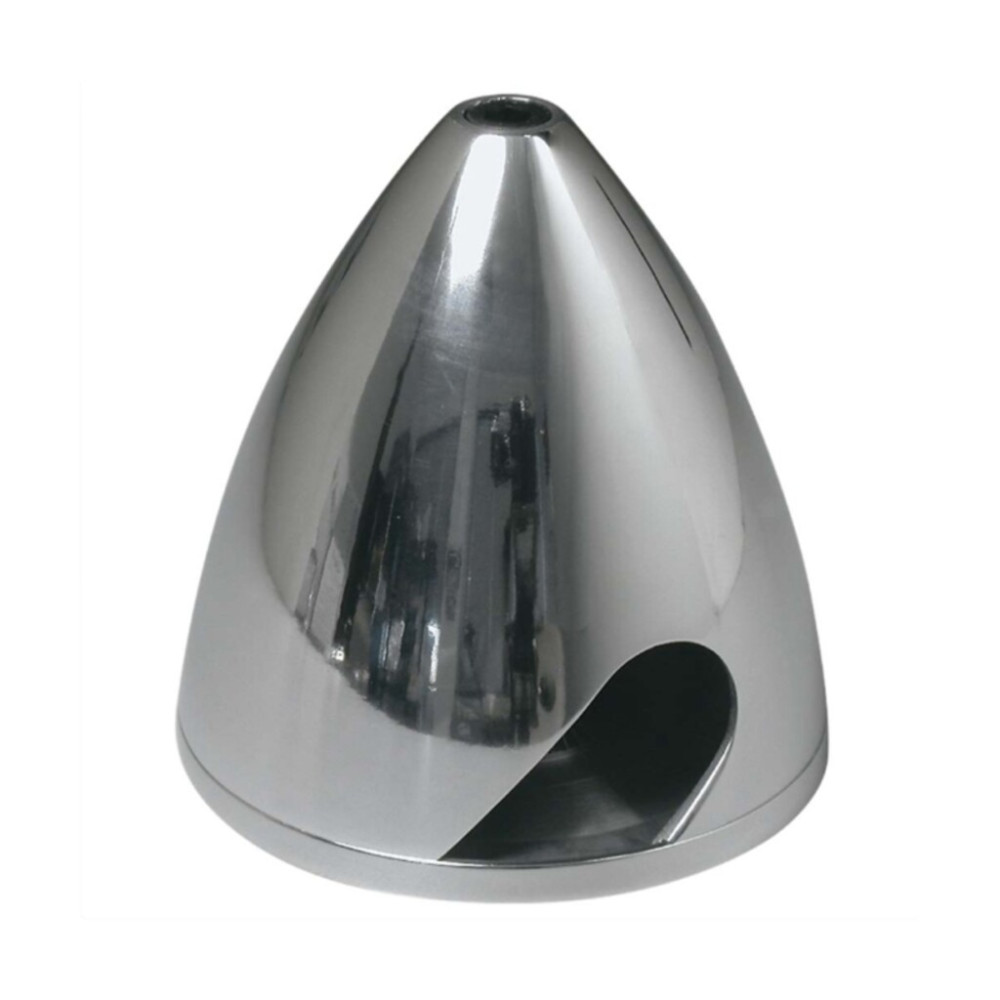

This is a Two-Blade Aluminum Spinner w/Aluminum Backplate from Great Planes.

FEATURES

Machined For Accuracy, Then Polished To A Gleaming Finish.

Easy To Install, Having A Bolt-On Design, Centers Each Spinner Perfectly On Its Baseplate.

Spinner Cone Is Recessed To Mate Into the Spinner Backplate. The Rear Of The Spinner Is Flat, Without An Overhanging Cone.

Includes Black 10-32 Bolt That Holds Spinner Cone to Backplate.

Adapter Kits For Different Engine Sizes Are Available Separately.

INCLUDES

One Aluminum Spinner Cone

One Aluminum Backplate (See Specs For Sizes)

One 10-32 x 1-1/2" Mounting Bolt

One Box with Installation Instructions and Safety Tips

REQUIREMENTS

One Spinner Adapter Kit

SPECIFICATIONS

Spinner Backplate Diameter: 2-1/2" (64mm)

Spinner Backplate Mounting Ring Thickness: 3/16" (4mm)

Spinner Backplate Hole Diameter: 3/8" (9.5mm)
(The Adapter Kit Will Contain An Aluminum Bushing To Fit The
Crankshaft Size.)

Length From Back Of Backplate To Front Of Cone: 2-1/2" (64mm)

Height Of Propeller Slot: 3/4" (19mm)

Length Of Propeller Slot: 7/8" (22mm)

COMMENTS

Warning: Failure To Follow The Instructions Printed On The Box May Cause The Propeller To Separate From The Model.

If The Spinner Cone Touches The Propeller At Any Point, Use A File Or MotoTool To Relieve This Area.

Spinner Adapter Kit To Use Will Be Determined By Engine Crankshaft
