INTER.FUTAB H DUTTY JUMBO SWH16 FUTM4387

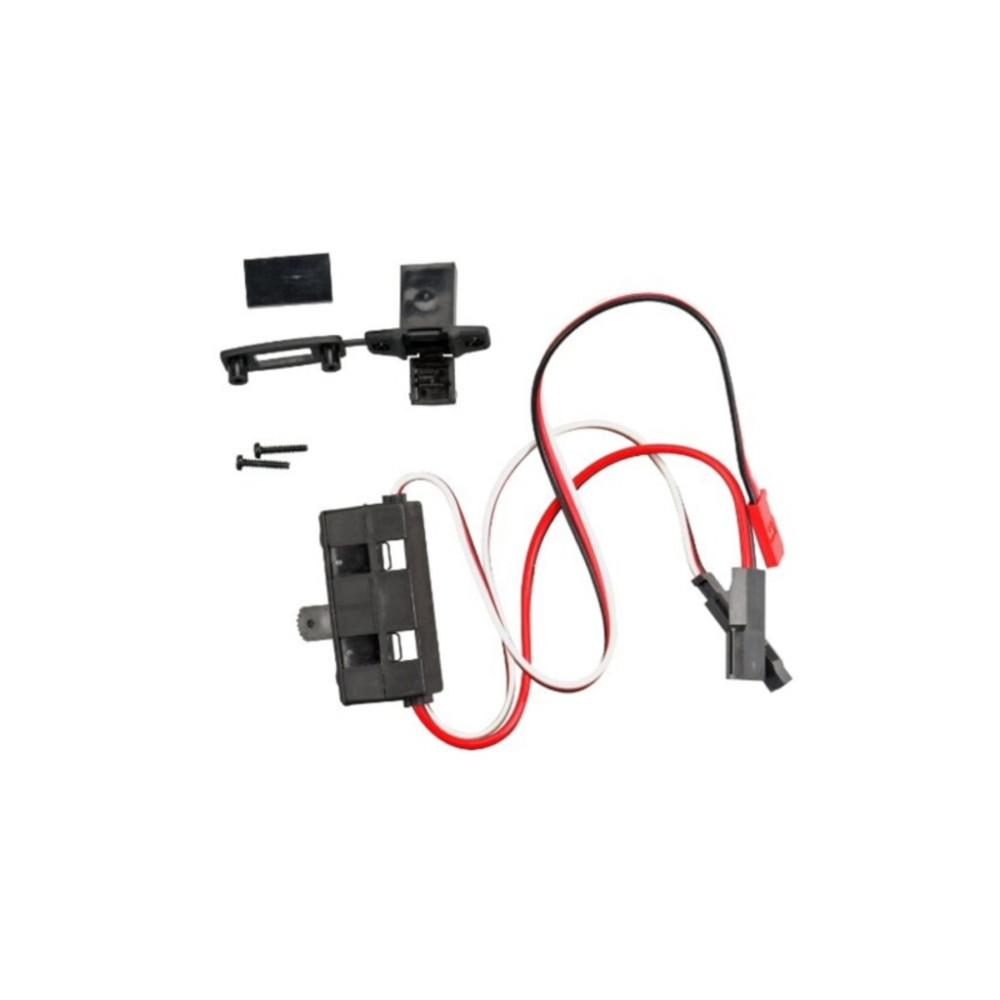

This is a Heavy Duty ON/OFF Switch Harness with Futaba J Connectors and Female J charging lead.

FEATURES:

• Pro Series heavy-duty radio accessories. New, custom-designed connector offers extra flight insurance with a secure "click-lock" feature that guards against connectors vibrating loose. Gold-plated terminals improve conductivity and prevent oxidation for longer lifespan. Heavier, 20-gauge wire handles higher current loads with ease. Female charge lead and male connectors come pre-installed. Custom-designed  housing has top AND side mounting tabs for adapting to a much wider range of applications.

INCLUDES:

• One Heavy Duty ON/OFF Switch Harness with Futaba J Connectors and Female J charging lead.

SPECS:

• Wire Gauge: 20AWG
• Length: 39mm (1.5")(overall including side mounting flanges)
• Width: 12mm (0.5")
• Height: 22mm (0.9")(not including slider switch)
• Wire Color Codes
• Black: Negative
• Red: Positive
• White: Signal (Polarity tab is on the Signal side)

COMMENTS:

• Female charging lead fits into the GPMM1000 for recharging on-board batteries without removing them from the airplane or even having to take off the wing.
