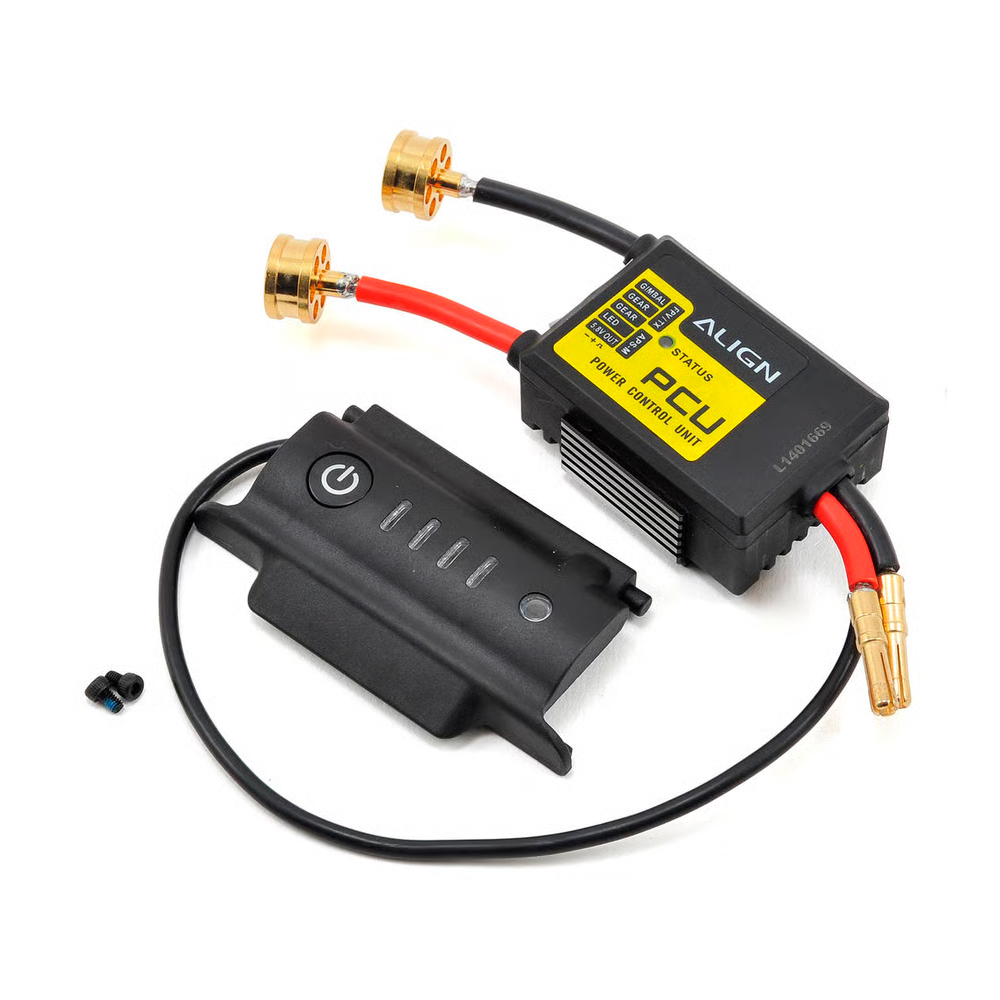

ALIGN PCU POWER CONTROL UNIT HEBPCU01T

Specification:

•  Suitable for M470 / M480L / M690L.
• Must with APS-H. Can be used with OSD+FPV Video Transmitter, G2/G3 Gimbal, Retractable Landing Gear, External LED Status. Intelligent Power Control Unit (PCU) - acts as the centerpiece for power and signal management, distribution and control. With a single battery, the system distributes power to the engine, flight control, gimbal, retract, downlink system, etc. Furthermore, it integrates all signals between APS-H, G2/G3 gimbal, OSD, and the data downlink system. It also controls the gimbal's panoramic photo mode, fix point photo mode, and retract system.Automatic shutdown system in 3 minutes after aircraft landed and remain stationary. The PCU system provides the safest and most reliable management of all power and signals in the multicopter.
• Input voltage: 13.2V ~ 25.2V (4S ~ 6S Li-Po)

Frequency:

• Operating: 500KHz

Temperature

• Operating: -5°C ~ 45°C - Dimension: 62x35x26mm
• Weight: Approx. 94.56g
• M480 Multi-purpose battery cover x 1
• Multicopter 4MM Gold Connector (Male) x 2 (φ4.9x20mm)
• Multicopter 3.5mm Female Terminal x 2 (φ2xφ14.4x12.5mm)
• Screw socket - Nylok x 2 (M2.5x4mm)
