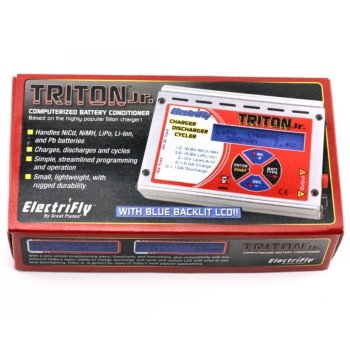

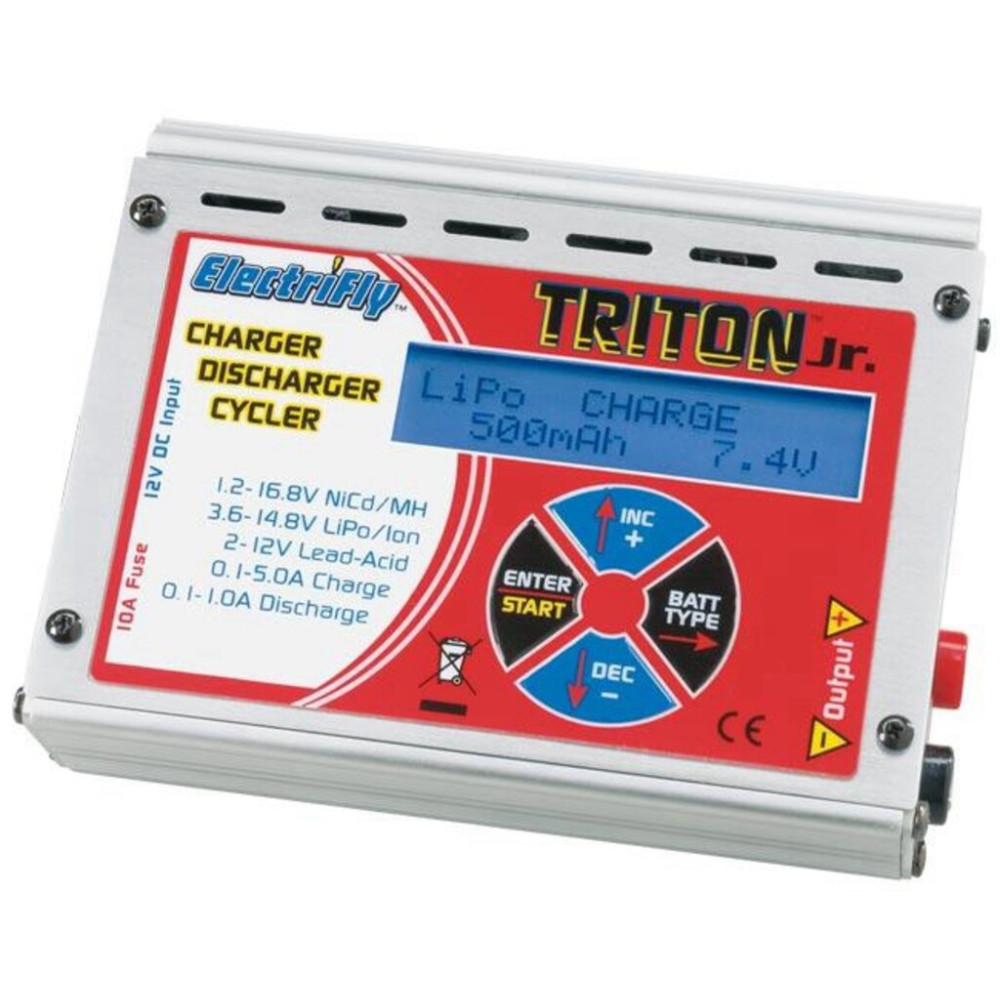

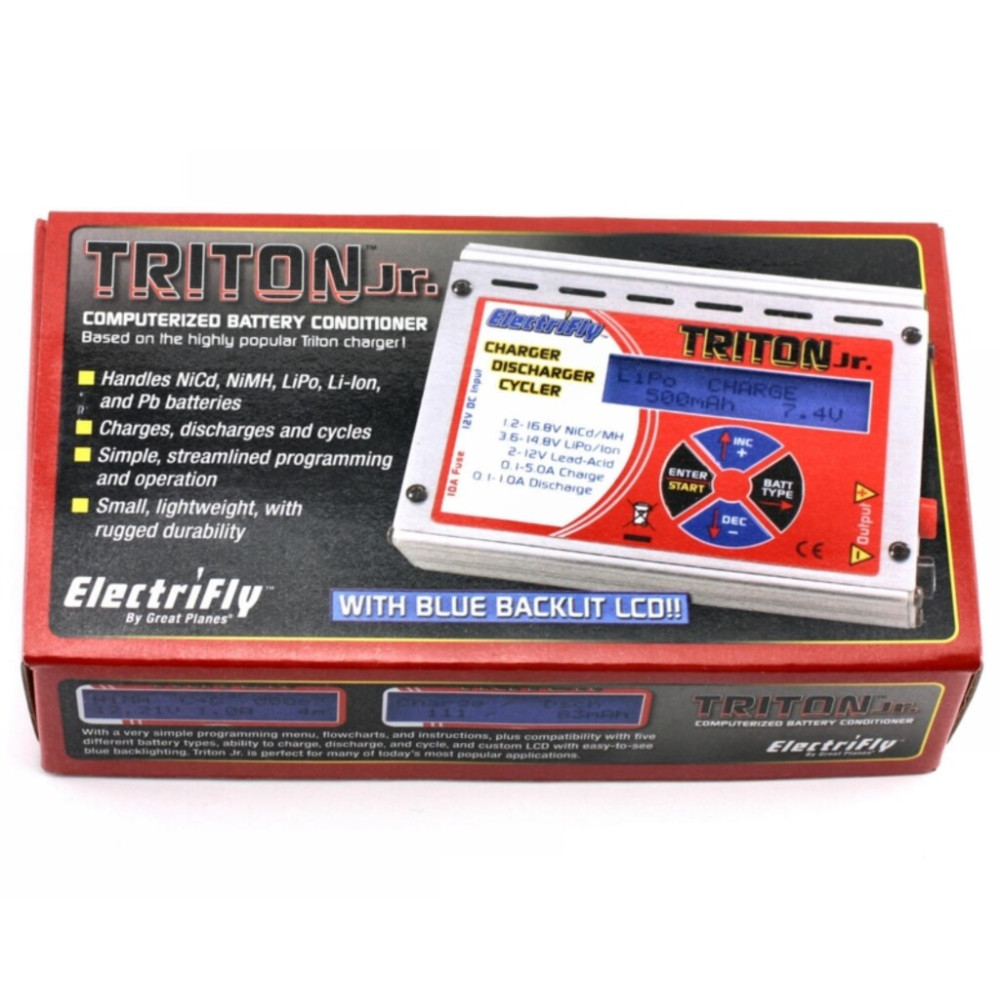

TRITON JR DC COMPUTER CHARGER GPMM3152

The little charger with BIG features!





Now you can get a charger with much of the versatility of the Triton — for less! The Triton Jr. has many of the same basic features of the original, including the ability to charge, discharge, and cycle, and can be used with NiCd, NiMH, LiPo, Li-Ion, and Pb batteries. It's smaller in size and lighter in weight, so it's easier to transport, and perfect for smaller-sized electric flight applications. Sell the Triton Jr. as an opportunity for R/C pilots on a budget to enjoy the quality, performance and precision that modelers across the country have trusted for years!



Ideal for small and large electric aircraft and heli batteries, Tx and Rx packs and field batteries.



Charge at up to 5 amps, discharge up to 1 amp — or cycle up to 5 times.



Handles up to 14 NiCd or NiMH cells, or 4S LiPo packs.



Features a rugged 4-direction membrane touchpad — and a very simple programming menu.



The blue backlight on the 2 x 16 LCD screen is a feature highly requested by modelers.



Unit is enclosed in a durable aluminum case.



Input Voltage: 10-15V DC



Battery Types, # of cells:

1-14 NiCd/NiMH

1-4 LiPo/Li-Ion (3.6 or 3.7V cells)

2, 4, 6, 8, 10, 12V Pb



Fast Charge Current:

0.1-5.0A NiCd/NiMH (0.1A step, 63W max.)

1C rating LiPo/Li-Ion (63W max.)



Peak delay at start: 3 minutes fixed



Discharge Current: 0.1-1.0A (0.01 step, 5W max.)



Cycle count: 1 to 5



Battery Memory: one



Display Type: 2 x 16 LCD, blue backlight



Case Size: 4.7 x 3.6 x 1.2 in (118 x 92 x 30 mm)



Weight: 13.1 oz (371 g)





Charges 1-14 Nickel-Cadmium or Nickel-Metal Hydride cells, 1-4 Lithium-Polymer or Lithium-Ion cells (LiPo or Li-Ion), or 2-12V lead-acid batteries. (Pb) Precision "Zero DeltaV" Peak Detection for NiCd and NiMH batteries "Constant Current/Constant Voltage" charge method for Pb and LiPo/ Li-Ion batteries



.1 - 5A adjustable Charge Current, limited to 1C rating for LiPo batteries



.1 - 1A adjustable Discharge Current Automatically sets TRICKLE Charge Current at



1/20th the Fast Charge current setting (NiCd/MH only) Adjustable Discharge Cutoff Voltages for NiCd/MH, pre-set voltages for Pb and LiPo/Ion Cycles NiCd and NiMH batteries from 1 to 5 times Durable membrane touchpad input controls, and very simple programming menu Easy to see, 32 character (2x16) LCD with Blue back-lighting that displays Input and Output Volts, Peak Volts, Average Discharge Volts, Charge and Discharge Capacity, Currents and Time, and error messages Status screen constantly updates Capacity, Battery Voltage, Current, and Time during use Audible beeper aids in programming and notifies of function changes Safety features include Fast Charge Safety Timer, Current Overload and Reverse Polarity Protection Small and lightweight, with a rugged extruded aluminum case for long-lasting durability and excellent heat dissipation One year warranty





(1) TRITON Jr. (1) Instruction Manual





Input Voltage: 11 - 15V DC



Input Connections: Large alligator clips



Number of Outputs: One Battery Types, # Cells: 1-14 NiCd/MH 1-4 LiPo or Li-Ion (3.6 or 3.7V cells) 2, 4, 6, 8, 10, 12V Pb (2V per cell)



Fast Charge Current: .1-5A NiCd/MH (.1A step, 63W max.) 1C rating LiPo/Li-Ion (63W max.)



Fast Charge Termination: "Zero DeltaV" Peak Detection NiCd/MH "CC /CV" for Pb and LiPo/Ion



Peak Sensitivity: 8mV fixed NiCd, 5mV fixed NiMH



Peak Delay at Start: 3 minutes fixed TRICKLE



Charge Current: Charge current/20 (NiCd/MH only)



Fast Charge Safety Timer: NiCd/MH 1.5 hours, LiPo and Pb 2 hours



Thermal Cutoff: Not available



Discharge Current: .1-1A (.01 step, 5W max)



Discharge Cutoff Voltage: NiCd/MH .1-16.8V (.1 step) Pb fixed at 1.8V per cell Li-Ion/LiPo fixed at 3V per cell



Cycle Count: 1 - 5



Cycles Battery Memories: One Programming Controls: Membrane touchpad, four buttons



Display Type: 2 x 16 LCD, Blue backlight



Displayed Info: Input and Output Volts, Peak Volts, Average Discharge Volts, Charge and Discharge Capacity, Currents and Time



Errors Audible Indicators: Beeper



Output Connectors: Banana jacks



Case Material: Extruded aluminum



Current Overload: 10A spade fuse



Case Size: 4.7 x 3.6 x 1.2 in (118 x 92 x 30mm)



Weight: 13.1oz (371g)
