HPI FLUX TORK 2200KV MOTOR BRUSHL 100685

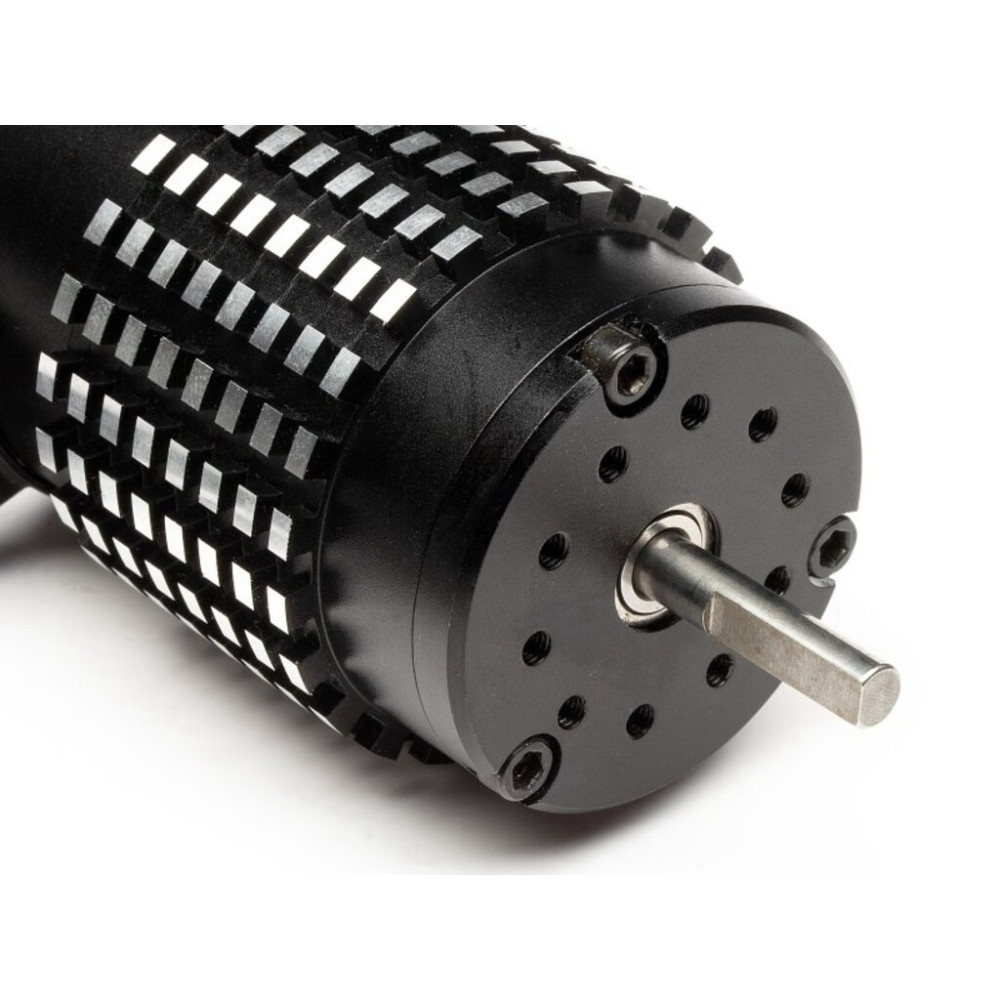

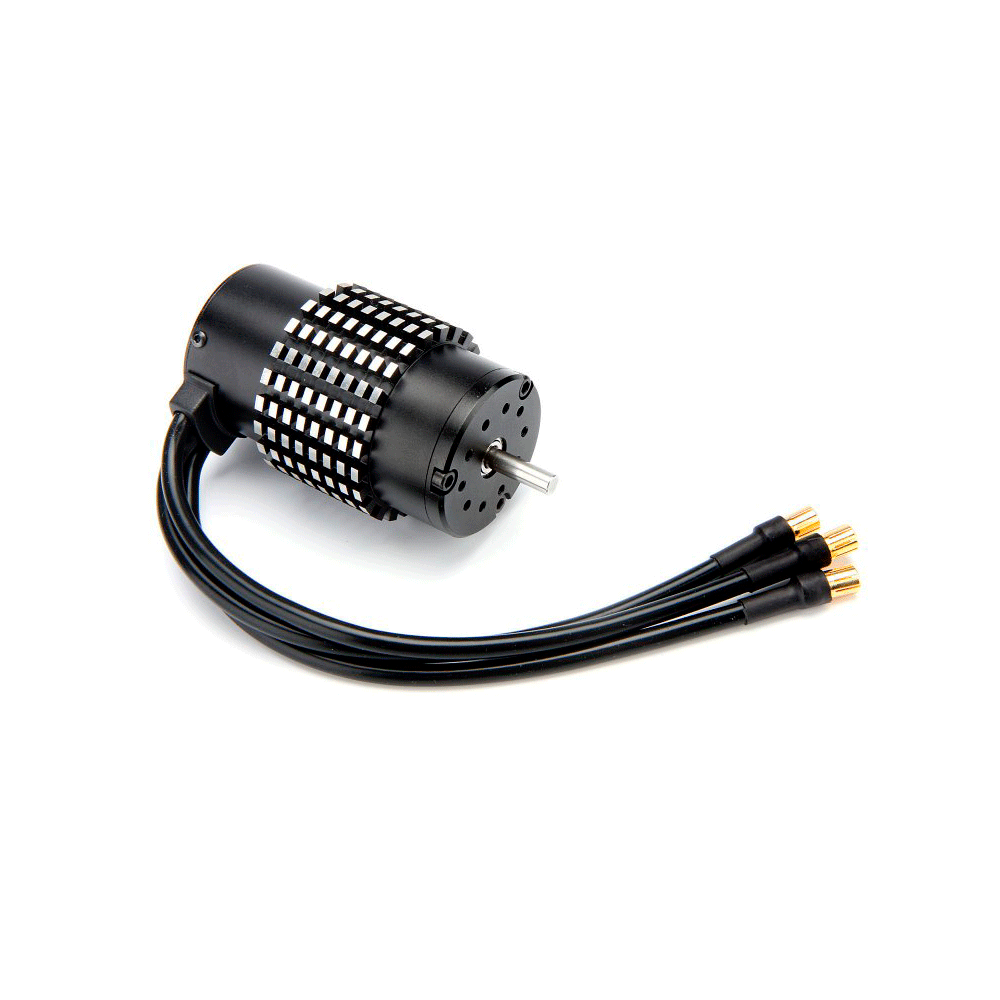

#100685 - FLUX TORK 2200Kv BRUSHLESS MOTOR

2200 rpm/volt / Use with FLUX BLUR ESC

Specifications:

• Max Input Volts: 25.2V
• Amp Rating*: 120A
• Weight: 424g (15 oz)
• Motor Diameter: 39.98mm (1.6")
• 41.78mm (1.6") with fins
• Motor Length: 75.18mm (3")
• Shaft: 5mm (0.20")
• Bearings: Oversize ABEC-1 front and rear

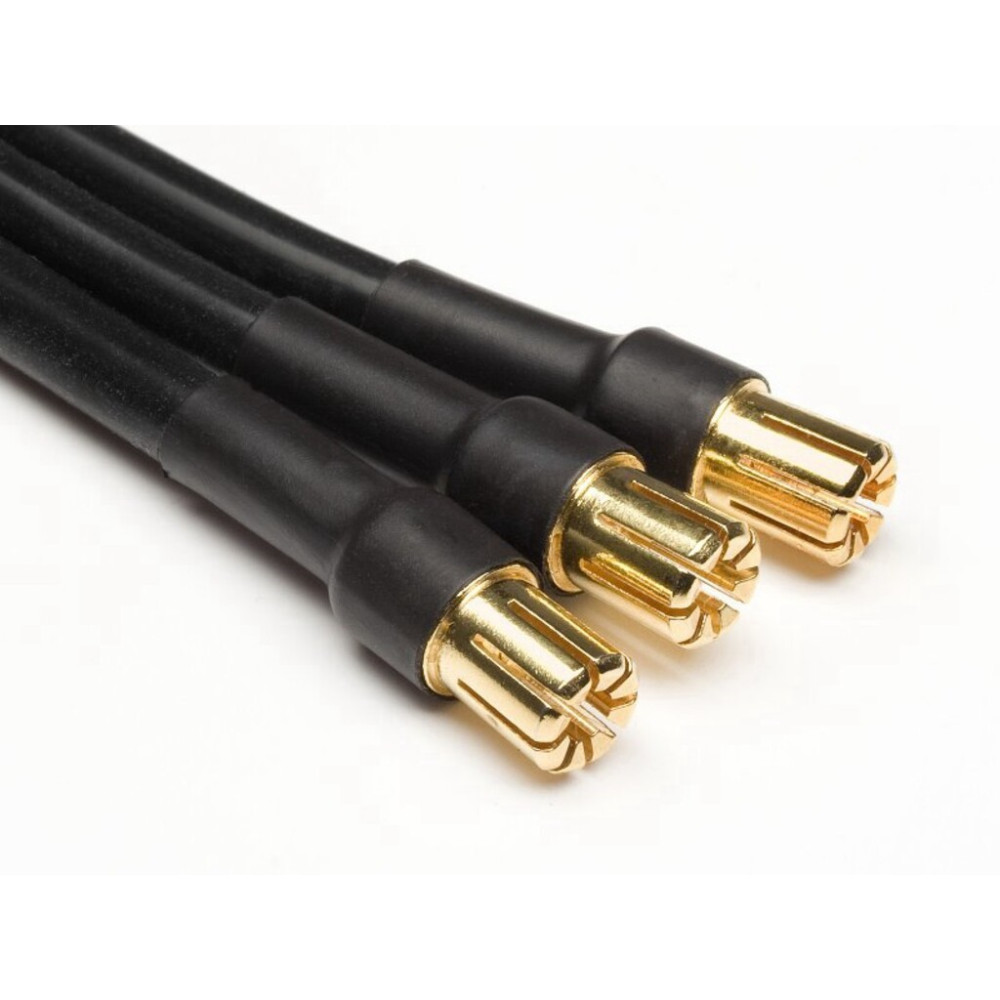

• Connector: Female bullet type, 6.5mm

The Flux Tork 2200 motor is the centerpiece of the Savage Flux HP, and provides the jaw-dropping power that allows it to do standing backflips on level ground, and easy double backflips off even medium-size jumps! Please note: The Flux Tork 2200 must be used with a speedo that can handle the immense power it requires, the #100685 Flux Blur is the perfect match!

The Flux Tork 2200 features the coolest motor cases we've ever seen, with massive machined cooling fins that really make it look the part of an all-out power plant! With a 5mm motor shaft it can fit the upcoming optional pinion gears so you can get even MORE top speed for those insane runs, or gear it down a bit for increased acceleration on the track. The ideal speedo match for the Tork 2200 is the #100685 Flux Blur speedo, the most powerful brushless speed controller we could find. With the ability to handle twin 3S LiPo batteries (that's a total of 6S LiPo power!) it can deal with anything the Tork 2200 motor can dish out! 6.5mm bullet connectors secure the motor wires for loss-free connection to the 12-gauge wires, and to connect to each battery pack we've attached real Dean's connectors for zero power loss and total efficiency. We figured why re-invent the wheel and release our own connector when the best is already available? Topping off the versatility of the Flux Blur speedo (literally) is an integrated cooling fan, which allows the speedo to operate at its ideal temperature.

Finally, you have the ability to easily connect it to your computer for total programming control! With our #100573 USB Programming Kit you can connect the Blur to any Windows-based PC to control all the various facets of its power delivery, braking, throttle curves, battery cut-off and much more. You can also save various profiles to have profiles for racing, insane speed runs, stunts, fun running and more.

Add the range of optional Flux Tork pinion gears for increased tuning and even more insane acceleration!

Motor and Battery Combinations

The Flux Tork 2560Kv Brushless Motor requires very powerful batteries to get the most out of it - please make sure that you use the right combination! HPI highly recommend the use of LiPo batteries above 4000mAh and 20C. Using batteries with lower ratings, or the use of lower quality LiPo batteries, may cause damage to battery and/or speed control. Using batteries below the specified ratings may void the warranty of the speed controller and/or batteries. The term Kv refers to the number of RPMs that the motors will try to deliver per volt applied, and is a standard term for brushless motor power.
