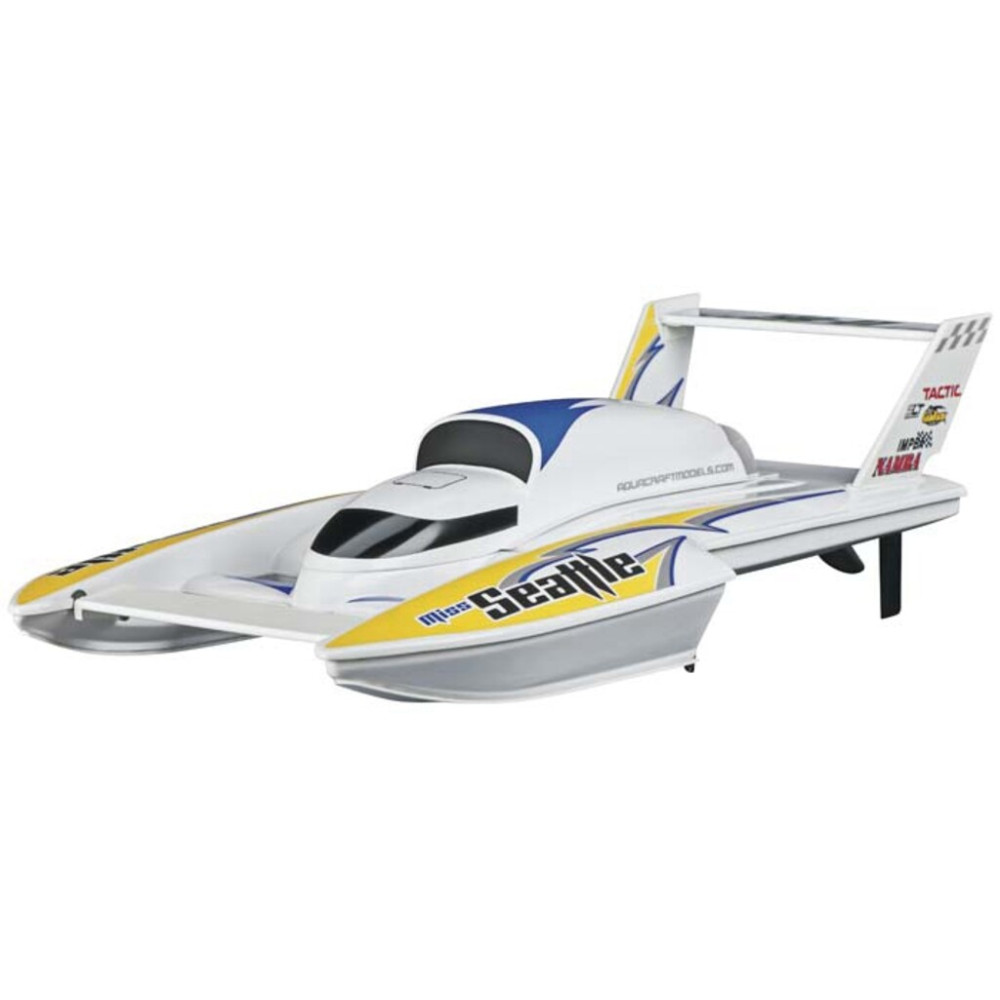

LANCHA MISS SEATTLE HYDROPLANE AQUB1822

FEATURES

• Hull: ABS plastic white in color with decals
• Radio: Tactic TTX300 transmitter, TR325 receiver, steering servo
• Motor: 6 pole 2200kV brushless inrunner with cooling jacket, also features cinch type motor coupler to reduce strain on drive system
• Electronic Speed Control: 30A 3S LiPo ready, 9.6V Stutter Bump
• Propeller: Two-blade 30mm FRP
• Rudder: Break-away wedge design
• Warranty: Ninety day limited warranty through AquaCraft beginning at date of purchase. This warranty does not cover damage caused by crashes, abuse, misuse, alterations, or accidents.

INCLUDES

• Miss Seattle U-16 Unlimited Hydroplane with Motor, ESC, Radio, Propeller and Instruction Manual

REQUIREMENTS

• AA Battteries: Four for transmitter
• Battery: 11.1V LiPo at least 1000mAh
• Battery Charger: Compatible with selected battery
• LiPo charging bag and shore equipment

SPECIFICATIONS

• Boat;
• Length: 16.75" (425mm)
• Overall Length: 18" (458mm)
• Width: 8.5" (216mm)
• Height: 4" (102mm)
• Weight: 14.4oz (408g) less battery
• Motor;
• kV Rating: 2200 kV @ 11.1V
• Operating current: 1.4 A, 8V/ DC (without loading)
• Input: 8 to 14V
• Max Current: 28 A /15 Seconds
• Shaft diameter: 1/8" (3.2 mm)
• Motor resistance: 50 miliamps
• Dimensions: 1.1 x 1.2" (27.5 x 30mm)
• Weight: 2.5oz (71g)
• ESC;
• Rated Current: 30A
• Motor Connector: 3.5mm bullet plugs
• Wire Gauge: 14g
• Warning System: 9.6V Stutter Bump
• LVC: 9V
• BEC Max Current: 2A
• PWM: 8K
• Dimensions: 1.8 x 0.9 x 0.4" (45 x 24 x 9mm)
