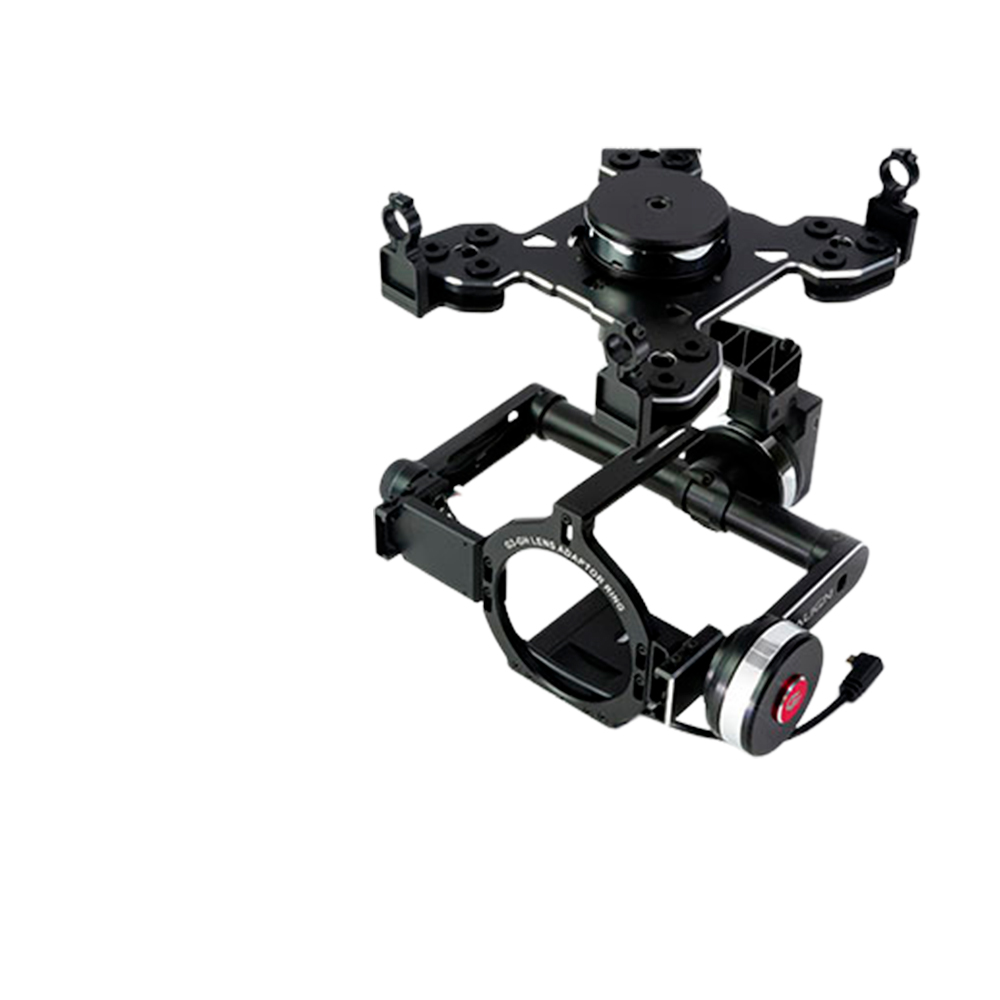

MR ALIGN GIMBAL G3-GH 3 AXIS RGG301XT

ALIGN GIMBAL G3-GH 3

Align G3 gimbal features an advanced control system with superior computational power. The highly integrated design allows for quick conversion between multicopter use and hand held use. Adjustable balance point on all 3 axis for greater camera compatibility, while the high precision brushless motors provide excellent agility and stability. Built in HDMI/AV converter and RC receiver connectivity. Supports programmability through PC interface, or connectivity to iOS/Android smartphones through Bluetooth. Equipped with automatic calibration function during power up. Supports single RC transmitter mode through APS-M, or independent remote control of the gimbal through a dedicated RC transmitter, as well as remote shutter trigger and video start/stop control to capture the optimal footage through precise framing.

Features :

• Automatic calibration of the gimbal on power-up.

• Supports one radio control (multicopter control and nacelle control) or two radio controls in separate control.

• Multi-function flight modes. Each of the three axes can be controlled.
• Remotely controlled shutter trigger and video start/stop function.

• Built-in HDMI/AV converter function

•  Designed and developed to also be used by hand.

•  High Stability System, High precision thanks to the 3 axes.

•  Allows precise locking on an object to be filmed
•  Adjusted gain characteristic for PAN/ROLL/TILT. Support many DSLR cameras

• Supports Spektrum and JR satellite receivers

• Support Futaba S.BUS / JR X.BUS

•  Bluetooth configuration via IOS APP and Android application

• RoHS certified

G3-GH Gimbal/Camera/Lens Compatibility List (For Reference)

Terms of use:

• Voltage: DC 12V
• Current Draw: <500mA at 12V
• Maximum control:
  -PAN: 360°
  -ROLL: 30°
  - TILT: 90°
• Maximum rotation rate:
  -PAN: 60°/s
  -ROLL: 60°/s
  -TILT: 60°/s
•  Operating temperature: from -20 to +80°C
• Output voltage: 5V/ 0.5A
• Dimensions: 59.5x35x16.4mm

HDMI/AV Converter:

• Input Voltage: 3S(12V)
•  Consumption: 1800mW (12V/150mA)
• Compatible cameras: Panasonic GH3/GH4, Sony A6000 or equivalent.
• Supported output formats: 1080P / 50HZ/60HZ: 720P / 50HZ/60HZ: 576P / 50HZ/60HZ: 480P / 50HZ/60HZ: 1080I / 50HZ/60HZ: 576I / 50HZ/60HZ: 480I/ 50H Z/60HZ
•  Video format: NTSC (480I)
• Signal output resistance: 75 ohms

In the box:

• Assembled G3 nacelle
• Anti-vibration mount
• HDMI/AV converter
• Micro HDMI Signal Wire
