MR ALIGN OSD + FPV VIDEO TX HED00001T

Instruction:

- Suitable for M480L / M690L.

- Must with APS-M Flight Control System, PCU Power Control Unit Set, G2/G3 Gimbal.

- Provides flight data output function such as satellite count, battery voltage, flight time, latitude/longitude, altitude, horizontal distance, horizontal speed, vertical speed, and flight mode.

Specification:

- Selectable Channels 32 CH

- Operating Temperature -20ƒ~65ƒ

- Input Voltage DC 12V(3S)

- Transmitter Power 1.5W

- Dimension 64x43.8x29.5 mm

- Weight:

54.4g(w/o Antenna)

65g(With Antenna)

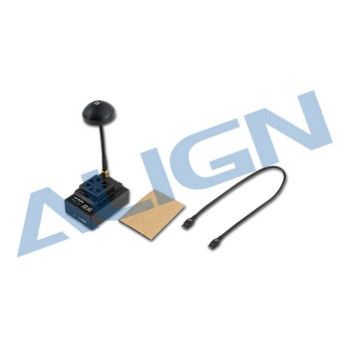

Content:

- OSD+FPV Video Transmitter x 1

- OSD Signal Wire x 1(Approx. 300mm)

- OSD+FPV Video Transmitter Double Sided Tape x 1
