DLE 120CC MUFFLER ONE HOLE LEFT DLEG1331/120Y31

This is the 1-Hole Left Muffler for the DLE-120cc Engine.

FEATURES:

• Aluminum construction
• Plastic muffler extension directs exhaust away from fuselage

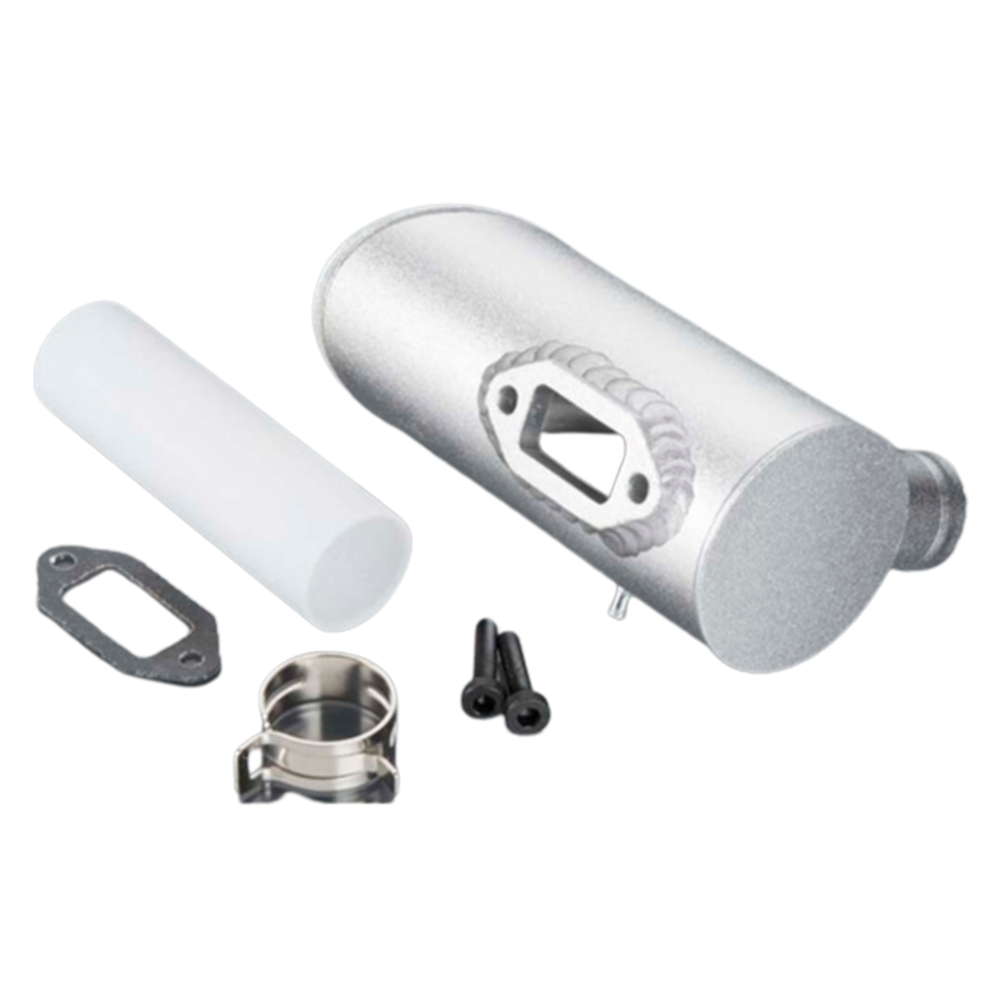

INCLUDES:

• 1-Hole Left Muffler
• Metal and Fiber Gasket
• Two 4.5x22mm Socket Head Cap Screws
• Muffler Extension with Compression Clamp

SPECIFICATIONS:

• Distance between Mounting Hole Centers: 1.65" (42mm)
• Muffler Body Diameter: 2.15" (54mm)
• Muffler Body Length: 5" (127mm)
• Outlet Pipe Diameter: 0.98" (25mm)
• Outlet Pipe Length: 1.2" (27.5mm)
• Muffler Extension Length: 3.75" (95.2mm)
• Muffler Extension Diameter: 1.10" (28mm)
