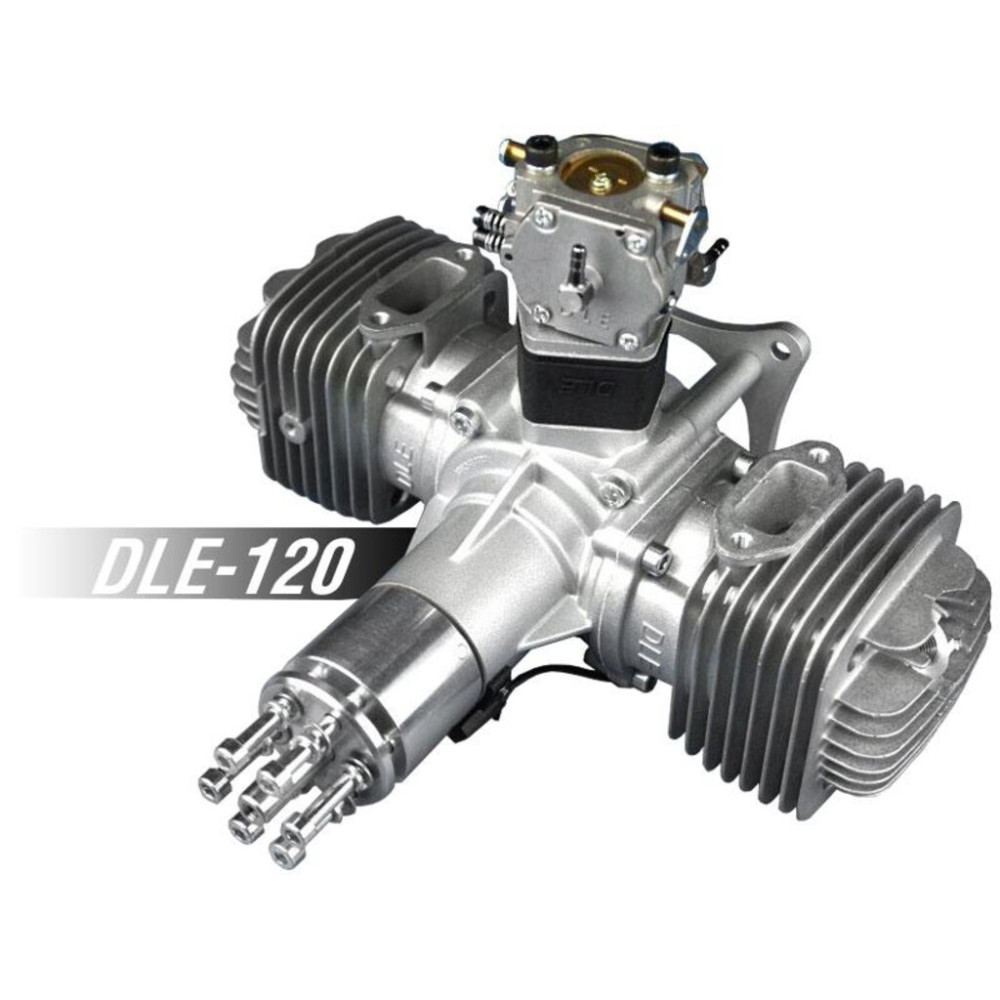

MOTOR DL ENGINE 120CC TWIN GAS DLE120

Specifications:
Stock Number: DLEG0120
Displacement: 120.0 cc (7.3 cu in)
Bore: 1.85 in (47 mm)
Stroke: 1.38 in (35 mm)
Total Weight: 6.38 lb (2.895 kg)
Output: 12 hp @ 7,500 rpm

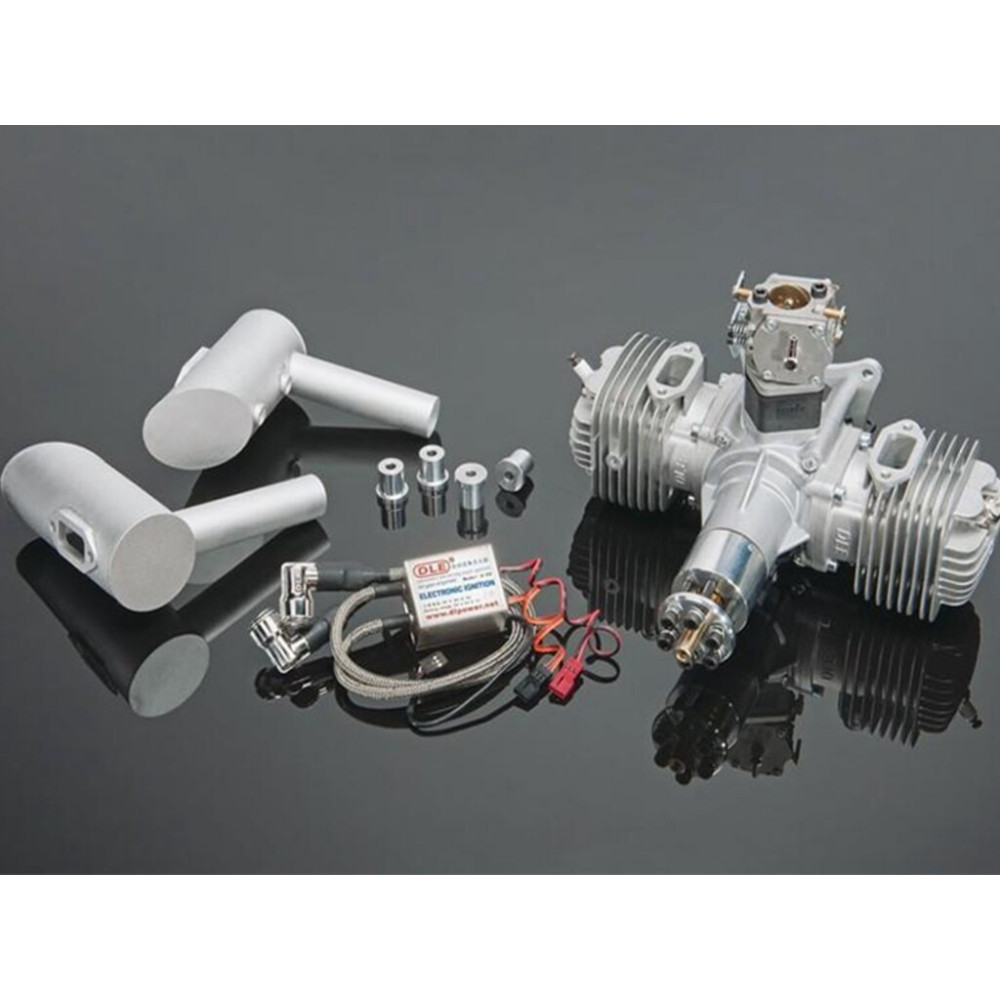

Includes: Electronic ignition module, mufflers, spark plugs, mount, standoffs, spiral wire wrap & connector safety clips
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Suggested Propellers: 26x10, 26x12, 27x10, 28x10

DLE-120 Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack (Voltage regulator required if LiFe or LiPo pack is used.)
Gas/Oil Mix: 30:1
Compression Ratio: 10.5:1
Replacement Spark Plug: DLEG1326
Static Thrust: 20.9 lb (9.5 kg) @ 328 feet altitude, 18.7 lb (8.5 kg) @ 1,800 feet altitude
Weight Breakdown: Engine: 5.34 lb (2.42 kg); Muffler 1: 3.6 oz (103 g); Muffler 2: 3.9 oz (111 g); Ignition Module: 5.3 oz (149 g); Miscellaneous: 4 oz (112 g)

Recommended Products:
HCAM6416 Hobbico LiFeSource 6.6V 1100mAh 10C LiFe Pack
XOAQ2710 Xoar 27x10 Beechwood Propeller

Recommended Options:
DLEG1326 DLE 12-Y26 Spark Plug DLE-120
FPWM1212 FlightPower FPRX 7.4V 2100mAh LiPo Battery
HCAM6426 Hobbico LifeSource 6.6V 1800mAh 10C LiFe Pack
HCAM6351 Hobbico HydriMax Ultra 6V 2000mAh NiMH Pack
FPWM0290 FLightPower 5A Voltage Regulator (if an LiFe or LiPo pack is used)
XOAQ2610 Xoar 26x10 Beechwood Propeller
XOAQ2612 Xoar 26x12 Beechwood Propeller
XOAQ2810 Xoar 28x10 Beechwood Propeller
