Key Features
- Top Selling High Torque Standard Digital Servo
- Strong Three-Pole Ferrite Motor
- Metal Gear Train with MP Gear Technology
- Dual Ball Bearing-Supported Output Shaft
- Standard Programmable Digital Circuit Provides Fine Resolution and Centering
In The Box

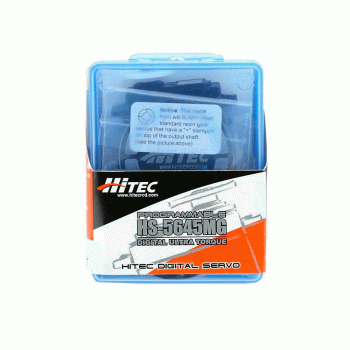

- (1) HS-5645MG Standard Digital High Torque Metal Gear Servo
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Overview
The digital version of our popular 645 is the HS-5645MG, featuring a programmable digital circuit and our custom MP/metal gear train technology. Perfect for larger airplanes and heli’s, the HS-5645MG will deliver higher resolution and torque than its analog brother.
Metal Horn (R-ML) Included
Metal Horn (R-ML) Included
Product Specifications
- Servo Type: Digital
- Servo Operating Voltage: 4.8 - 6.0V
- Max Servo Torque: 100-199 oz-in
- Maximum Servo Torque: 143.03 oz/in (10.3 kg/cm) @ 4.8V 168.03 oz/in (12/1 kg/cm) @ 6V
- Programmable: Yes
- Servo Size Category: Standard
- Bearing: Dual
- Bushing Or Bearing: Bearing
- Gear Type: Metal
- Maximum Servo Speed: 0.23 sec/60 deg. @ 4.8V 0.18 sec/60 deg. @ 6V
