MR RET VIDEO 5.8GHZ 2000MW 12V 13675

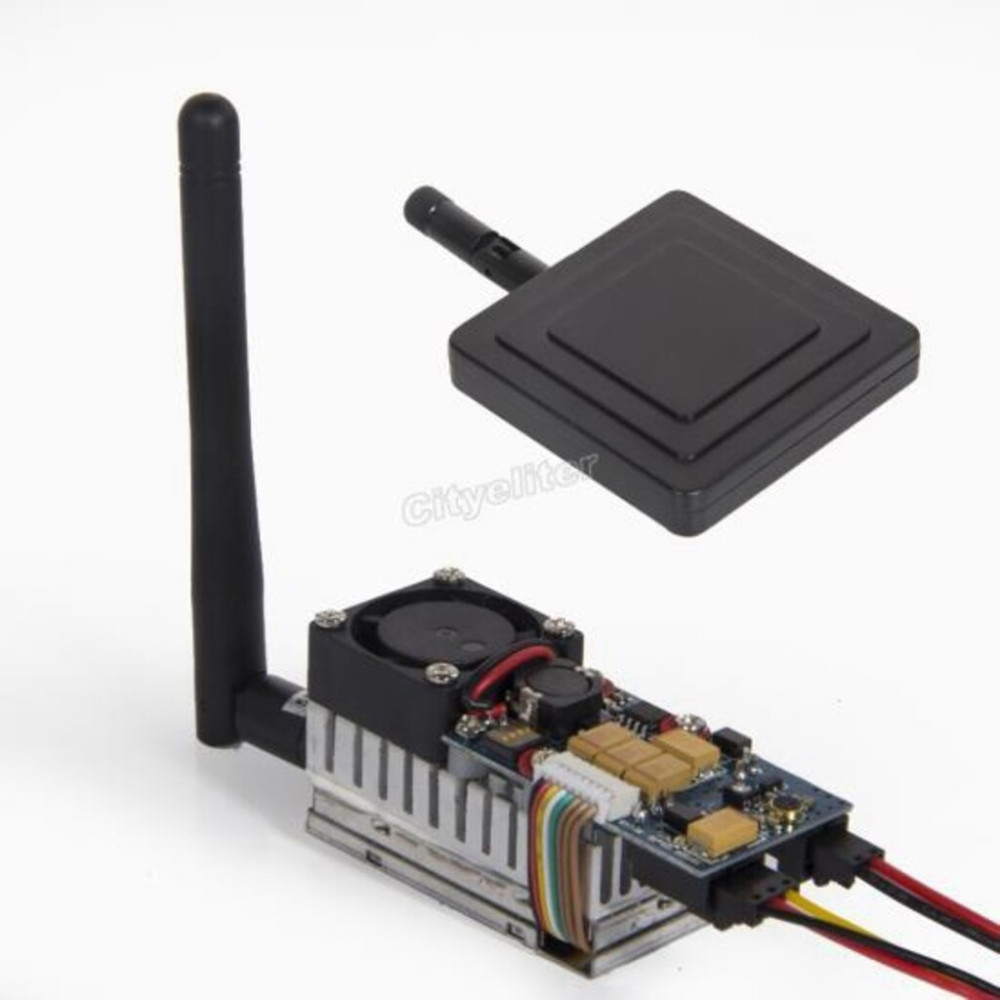

Transmitter:

1.Part number?TS582000

2.8 channla AV transmitter

3.DC in range: 12V/150mA(7.0~15V)

4. Operating temperature: -10~+85°c

Receiver:

1.Audio Output:1Vp-p 600 ω

2. Video Output :1Vp-p 75 ω

3. Power Supply :DC 12V

4. Operating temperature: -10~+50°c

5.Video lnput lmpedance:   75    Ohm

Channel frequency:

CH1 -5705-MHz            CH2 -5685-MHz        CH3 -5665-MHz        CH4 -5645-MHz

CH5 -5885-MHz            CH6 -5905-MHz        CH7 -5925-MHz        CH8 -5945-MHz

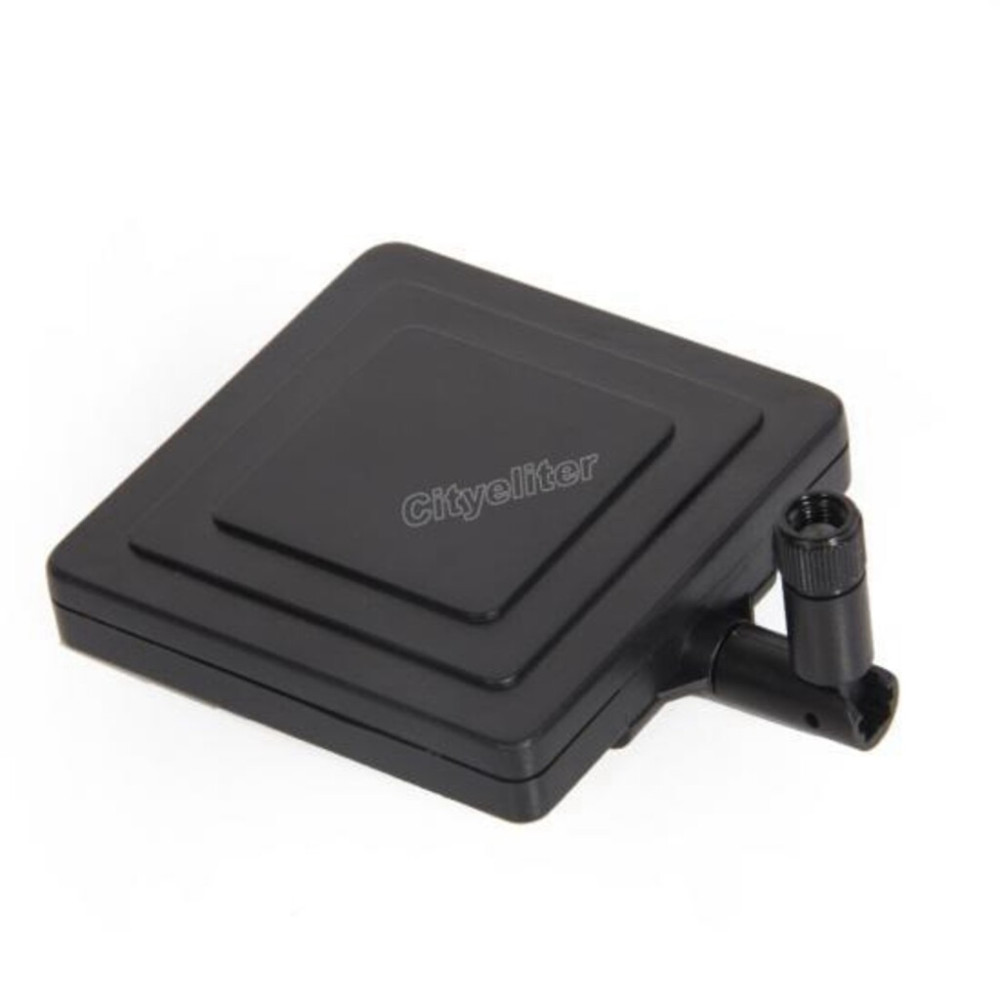

Anttena Descriptions:

This light-weight broadband frequency (5.6 to 5.9GHz) with high gain (11dBi) panel antenna

is a great passive Gain device to extand the transmission of any 5.8GHz wireless RF and Digital signal to a very long range.

• This antenna works with  FPV  5.8G 200MW transmitter,  Range will be up to above 3KM
• This antenna works with  FPV  5.8G 500MW transmitter,  Range will be up to above 6KM

 Product Specifications:

• Frequency:5600-5900MHZ
• Gain: 11dbi
• Horizontal radiationlobe:45degree
• Vertical radiationlone:30degree
• Standing wave ratio:< 2.0
• Input impedance: 50ohm
• Polarize way:Vertical
• Max.Power:50W
• Connector:RP-SMA

Applications:

• For Long Distance FPV Wireless Video Transmission
• WiMax, 802.11a WiFi Networks, and 802.16 WiMax Networks
• Public Wireless Hotspot
• Wireless LAN Systems

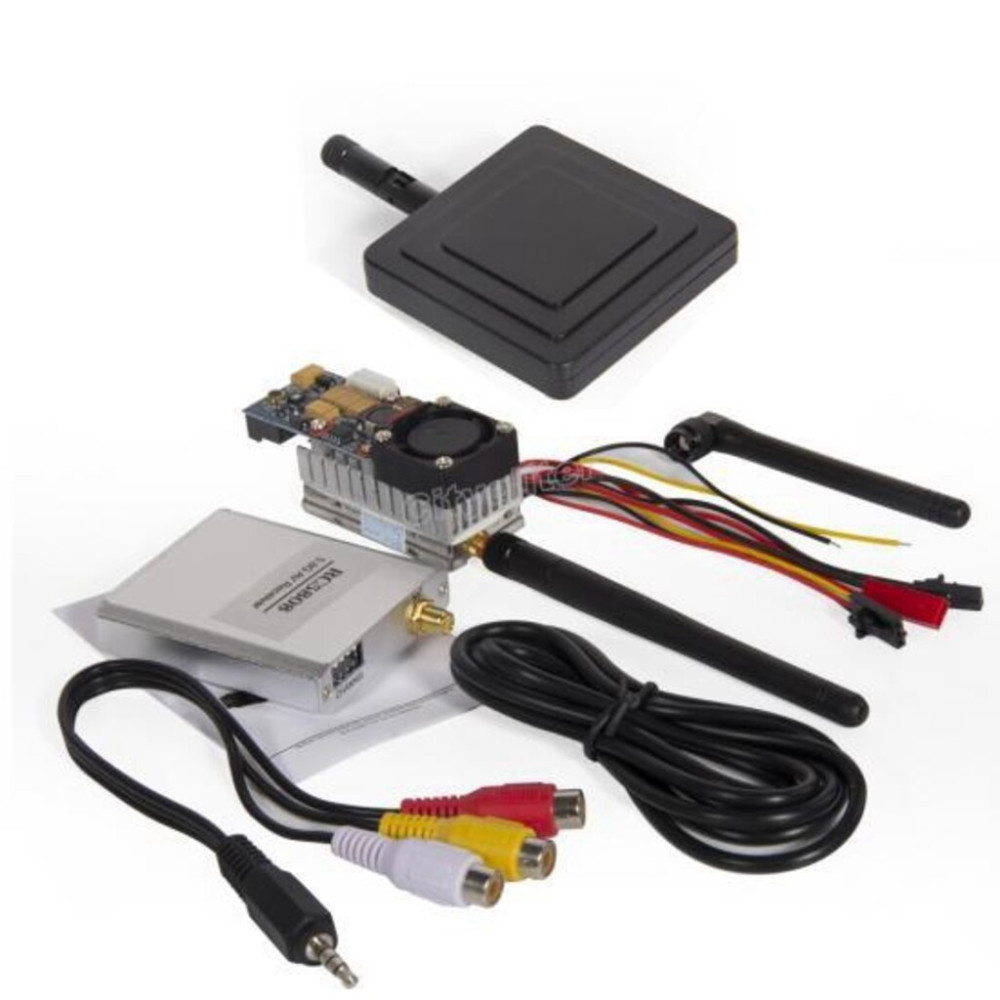

Package includes:

      1 X 5.8G wireless transmitter

      1 X 5.8G wireless receiver

      2 X 5.8G antennas

      1 X Power cable for transmitter

      1 X Power cable for receiver

      1x Connector and cable set

      1x Instruction book

      1x 5.8GHz 11dBi high gain Panel Antenna
