SEMI-TRUCK TAMIYA 1/14 RC KING HAULER BLACK EDITION KIT 56336

Description

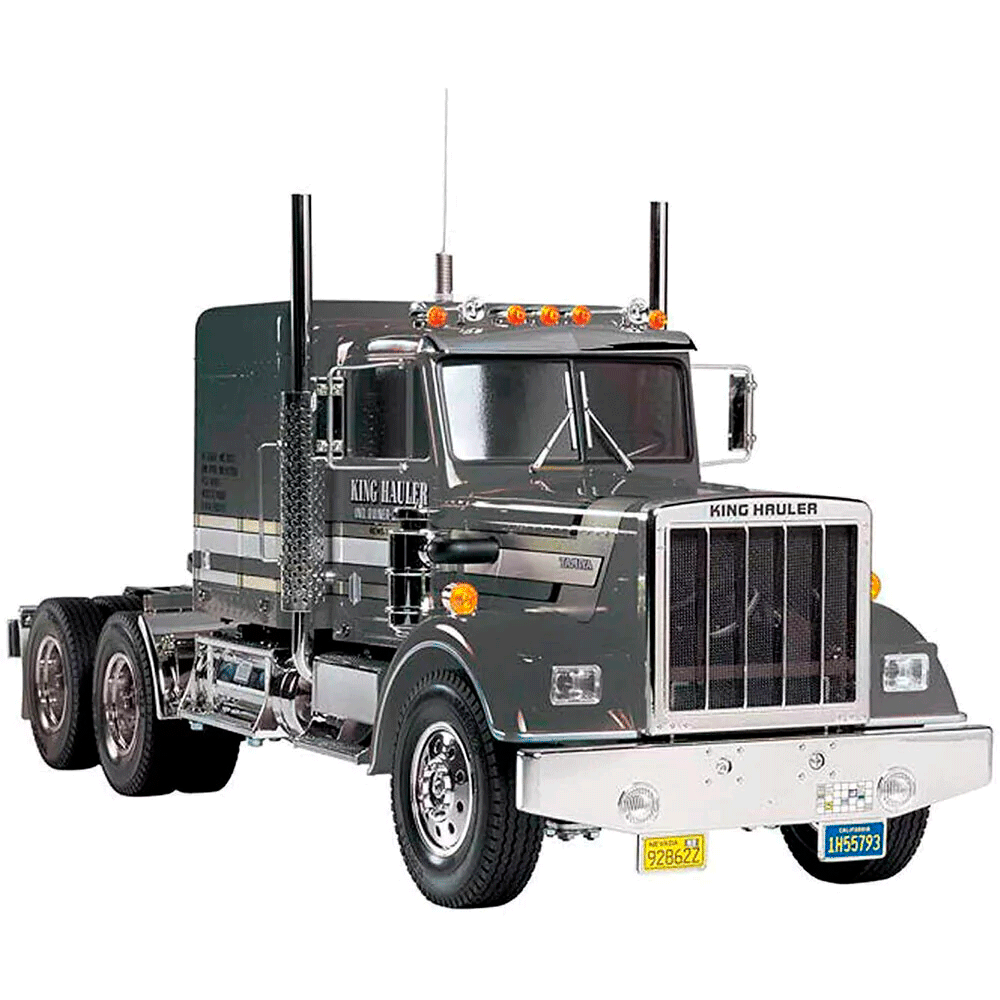

This R/C model assembly kit features a precision-molded tractor truck body with pre-painted metallic black parts offset by chrome-plated parts such as the front grille, air cleaners and more. The tough ladder frame chassis is paired with front and rear metal leaf spring dampers for excellent performance and durability. The front-mounted motor provides power to the rear wheels via propeller shaft, mirroring the system used on actual road-going trucks, and utilizes a 3-speed transmission with manually-controllable gear changes.

Realistic Lights, Sounds, and Vibration with the separately sold MFC Unit:

• The separately sold Multi-Function Control Unit (MFC) offers light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from the actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.

6 Types of Semi-Trailer Separately Available

• 6 types of trailer including semi-trailer, tank-trailer, and pole-trailer, are currently available. Attach any one of them via the coupler on the model to create an exciting combination over a meter in length.

 Features

• Length: 692mm
• Width: 192mm
• Height: 330mm
• Weight: Approx. 3.9kg (*with all equipment attached)
• Wheelbase: 433mm＋103mm
• Tread: 156mm (Front), 138mm (Rear, Double Tire)
• Chassis: Aluminum & Polycarbonate Resin Ladder Frame
• Suspension: Front/Rear Leaf Springs
• Caster Angle (Front/Rear): 0°/0°
• Camber Angle (Front/Rear): 0°/0°
• Toe Angle (Front/Rear): 0°/0°
• Dampers: Front/Rear Aluminum Friction Dampers
• Drivetrain: Rear 2-Axle Drive　
• Transmission: 3-Gear Transmission (gear shifting operated from transmitter)
• Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
• Diff Gear: 3-Bevel Diff.
• Motor: Type 540
• Tire Width: 22mm (Front/Rear)
• Tire Diameter: 83mm (Front/Rear)
• Requires: 4-channel transmitter & receiver, MFC-01, 2 servos, 7.2V battery pack & charger (sold separately)

Specifications

• Adjustable Gear Ratio 3-speed transmission
• Bearings Metal bushings
• Body Material ABS Plastic
• Body Stickers Included
• Chassis Material Aluminum and ABS plastic
• Chassis Type Semi-Truck
• Construction Type Assembly Kit
• Differential Type Gear
• Drive Type RWD
• Electronic Speed Control (esc) Not Included
• Led Light Buckets yes
• Led Lights Not Included, but sold separately
• Motor 540-brushed type
• Required To Complete 4-Channel Radio (Tamiya Attack), 2 servos, ESC, 7.2volt battery with compatible charger, and Tamiya TS & Acrylic-Lacquer Bottle Paints
• Scale 1/14
• Shock Damper Friction damper
• Special Feature 1 Body and P parts are replaced with pre-painted Metallic Black parts.
• Special Feature 2 Length: 600mm, Width: 180mm, Height: 255mm.
• Special Feature 3 Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailer.
• Suspension Leaf Spring
• Terrain Use On-Road
