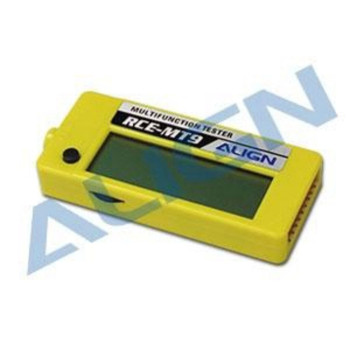

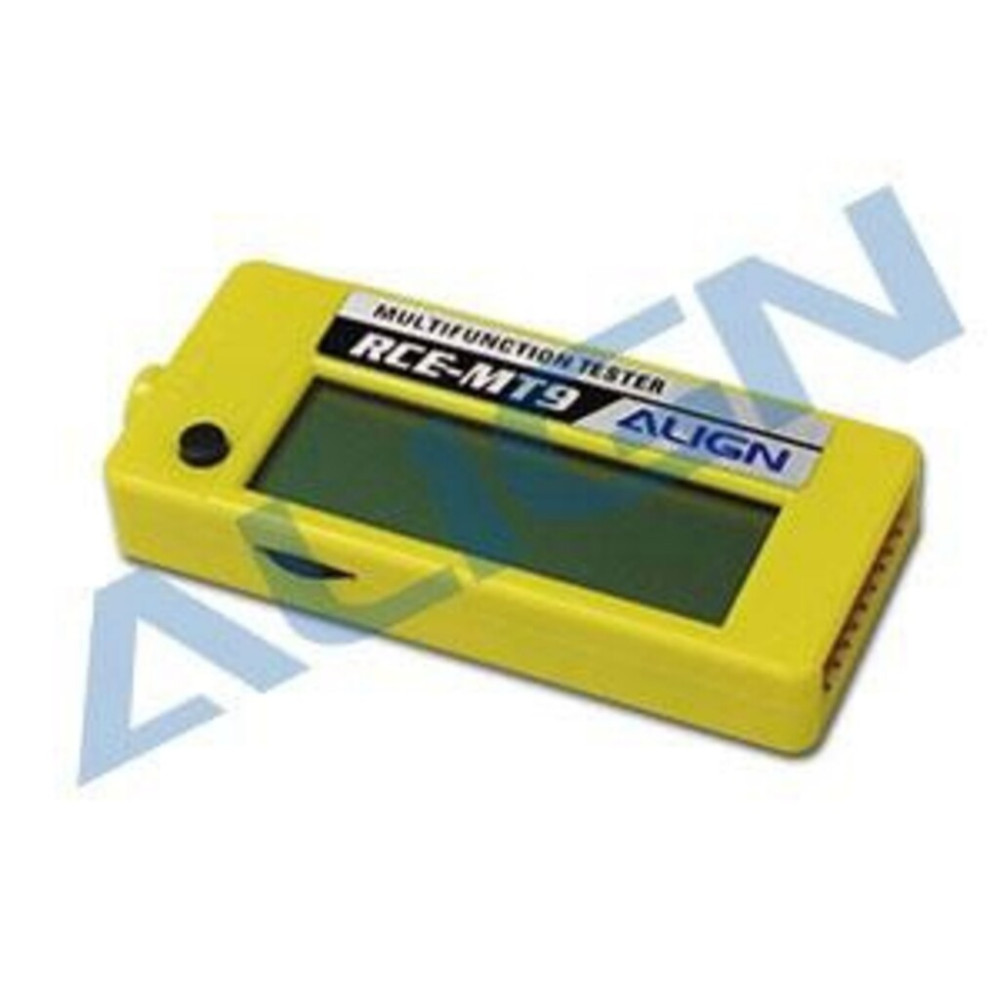

ALIGN MULTI FUNCTION TESTER HETMT901T

Instructions:

1.With 3A BEC Output

2.For RC model electrical equipment diagnostic and measurement use.

3.High precision display of individual cell voltage for 2 to 8S lithium packs.In addition to individual cell voltage, it also displays total pack voltage as well as percentage of pack's remaining capacity.

4.Displays serial cell count in a pack, as well as highest and lowest cell voltage, and the voltage difference.

5.Servo diagnostic feature. Displays BEC output voltage and receiver signal output.

6.Digital tachometer to display 2 to 7 propeller rotating speed as well as memory for highest RPM attained.

7.Reverse polarity protection for cell input.

Specification:

Voltage measurement range: 2-8S Lipo/Li-ion.

Voltage display resolution: 0.001V

PPM manual signal output 2270us-770us

PPM automatic signal output: 1520us ±(120-630us)

Number of propeller measurable: 2 to 7

Propeller rotating range: 1-60000RPM, measurement distance: 5-15cm

BEC input voltage range: 4-7v

With 3A BEC Output

Battery input terminal spec: 2.5mm pitch pins, compatible with Align compatible balancing plugs.

Accessories:

Balance adapter D x 1

(Compatible with TP balance plug of same specification)
