3DR UBLOX GPS COMPASS KIT GPS-KIT-0003

3DR UBLOX GPS WITH COMPASS KIT

This new design incorporates the HMC5883L digital compass, providing a convenient method of mounting the compass away from sources of interference that may be present in the confines of the vehicle.

This is our best GPS module, significantly outperforming the Mediatek GPS due to the larger antenna and next-gen chipset.

An excellent solution for multicopters and rovers in particular, where GPS accuracy is paramount.

It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts, and I2C EEPROM for configuration storage.

The units ship pre-configured for use with 3DR APM 2.6 autopilot; the configuration file is available in the repository.

FEATURES AND SPECIFICATIONS:

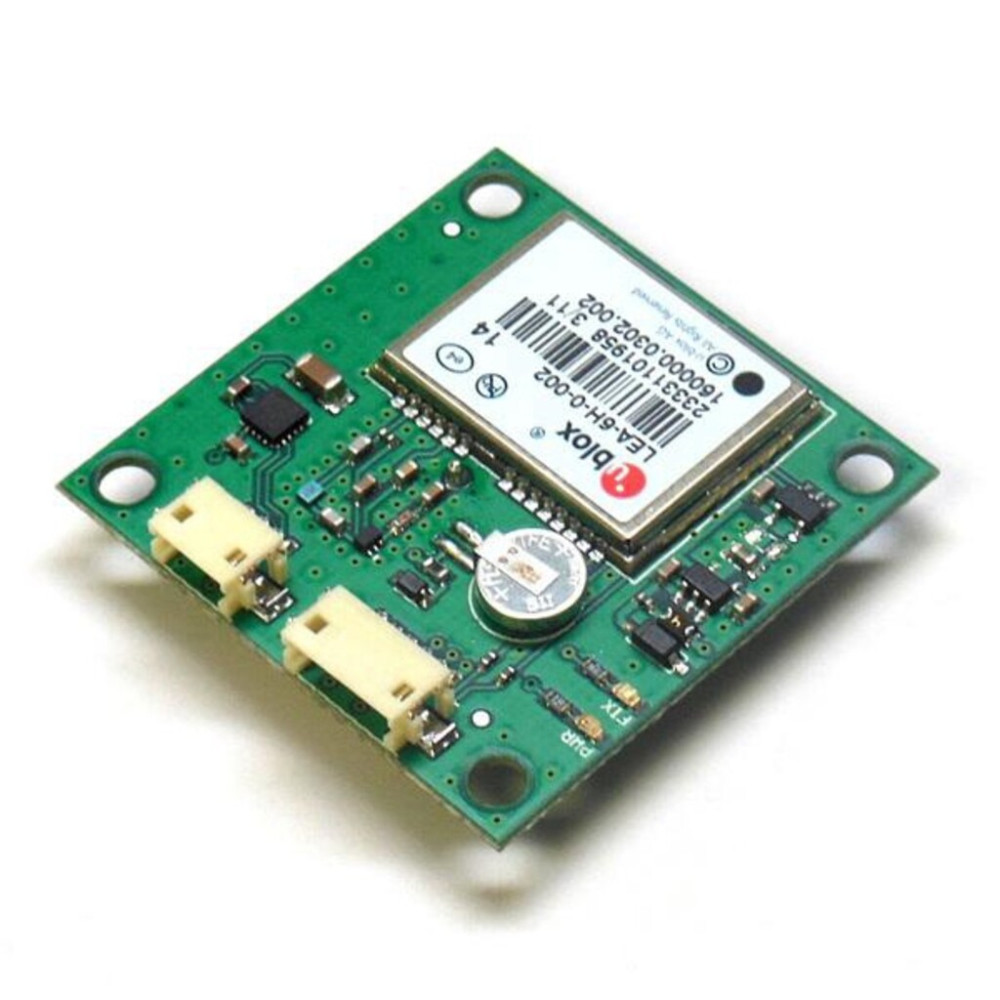

ublox LEA-6H module

5 Hz update rate

25 x 25 x 4 mm ceramic patch antenna

LNA and SAW filter

Rechargeable 3V lithium backup battery

Low noise 3.3V regulator

I2C EEPROM for configuration storage

Power and fix indicator LEDs

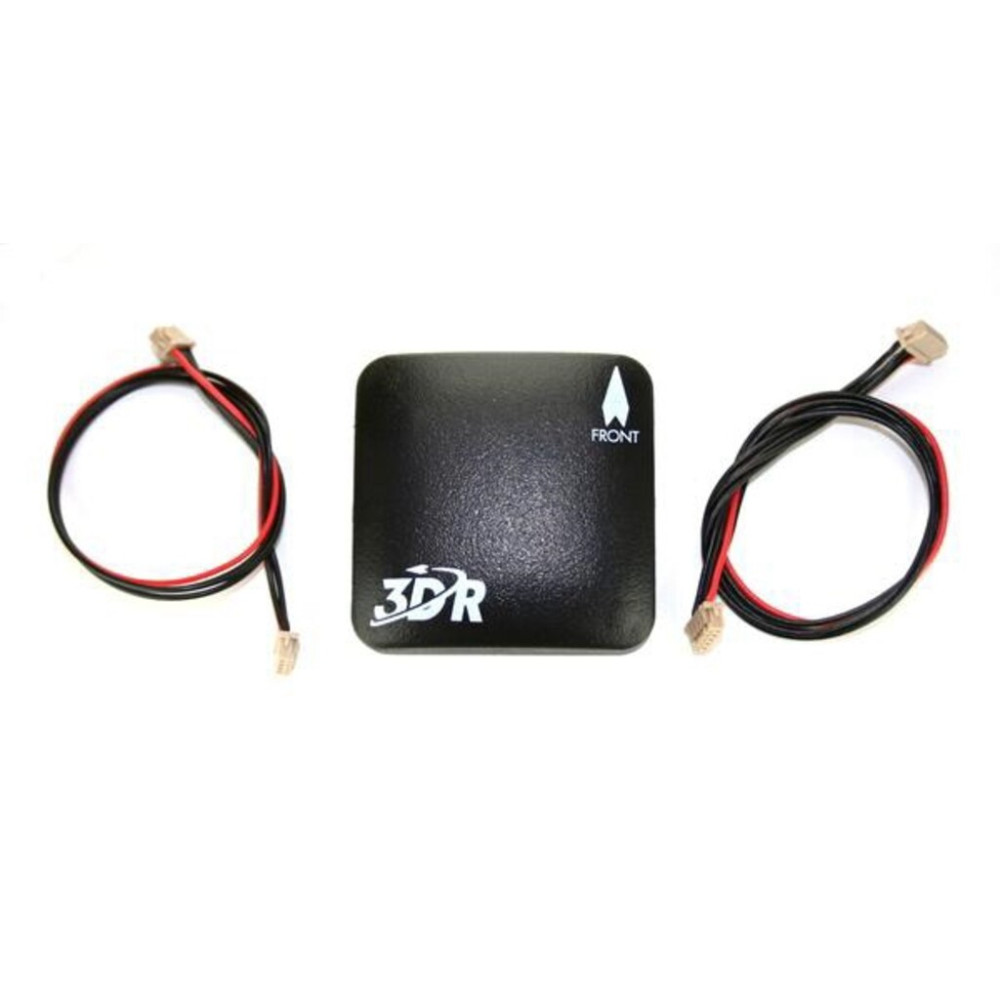

Protective case

ArduPilot Mega compatible 6-pin JST connector

Exposed RX, TX, 5V and GND pad

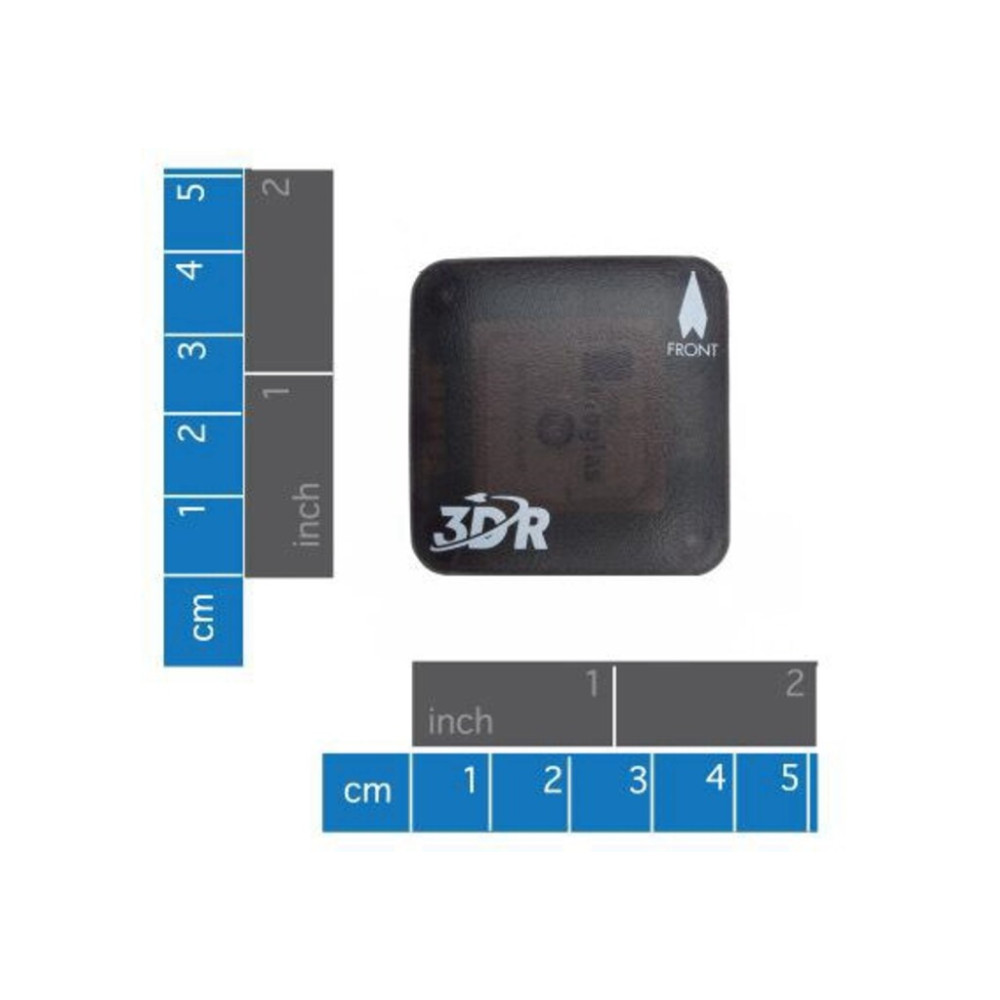

38 x 38 x 8.5 mm total size, 16.8 grams.
