BL800H ALIGN HV BRUSHLESS SERVO HSL80001

Description:

• Utilizes brushless motor design for fast speed, high efficiency. And, with no brush wear, servo longevity is greatly increased.
• Supports 8.4v high voltage to provide optimal speed and torque brushless servo performance. Specifically designed for helicopters, with more specifications on the market: 0.058sec/60° ultra fast speed and monstrous 23 kg-cm torque, allowing helicopter to perform faster and higher accurately. Ultra-high 12-bit resolution of the signal for excellent accuracy and smoothness.
• Hardened high-strength superalloy gears that increase lifespan. Brand new high voltage brushless servo equipped new CNC aluminum case, not only displayed the servo's top of the line aesthetics, but also combine heat sink function and better protection for servo.
• Supports both digital and analog control signals. Suitable for T -Rex 550/600/700/800 cyclic and rudder use.

Specification:

• Stall Torque: 17kg.cm (6.0V)
• Stall Torque: 22kg.cm (7.4V)
• Stall Torque : 23kg.cm (8.4V )
• Movement Speed: 0.08sec/60° ( 6.0V )
• Movement Speed: 0.06sec/60° ( 7.4V )
• Movement Speed: 0.058sec/60° (8.4V)
• Voltage: DC 4.8- 8.4V
• Temperature range: -20°C ~ 60°C
• Dimension: 40.3 x 20.1 x 38.7 millimeters
• Weight: 80g

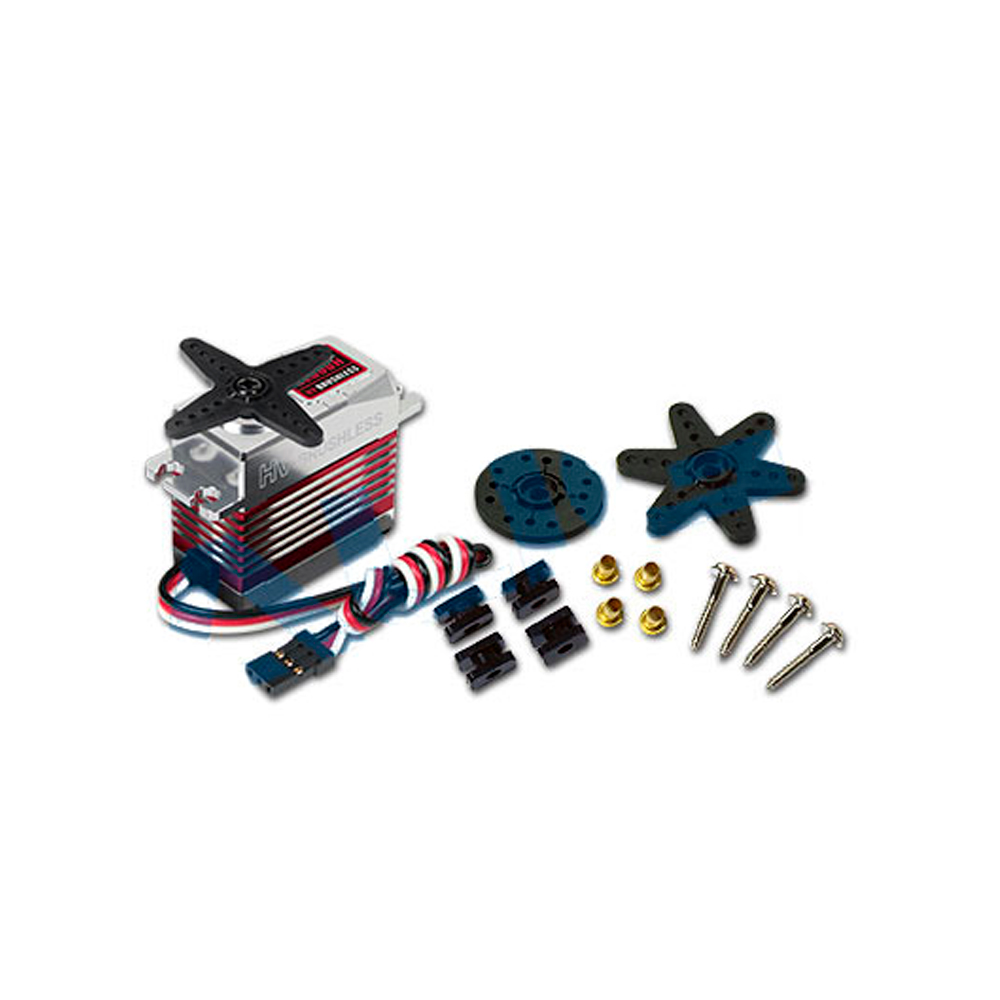

Included items:

• 4- Servo rudder piece
• 1- Screw
• 4- shock absorber rubber
• 4- brass eyelets
• 4- Servo screw
