MOTOR ALIGN 460MX 3200K HML46M02T

The Align 460MX 3200KV HML46M02 engine.

• The 460MX motor armature has a special balance to adjust and improve the problem that other small motors have. High torque, high efficiency, low temperature variation, stable and silent. . High speed ball bearings, outrunner's powerful magnetic rotor. Suitable for T-REX 450E series.

Specifications:

• Input voltage: 3S
• Max continuous current:46A/68A(5sec)
• Max output power:Approx. 500w/730W(5sec)
• KV value: 3200KV
• Stator Dimension: 2222
• Stator Arms: 9
• Magnet Poles: 6
• Dimension: spindle 3.5x29.2x38mm
• Weight: Approx. 87g

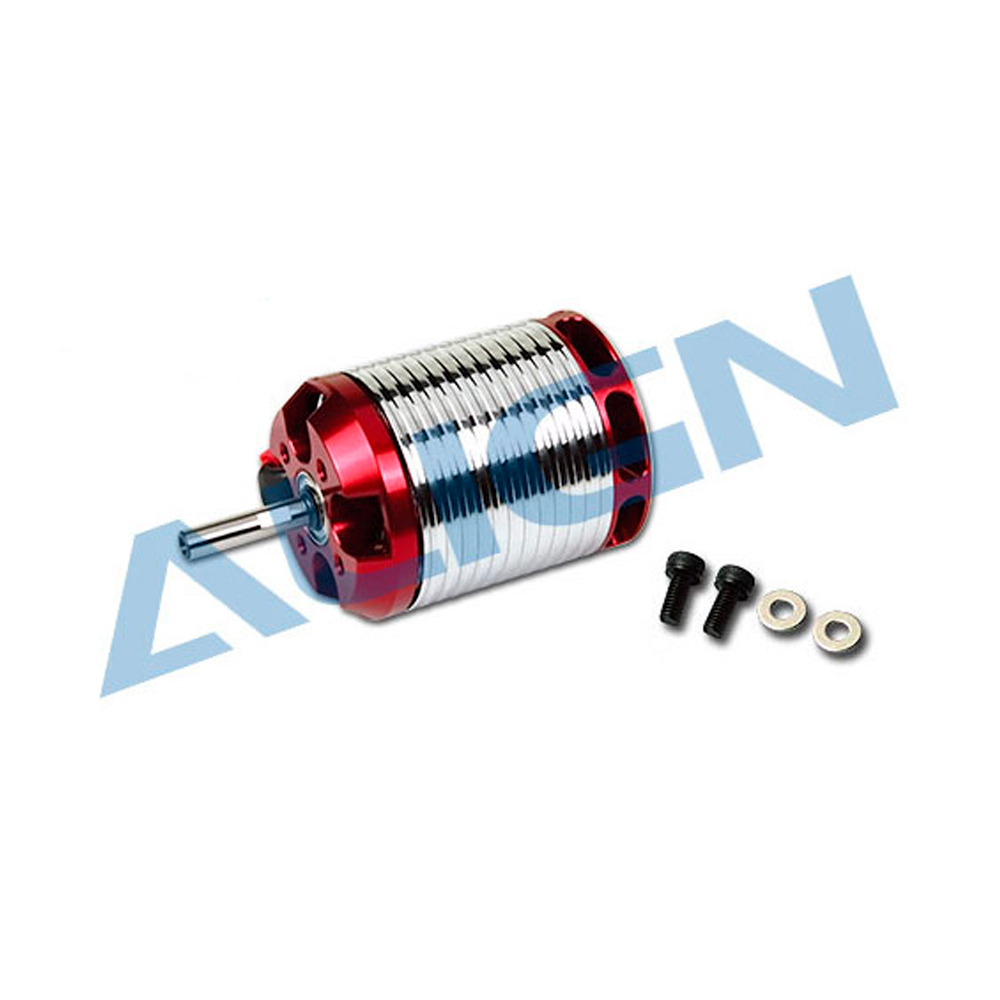

Accessories:

• Socket button head screw(M2.5X6mm) x 2
• Washer2.65.8X0.6mm) x 2
• ALIGN standard 3mm gilt terminal x 3set
