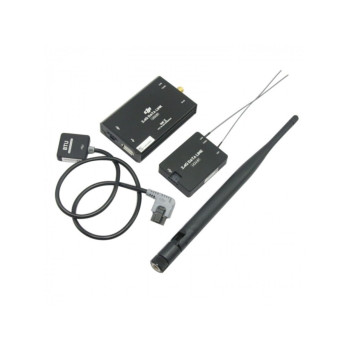

DJI DATA LINK IOS BLUETOOTH + 2.4GHZ

2.4 GHz Bluetooth Datalink Functions:

1. Provides communications between the Ground end and the Air end using the DJI bidirectional data communication modules; the iPAD Ground Station communicates with the Ground end using the BTU module;

2. Use the 2.4G Bluetooth Datalink Assistant Software to upgrade the firmware of the 2.4G Bluetooth Datalink and the BTU module;

3.Provides bidirectional communications with large dataflow within the specified distance of the remote control.

iPAD Ground Station Functions

1. Friendly interface design;
2. Joystick control on touch screen;
3. Single waypoint function, click desired point and go;
4. Waypoints function, edit a routine and go;
5. Editable Home point & auto Go Home supported;
6. Auto landing function supported;
7. Flight simulator supported;
8. Customized joystick mode supported;
9. Routes save and reload supported;
10.Chinese and English UI supported;
11.Voice guidance function;
12.Uses the Bluetooth 4.0 low-power consumption technology;

Flight control systems supported:

2.4G Bluetooth Datalink: ACE ONE, WKM, NAZA-M, NAZA-M V2;

iPAD Ground Station: WKM, NAZA-M, NAZA-M V2;

Note:

All the firmware of the flight control systems should be upgraded to the latest version.

The firmware of NAZA-M and NAZA-M V2 should be upgraded to version 4.00.

IPAD GROUND STATION

The iPad ground station software, compatible with DJI flight control systems, is a portable mobile control platform designed for BVR flight.

SUPPORTED DEVICES

It currently supports the iOS devices (iOS 6.0.1 or above) with Bluetooth 4.0 (such as: iPad3, iPad4, iPad mini).

FRIENDLY USER INTERFACE
DESIGN

With the user friendly interface design and the real-time flight attitude feedback, it allows customers to access flight status immediately.

JOYSTICK CONTROL
WITH TOUCH SCREEN

Customized joystick mode supported : The joystick control mode can be customized, and the default setting is Mode 2.

SINGLE WAYPOINT FUNCTION,
CLICK DESIRED POINT AND GO

It supports single waypoint function and click& go on touch screen, a new flight control experience at your fingertips.

WAYPOINTS FUNCTION,
EDIT A ROUTE AND GO

You can preset and edit flight routes according to real-time flight requirements.

FLIGHT ROUTE TEMPLATE

It provides three editable flight route templates which make the waypoint setting easier and more precise.

AUXILIARY FLIGHT CONTROL

Editable Home point & automatic Go Home supported

One key takeoff & landing

Flight simulator supported

UTILITY FUNCTION

Accurate Flight time monitoring

Three map orientations setting

Voice guidance function

Real-time alarming function

Routes saving and reloading supported

Chinese and english ui supported

Cloud storage supported

Technical Specifications:
