TREM RETRATIL GREAT PLANES .10 GPMQ2900

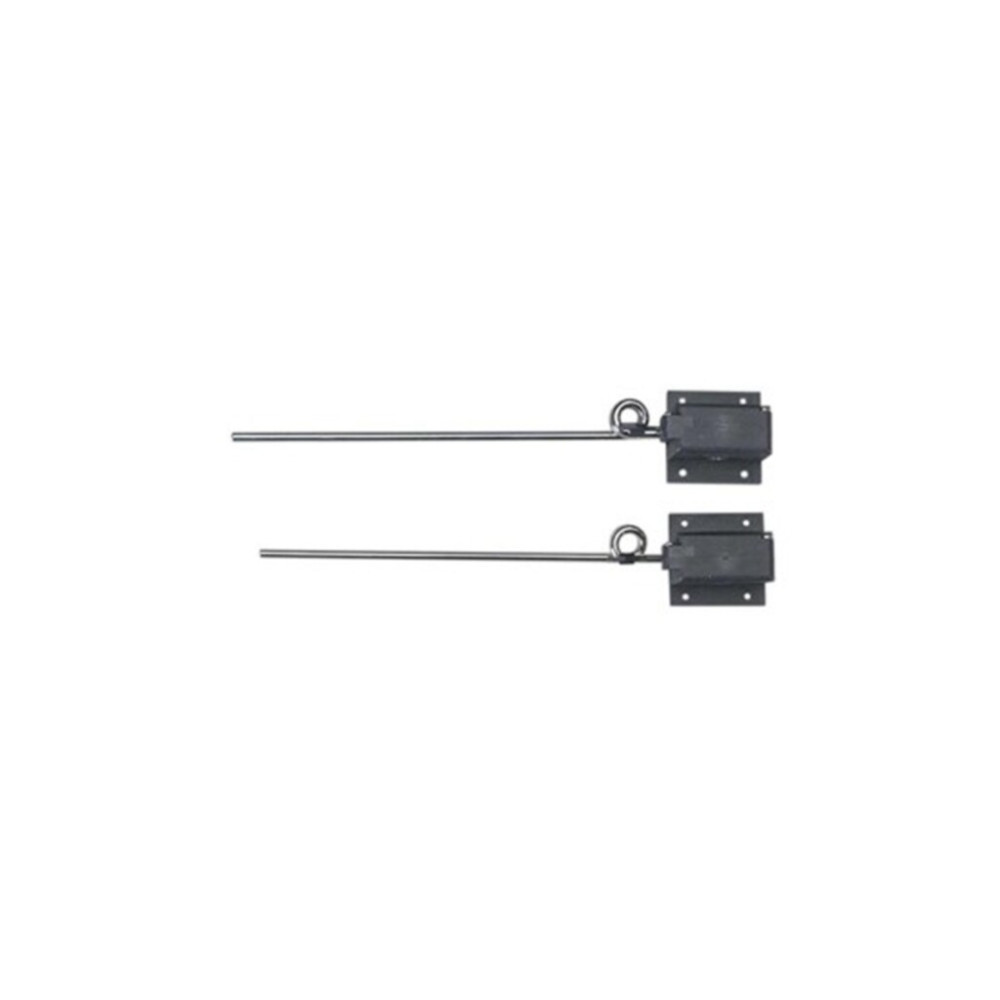

These are .10 size Non-Rotating Mechanical Retracts from Great Planes.

Ideal for small electric powered and .10-size glow powered aircraft.

FEATURES:

• 88 degrees of movement compensates for 0 to 2 degree wing dihedral. Aerodynamic low-profile design.

• Positive up and down locking positions.

• Fiber-reinforced, dark blue injection-molded nylon housing for added strength. Black metal struts with one shock absorbing coil.

• Pre-assembled strut and housing for easy installation.

• Comes packaged in a hangable clear plastic rectangular box with wheel mounting diagram and actual size mounting template.

• One year quality guarantee.

INCLUDES:

• Two mechanical retract assemblies Four pushnuts (friction washers) for installing the wheels

REQUIRES:

• Bending and cutting strut to the desired length.

• Clevis', wire pushrods, and retract servo to operate retracts.

SPECS:

Strut Length: 5.9" (149mm) (bottom of mounting plate to tip)

Strut Diameter: .079" (2mm)

Net Weight: 0.5 oz (14.2g) per gear unit

Housing Width: .6" (14mm)

Housing Height: .6" (14mm)

Mounting Plate Width: 1.2" (30mm)

Mounting Plate Length: 1.1" (28mm)

Mounting Holes Width: .9" (23mm) (side to side on-center)

Mounting Holes Length: .8" (21mm) (front to rear on-center)
