MR RET VIDEO 5.8GZ 8CH 200MW TS351+RC305

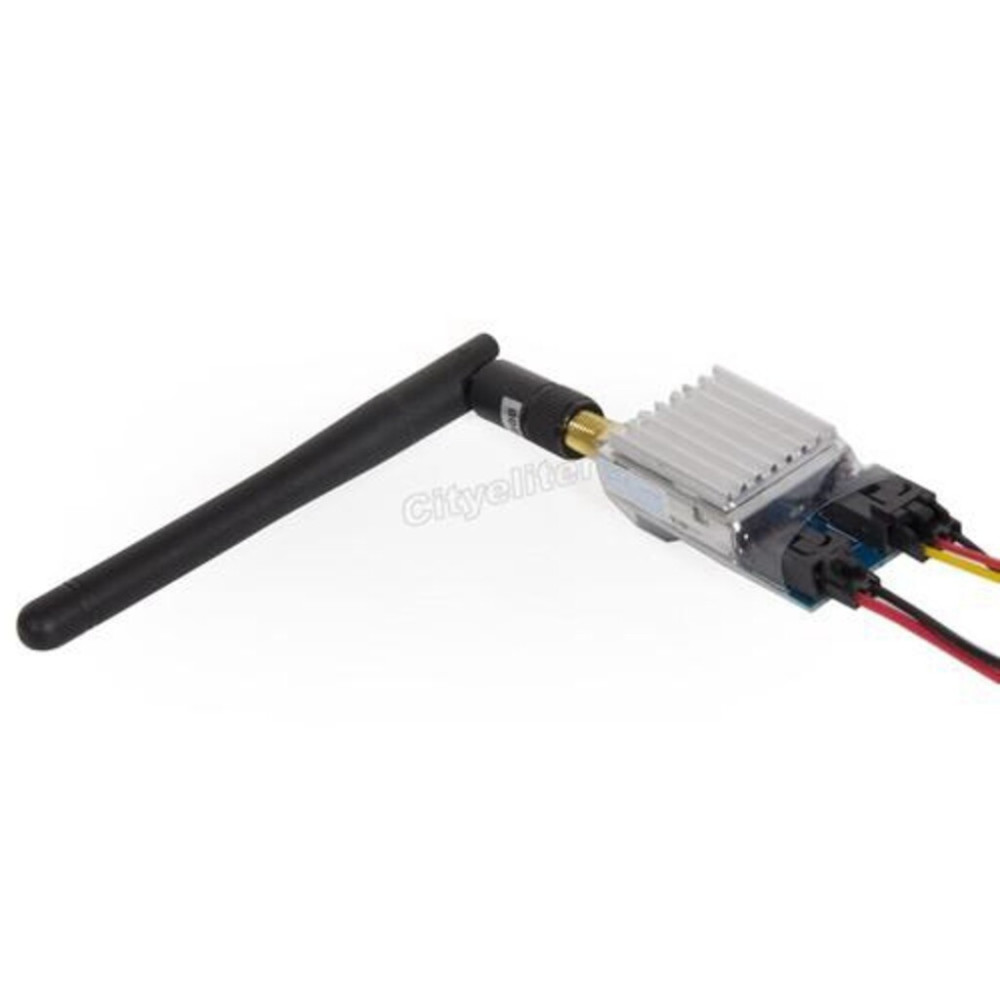

Transmitter:

1. DC in range: 12V/150mA(7.0~15V)

2. Operating temperature: -10~+85°c

3.High power output :23dBm

4.Low harmonic radiation

5.Eight channel launching

Receiver:

1. video output:1Vp-p 75 ω

2.Audio Output:1Vp-p 600 ω

3. Power supply:DC 12V

4. Operating temperature: -10~+50°c

5. Dual AV output

6. Receive frequency:5725-5865MHz

Channel frequency:

CH1 5.705/ CH2 5.685/ CH3 5.665/ CH4 5.645

CH5 5.885/ CH6 5.905/ CH7 5.925/ CH8 5.945 GHz

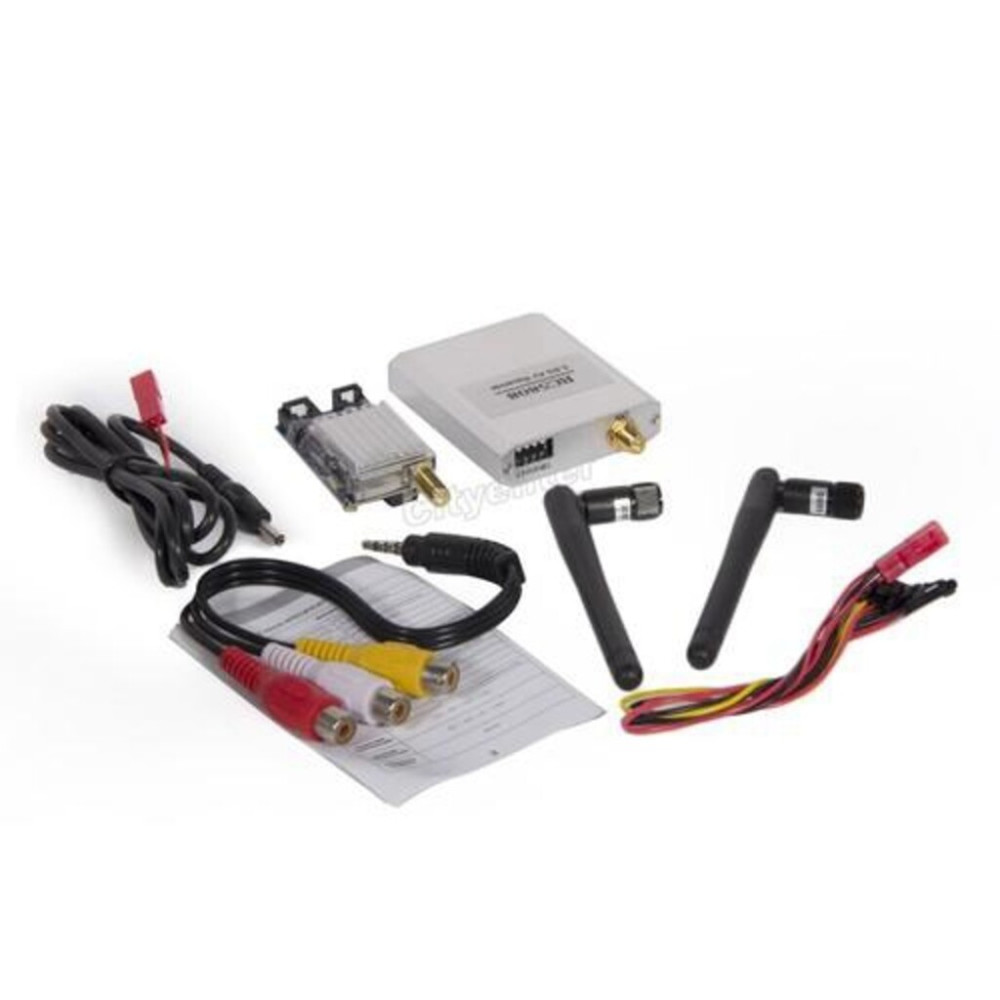

Package includes:

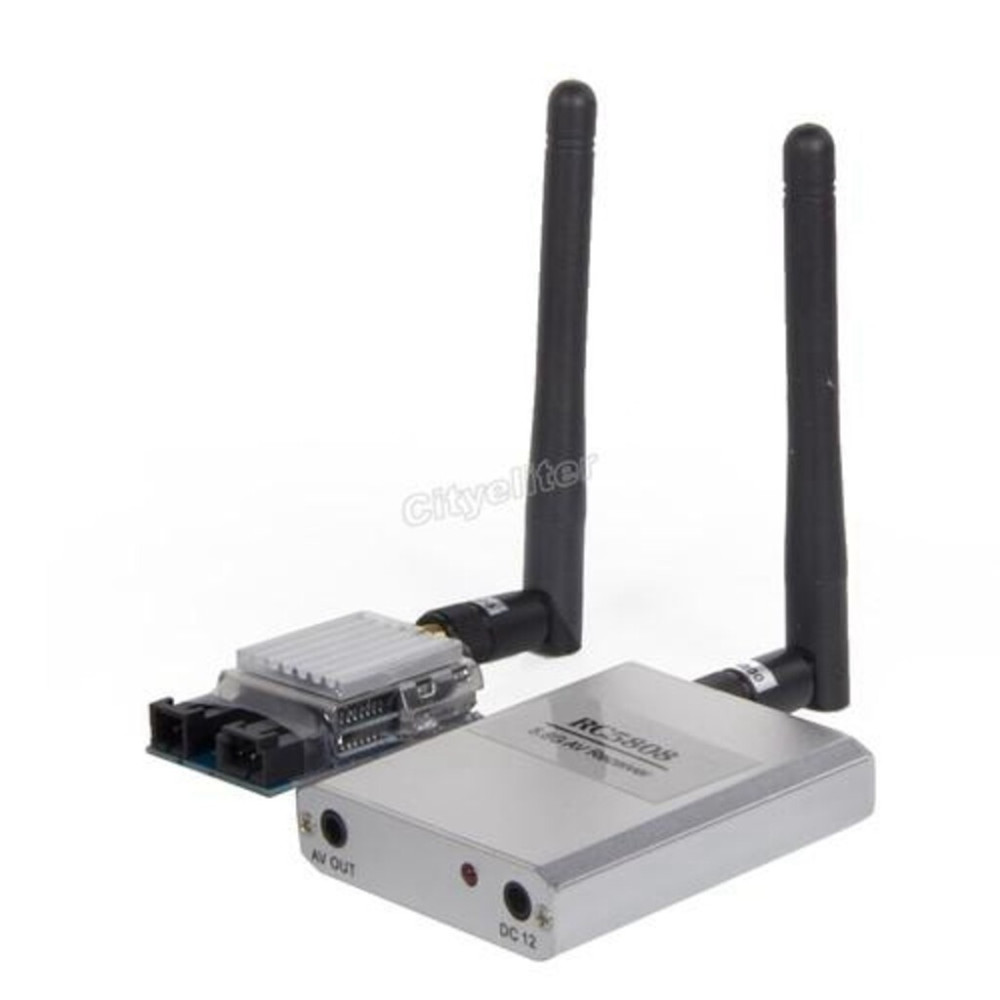

1xRC5808 Receiver

1xTS58200 Transmitter

2 X 5.8G antennas

1 X Power cable for transmitter

1 X Power cable for receiver

1x Connector and cable set

1x Instruction book
