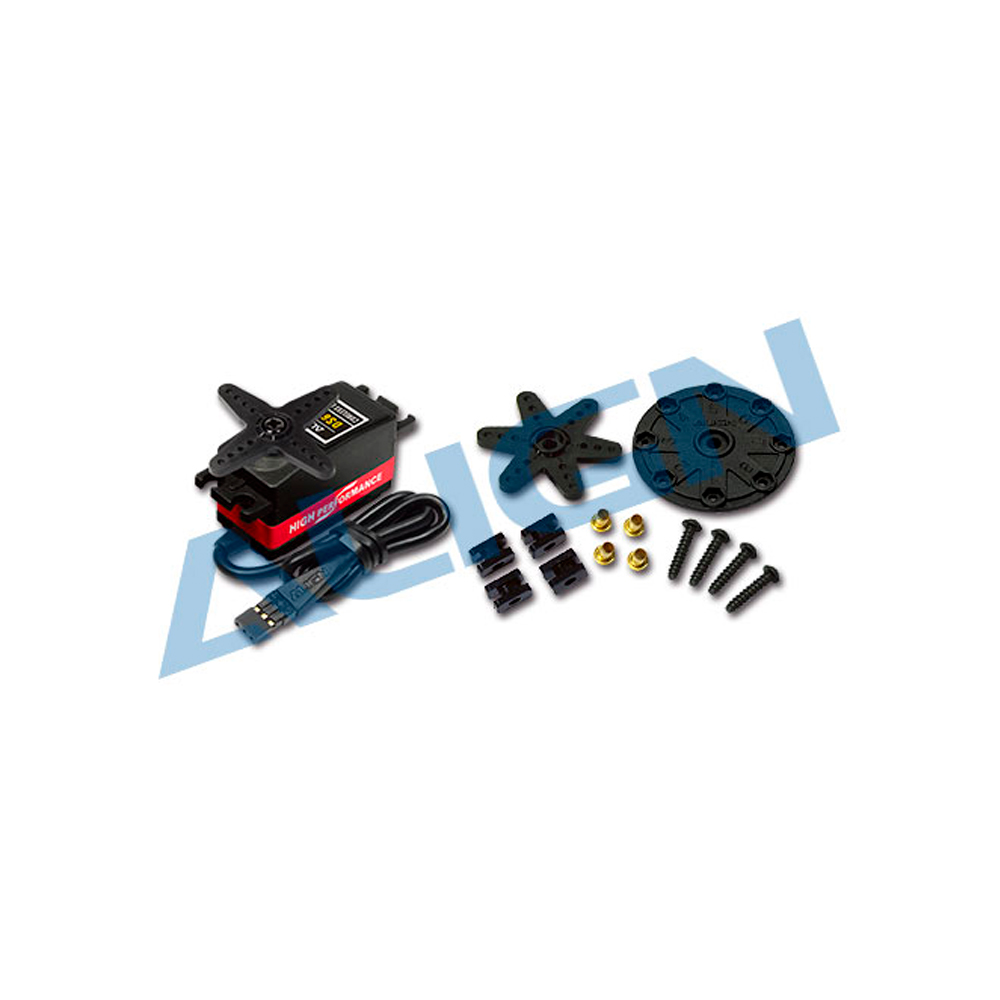

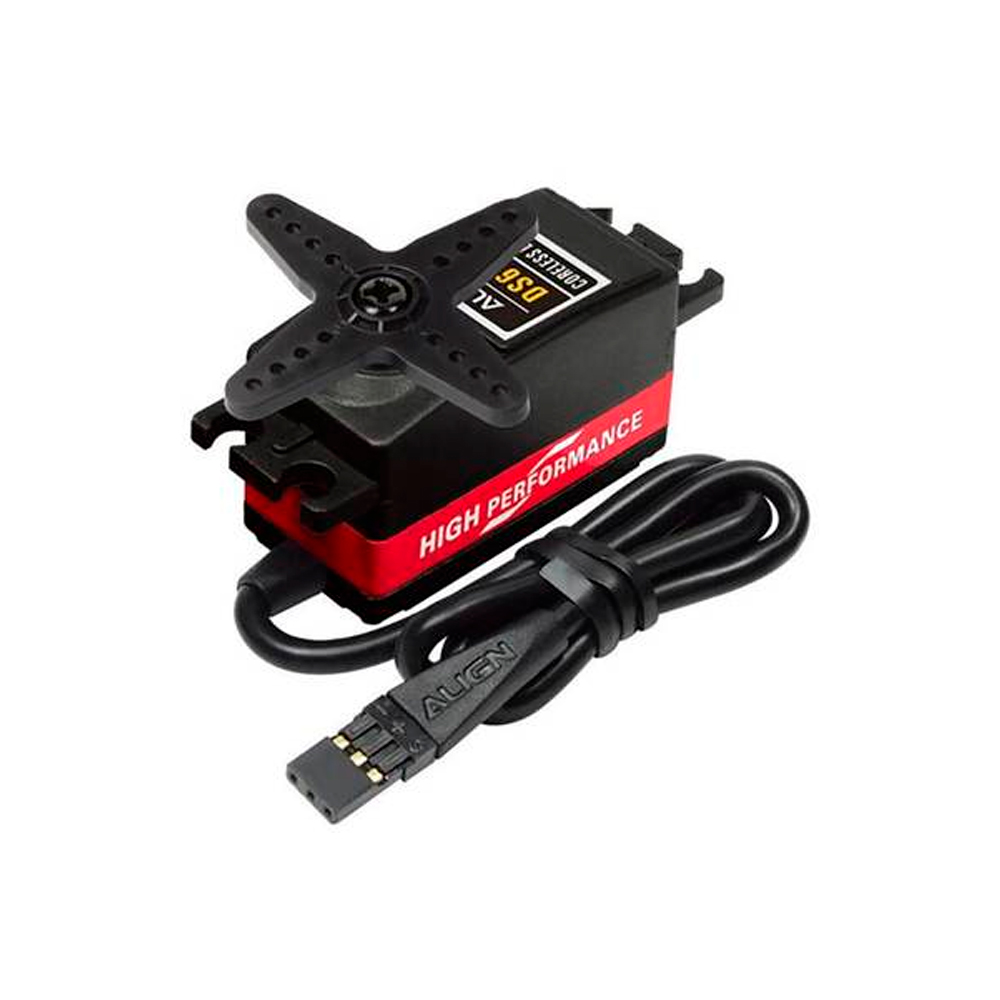

DS615S ALIGN DIGITAL SERV HSD61502T

Instruction:

• The special and unique low profile design, in addition to helicopters,
  also suitable for RC cars and planes.
• Using high-efficiency coreless motor, higher superiority
  performance, higher output torque, faster reaction time, resulting
  in greater holding power on the swashplate, providing a precise control feel.
• Of course, its high performance is suitable for RC cars and airplanes.
• Silicone-insulating magnetic wire, providing high-end texture and long-lasting protection for the servo.
• Coreless motor design for fast speed, high efficiency and low power consumption.
• Strength super alloy high hardened gears which increase life time.
• Aluminum alloy mid case construction for instant heat dissipation and high efficiency servo maintenance.
• Support digital and analog control signal.
• Powerful and accurate servo, suitable for T-REX 550/600 swashplate to use, and also suitable for remote control cars, planes.

Specification:

• Stall Torque: 8.5kg.cm (4.8V)
• Stall Torque: 10kg.cm (6.0V)
• Movement Speed: 0.09sec/60° (4.8V)
• Movement Speed: 0.07sec/60° (6.0V)
• Voltage: DC 4.8-6V
• Temperature range: -20 ° C ~ +60 ° C
• Dimension: 40.1 x 20.1 x 25.5 millimeters
• Weight: 49g
• Default band: 1520μs
