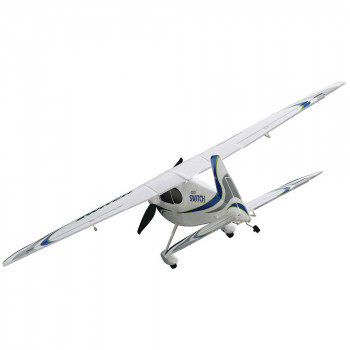

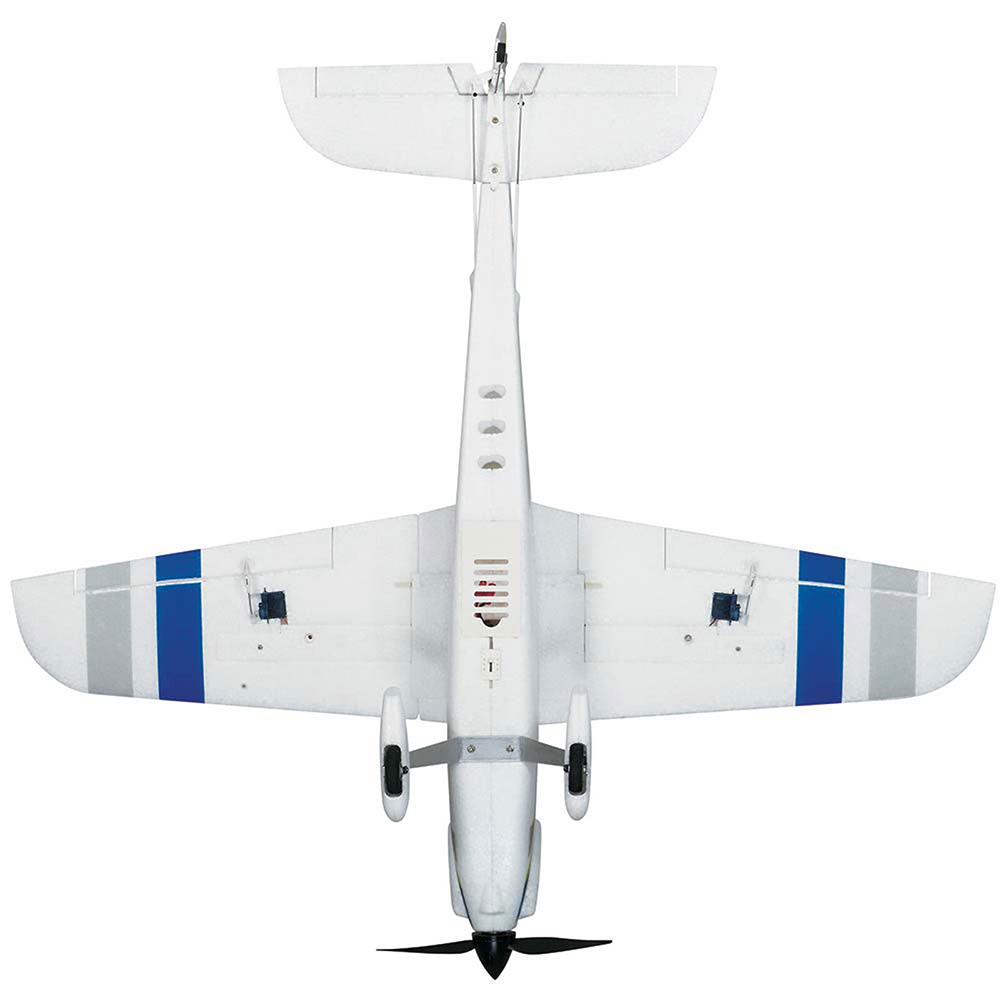

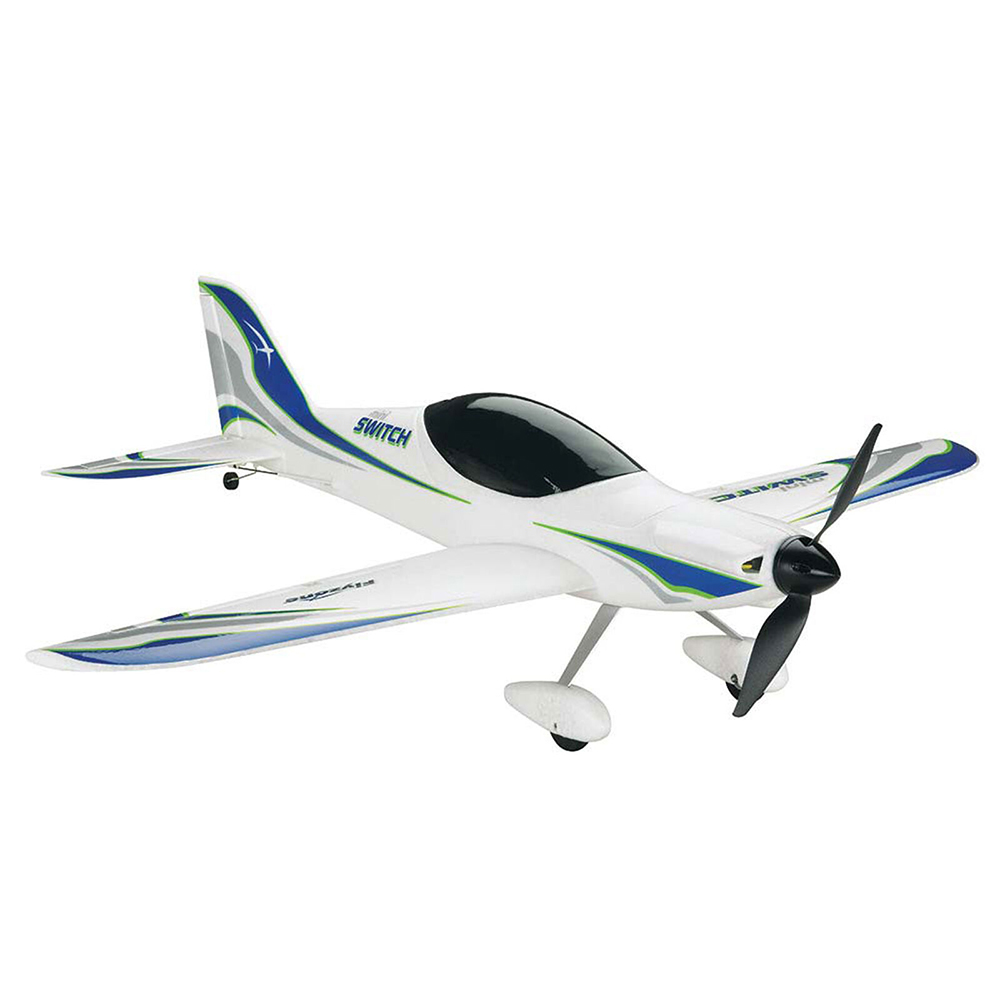

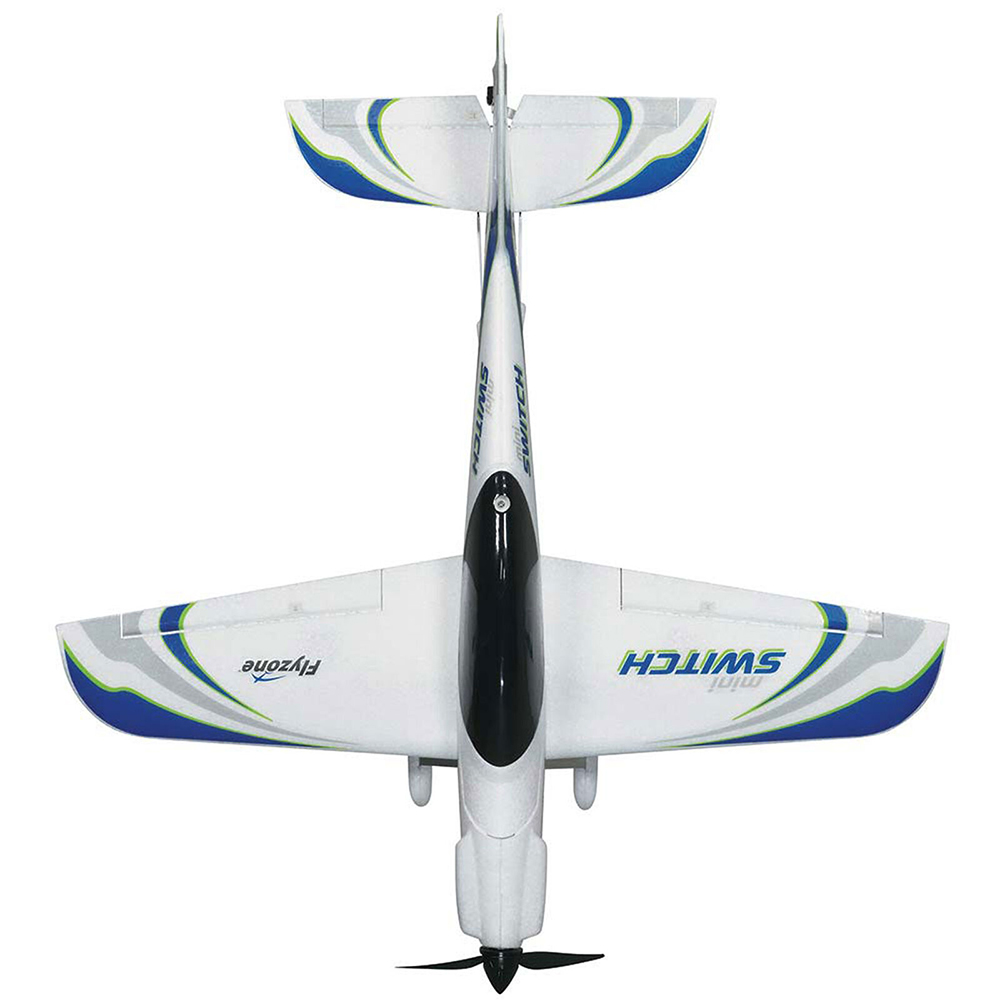

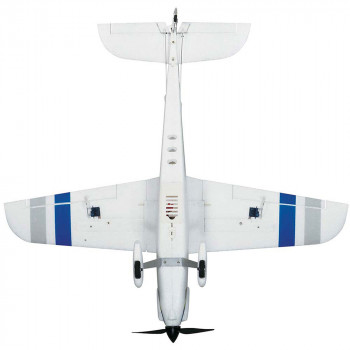

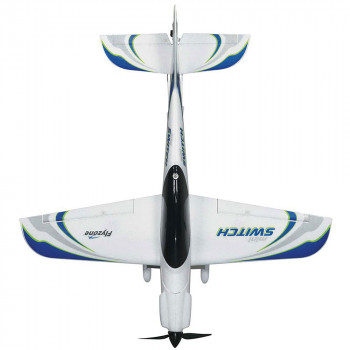

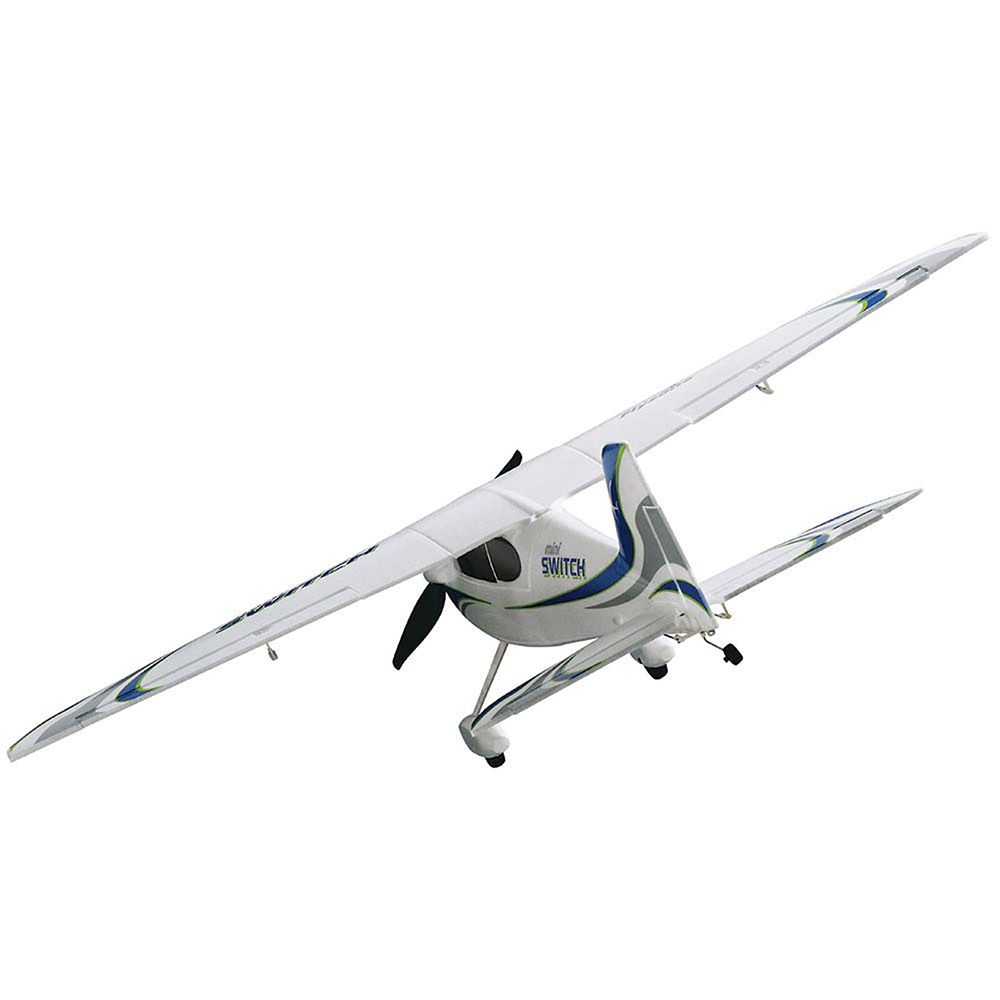

AVIAO HOB MINI SWITCH TXR FLZA3322 (OUTLET)

This is the 2.4GHz radio controlled, electric powered, Tx-R (Transmitter Ready) Flyzone Mini Switch Trainer.

High wing mounting position offers stability for beginners and is easily switchable to a more aerobatic low wing position as beginners increase their flying skills.

This is the Tx-R (Transmitter Ready) version that includes servos, an ESC and SLT receiver. With the AnyLink SLT 2.4GHz Radio Adapter (separate purchase) and the appropriate AnyLink cable with compatible aircraft transmitter 4-channels or higher may be used to fly this airplane.

FEATURES

• Construction: Aerocell foam
• Wing: Two-piece with carbon wing joiner, can be mounted in either a mid wing configuration or high-wing configuration with a different canopy, plug and lock attachment
• Aileron Control: Dual servo
• Servos: 8g micro
• Landing Gear: Prebent aluminum
• Wheels: Main, foam 1.4" (36mm) diameter, 0.61" (15.5mm) diameter tail wheel
• Wheel Pants: Foam Electronic
• Speed Control: 20 amp
• Spinner: Plastic, 1.5" (38mm) black in color
• Motor: 28-30-1100kV brushless
• Propeller: 8x6 plastic
• Warranty: Flyzone guarantees this kit to be free from defects in both material and workmanship at the date of purchase. This warranty does not cover any component parts damaged by use or modification.

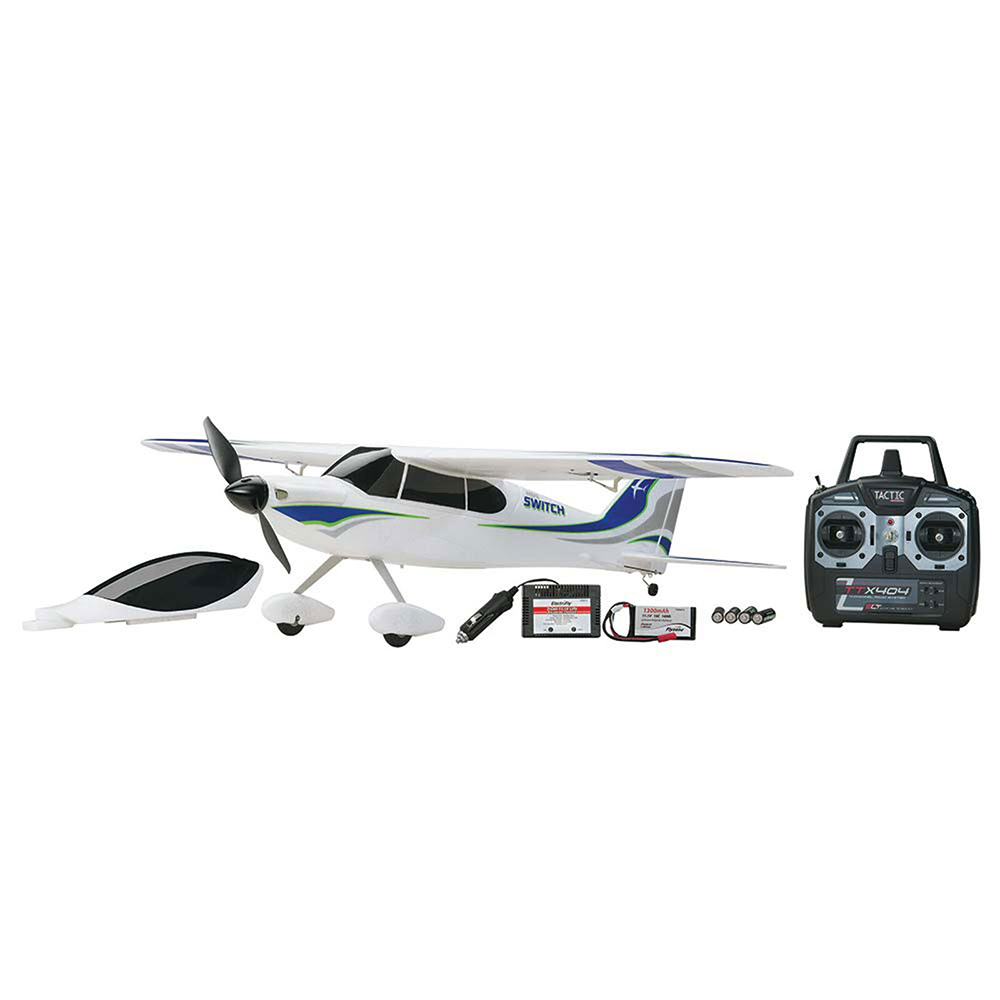

INCLUDES

• Flyzone Mini Switch Trainer with Receiver
• four Servos
• ESC
• Motor
• Propeller
• Prop Adapter
• Spinner
• Instruction Manual
• High Wing
• Low Wing Canopies

REQUIRES

• Transmitter: 4-channel Tactic AnyLink SLT 2.4GHz Radio Adapter  to adapt aircraft transmitter (the Futaba Square, and JR, Spektrum, are included with the AnyLink adapter) *Tactic 2.4GHz 4 and 6 channel transmitters do not require the AnyLink adapter
• Battery: 3S 11.1V 1300mAh LiPo
• Battery Charger: To match selected battery AA Batteries for transmitter

SPECS

• Length: 32.5" (825mm)
• Wingspan: High Wing, 34" (865mm) Low Wing, 31" (785mm)
• Wing Area: High, 195 sq in (12.6 sq dm) Low, 169 sq in (10.9 sq dm)
• Wing Loading: 15.1 - 18.1 oz/sq ft (46 - 48 g/sq dm)
• Weight: 20.4 - 21.2 oz (580 - 660mm)
• Center of Gravity (CG): High Wing Configuration, 2" (51mm) from the leading edge of each wing panel measured at the fuselage sides Low Wing Configuration, 2-11/16" (68mm) from wing's leading edge on top of wings.
• Control Throws: Set at factory. If the control throws are changed (not recommended) or to check the throws, use the following measurements;
• High Wing Configuration Low Wing Configuration Elevator: Up & Down 5/16" (8mm) 16° 5/16" (8mm) 16°
• Rudder: Right & Left 1/4" (6mm) 8° 3/8" (9.5mm) 12°
• Ailerons: Up & Down 5/16" (8mm) 12° 5/16" (8mm) 12°
