ONYX 100 AC/DC 4.8~9.6V CHARGE DTXP4190

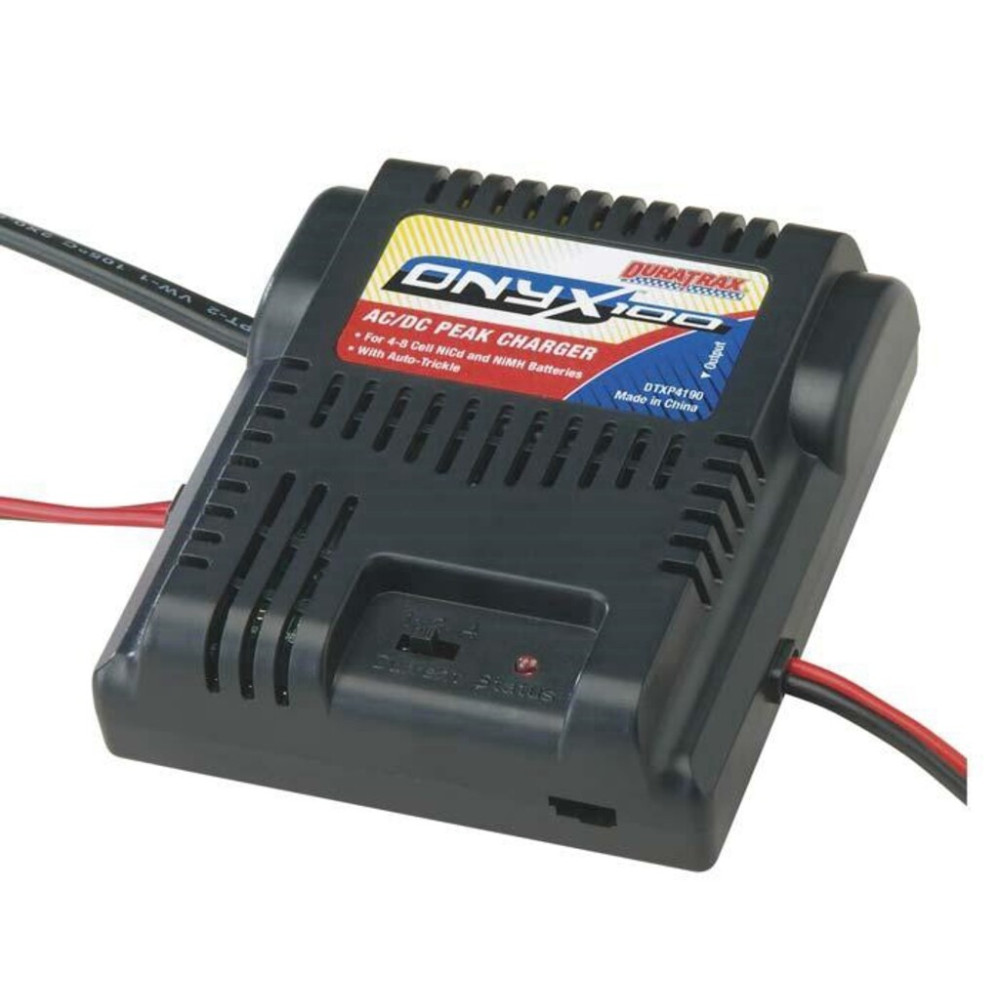

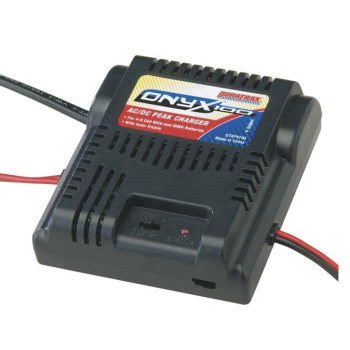

This is the DuraTrax Onyx 100 AC/DC Peak Charger for NiCd and NiMH Batteries.

FEATURES:

Ideal for sport electric car or boat modelers needing a charger that operates on either AC or DC input power and automatically peaks both NiCd and NiMH batteries as small as 600mAh "AAA" and as big as sub-C size-good for 1/18-1/8 scale models Lightweight switching AC power supply is great for portability and small pit areas Selectable charge currents of 1A, 2A (2A limit on AC) or 4A linear Peak detection intelligence eliminates need to track charge state of battery before charge Automatic trickle charge tops off packs to maximum power Auto-start function with status LED makes setup and use a snap Built-in socket for connecting radio batteries DC power lead with alligator clips connects to many 12V DC power sources Five year warranty (U.S.A. and Canada only)

INCLUDES:

DuraTrax Onyx 100 AC/DC Peak Charger for NiCd and NiMH Batteries and instruction sheet

REQUIRES:

AC or DC power source

SPECS:

AC Input: 110V AC 60Hz

DC Input: 11-15V DC, built-in lead with alligator clips

Battery Types: 4-8 NiCd or NiMH Cells (4.8-9.6V, limited to 7 cells on DC) Battery Capacity Range: 600-6000mAh

Fast Charge Current: 1, 2, or 4A linear (2A limit on AC)

Fast Charge Termination: Peak detection

Fast Charge Safety Timer: 90 minutes

Peak Sensitivity: 8mV

Auto-Trickle Current: 1/20 fast charge setting

Controls: auto-start, switchable current selector

LED Indicator: Red

Output Connections:

Built-in lead with standard connector

Built-in jack for radio batteries

Protective Devices: Solid-state reverse polarity and current overload

Case size: 3.5 x 4.1 x 1.1" (90 x 104 x 29mm) Weight: 9.17 oz.(260g)

COMMENTS: For batteries using a Traxxas type connector, order the TRAC3061 adapter.
