MR RETORNO DE VIDEO 15CH 700MW 12V
- Código: 131520
- Marca: GERAL
- Estoque: Disponível
-
$149,00
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.

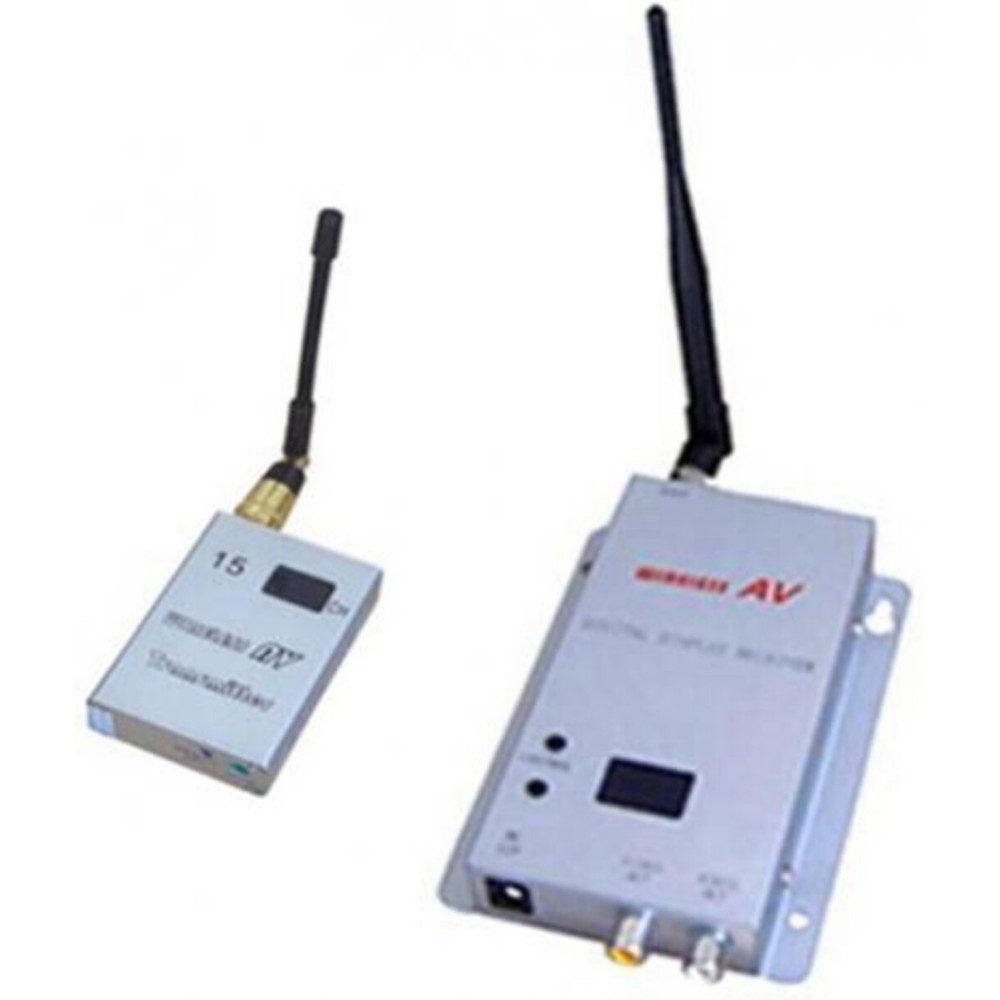

wireless audio video sender transmitter & receiver
The transmitter uses genuine Taiwan Baitong 700MW transmission module, which features small size and light weight. The transmitter with genuine extra fine antenna is very suitable for FPV. And the available transmission distance of 500-1000 meters can satisfy the requirement of the general FPV.
The transmitter uses genuine Taiwan Baitong 700MW transmission module, which features small size and light weight. The transmitter with genuine extra fine antenna is very suitable for FPV. And the available transmission distance of 500-1000 meters can satisfy the requirement of the general FPV.
Specification and features:
Transmission mode: point-to-point DRMASS; relay, repeat,movable or fixed.
Advantages:
1. This equipment is specially designed as a multi-type wireless video/audio transmission system according to different situations and functions.
2.It can be configured in various powers according to different demands; various frequency bands; various sizes; wireless transmitter and receiver for different transmission distances.
3.The system boasts complete and practical functions with stable picture transmission and reliable information transfer. It can realize different effects through different combinations thus solving problems that cannot be dealt with via wire transmission.
4.This product line boasts extensive range of application. The disguised appearance is suitable for such departments taking evidence secretly as police. It can also be equipped with specialized infrared source of non-red exposure (close range, distant range) as well as pick-up lens with various focal length and apertures. The products with general appearance apply to the work of wireless picture transmission such as supervision and long-distance information exchange in factories, mines, sea, grassland, etc.
Product Parameters:
Transmitter | Volume | 66*45*19mm |
Channel | 15 adjustable | |
Voltage/Current | 12V 280mA | |
Operation Temperature | -20 to +60 centigrade | |
Frequency | 0.9-1.2GHz | |
Power | 700mW 27dBM | |
Wireless range | 800M (LOS) | |
Video output | 1Np—p | |
Audio/Video input port | AV(RCA) | |
Receiver | Volume | 115*80*21mm |
Operation Temperature | -20 to +60 centigrade | |
Voltage/Current | 9-12V/250mA | |
Frequency | 0.9-1.5GHz | |
Sensitivity | -85dBM | |
Audio/Video output port | AV(RCA) | |
Accessories | Power adapter | 2 pcs |
3dB antenna | 2 pcs | |
AV cable | each 1 pcs | |
User manual | English manual 1 pcs |
