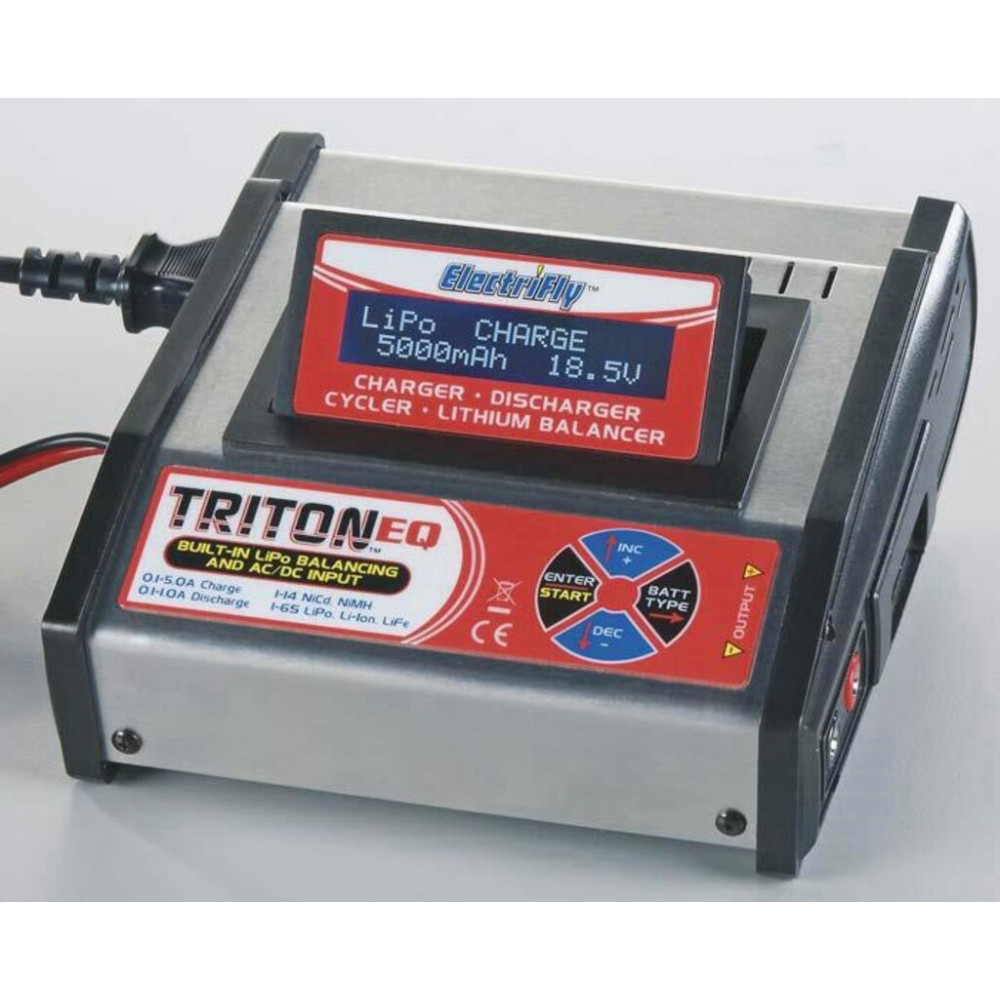

TRITON EQ AC/DC CHARGER BALANC. GPMM3155

Now with AC power and balancing!

Just because a charger is small and affordable doesn't mean it can't still handle many of your charging needs -- the Triton EQ is proof! Based on the Triton Jr., the Triton EQ offers the capability to handle the latest battery technologies, including LiPo, Li-Ion and even LiFe (A123) cells -- and there's no need for an external LiPo balancer, because it's built in. The Triton EQ can also charge 1-14 NiCd and NiMH cells -- great for radio batteries -- with charge currents up to 5 amps to handle large power packs. And that's in addition to the convenience of a built-in AC power supply and an adjustable-angle LCD!

Features

Fast charge current is adjustable from 100mA to 5 amps

Peak detection technology for NiCd and NiMH batteries

Constant current / constant voltage technology for lithiums and lead-acid batteries

NiCd and NiMH trickle current

Discharge current adjustable from 100mA to 1 amp

Discharge cutoff voltage adjustable for NiCd/MH batteries

NiCd and NiMH batteries can be cycled from 1 to 5 times for conditioning

Touchpad controls and super-simple programming make for simplicity and reliability

Displays input and output volts, peak volts, individual lithium cell voltages, avg dsch volts, chg and dsch capacity, currents and time, error messages, and more

Audible beeper aids in programming and notifies of function changes

Safety features include fast charge safety timer, current overload and reverse polarity protection

Not only is the LCD reversed with a backlight, it also features a 0-45 degree adjustable view angle for easy reading.

AC input voltage: 110V 60Hz -- 240V 50Hz (detachable AC cord)

DC input: 11-15.0V DC, with large alligator clips

Number of outputs: one, banana jacks

Battery types, # cells: 1-14 NiCd, NiMH
1-6 LiPo, Li-Ion, LiFe (3.3, 3.6 or 3.7V cells)
2, 4, 6, 8, 10, 12V Pb (2V per cell)

Fast charge current: 0.1-5.0A
63W max DC, 50W max AC

Fast charge termination: peak detection for NiCd, NiMH
cc/cv for Pb and lithiums

Fast charge safety timer: NiCd/NiMH 1.5 hours; lithiums 3 hours or turn off

Discharge current: 0.1-1.0A

Discharge cutoff voltage: 0.1-16.8V NiCd/NiMH
3.0V per cell LiPo/Li-Ion
2.5V per cell LiFe
1.8V per cell Pb

Battery memories: one

Programming controls: membrane touchpad, 4 buttons

Display type: 2x16 reverse LCD w/backlight and adjustable angle

Audible indicators: beeper

Case material: aluminum, ABS plastic

Safety devices: solid-state reverse polarity and overload

Case size: 5.9 x 6.0 x 2.3 in (150 x 153 x 58 mm)

Weight: 23.8 oz (675 g, w/o power cord) NiCd/NiMH Specs

Trickle current: charge current/20

Peak sensitivity: 8mV NiCd/5mV NiMH

Peak delay at start: 3 minutes Lithium Specs

Balancing accuracy: 5mV per cell

Balancing connector: FlightPower and ElectriFly adapters included

Maximum node current: 300mA

This is the ElectriFly AC/DC TritonEQ Charger, Discharger and Cycler with Built-In Equalizer.

**Primary differences between the TritonEQ and the Triton2 EQ are as follows;** TritonEQ Triton2 EQ Handles 1-14 NiCd & NiMH cells 1-24 NiCd & NiMH cells 1-6 LiPo/LiIon 1-6 LiPo/LiIon 1-6 (2-12V)Pb 3-12 (6-24V)Pb Fast Charge Current: 0.1-5.0A 0.1-8.0A Linear 63W max DC, 50W max AC 120W max DC, 100W max AC Battery Memories: 1 Battery Memories: 10 Cycle Count (NiCd, NiMH only): 1-5 cycles 1-10 cycles No thermal probe port Thermal probe port

***Upgraded features over the ElectriFly Triton Jr. include;*** Lightweight built-in switching AC power supply, plus DC input capabilities New reversed character LCD with backlight and 0-45° adjustable view angle Built-in balancing for 1-6S LiPo, Li-Ion or LiFe (A123) cells with FlightPower and ElectriFly adapters
