R4CH AIRTRONICS RX40H 2.4G FHSS-1 92144

Airtonics RX40H 4-Channel Micro 2.4GHz Horizontal-Pin FHSS-1 Park Flyer RX

Product Description

Airtonics RX40H 4-Channel Micro 2.4GHz Horizontal-Pin FHSS-1 Park Flyer RX

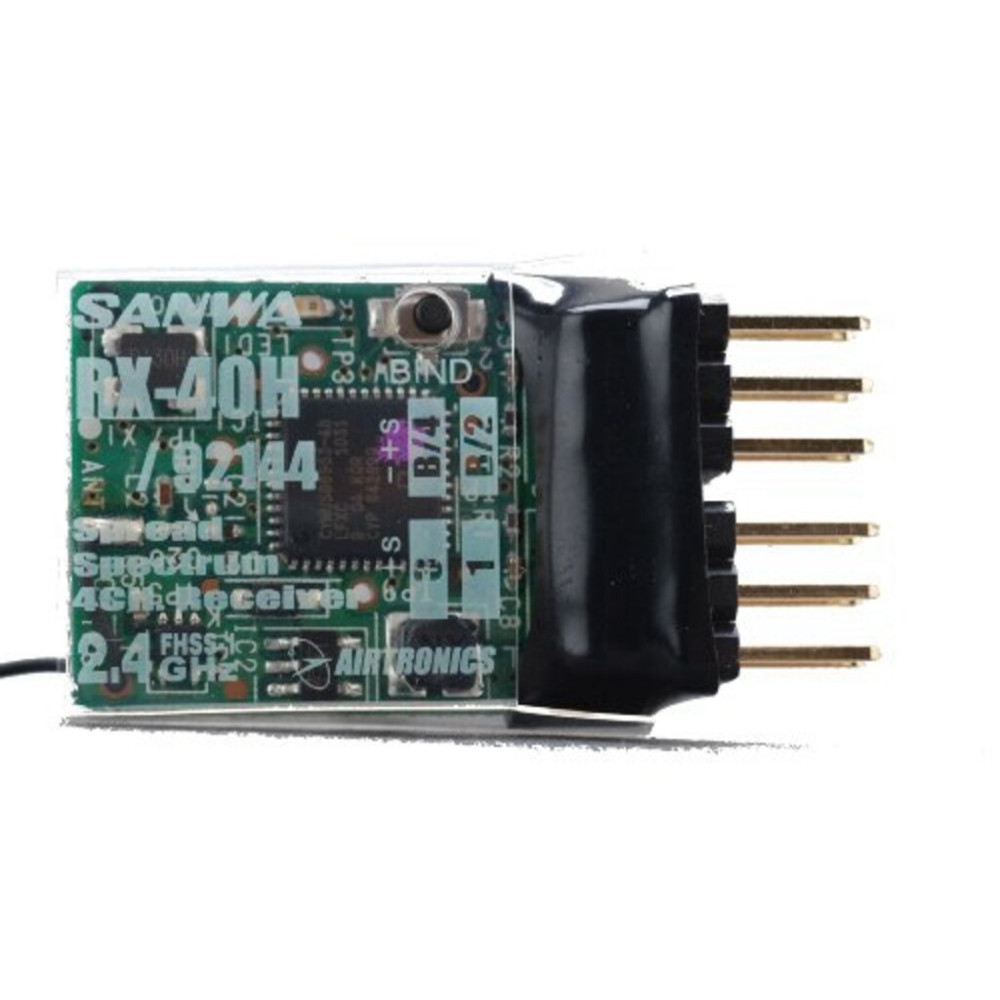

Airtronics RX40H 4-Ch Micro Receiver 2.4G H-Pin FHSS-1 Park Flyer The RX40H (92144) 4-Channel 2.4GHz FHSS-1 Micro Park Flyer Receiver is a small, lightweight, short-range receiver that's compatible with Airtronics RDS and SD series transmitters.

Also compatible with the Stylus 2.4GHz FHSS-1 Module.

This receiver is specifically designed for indoor leaflets.

In standard Airtronics fashion, this receiver features a push-button binding procedure, just one antenna for lighter weight and simple installation, plus it’s all loaded in a tiny, lightweight setup.

*This is a short-range receiver. It will not be utilized in larger R/C models that need longer range. This receiver is made for interior use!

*All Airtronics 2.4GHz FHSS-1 aircraft receivers now have a Nominal Input Voltage rating of 4.8v ~ 6.6v.

Features and requirements:

One-Touch Binding

Solitary Receiver Antenna

Frequency/Modulation Type: 2.4GHz/FHSS-1

Nominal Input Voltage: 4.8v ~ 6.6v • Weight: .10oz (2.9gr) with situation

Proportions: 0.94 x 0.72 x 0.23in (24.0 x 18.5 x 5.9mm)

Fail secure help: Yes (CH 1 ~ CH 4)

*This receiver has a Nominal Input Voltage rating of 4.8v ~ 6.6v, for that reason, it may be driven utilizing a 4 Cell or 5 Cell Ni-Cd or Ni-MH battery pack or a 2S Li-Fe/A123 battery pack. DO NOT USE A 2S Li-Po BATTERY PACK!

Features

Frequency/Modulation Type: 2.4GHz/FHSS-1

Nominal Input Voltage: 4.8v ~ 6.6v

Weight: .10oz (2.9gr) with Case

Dimensions: 0.94×0.72×0.23″ (24.0×18.5×5.9mm)

Fail Safe Help: Yes (CH 1 ~ CH 4)
