ROBART TF GIANT ZERO PNEUMAT GEAR TFZERO

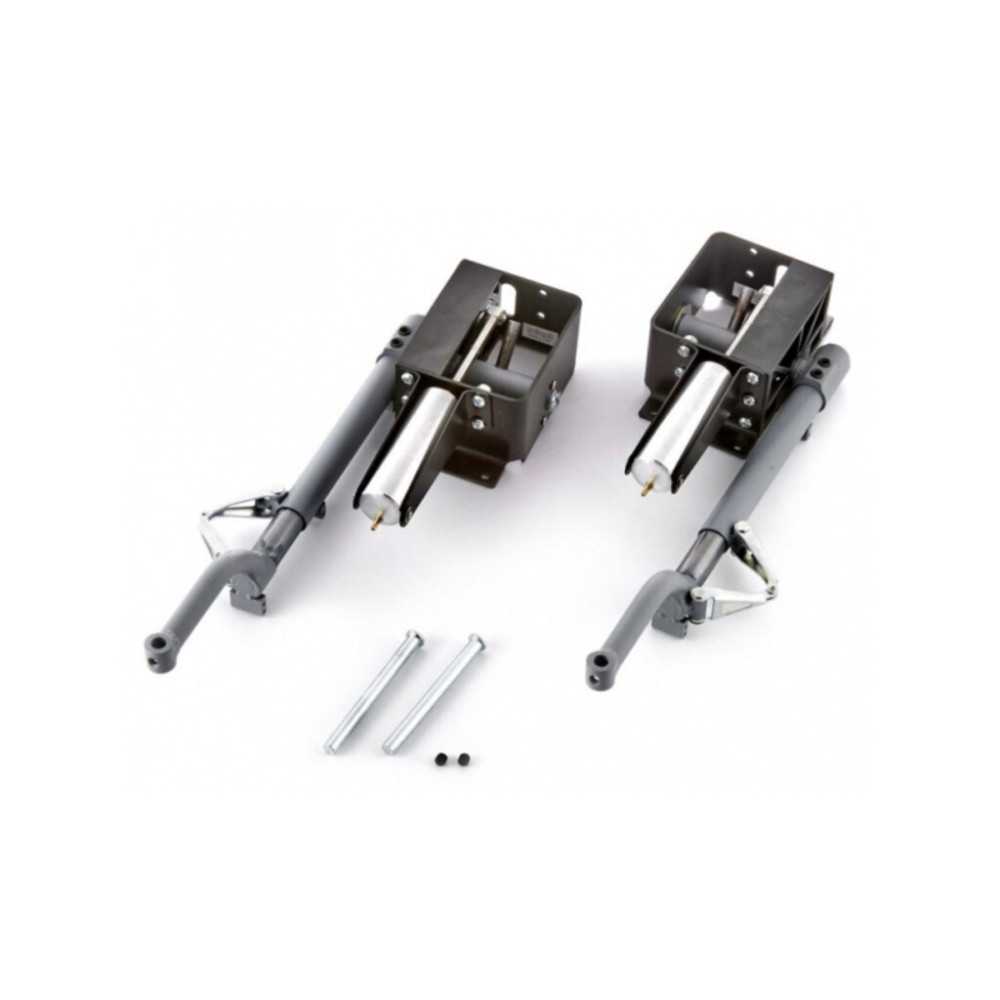

Robart Top Flite Giant Zero Pneumatic Main Retracts

This is a pair of Robart Pneumatic Retracts for the Giant Scale Gold Edition Zero A6M from Top Flite.

REQUIREMENTS

• 157VR Large Air Control Kit

• 169 Pressure Tubing 10'

• 160WC Fork Pneumatic Tail Wheel

SPECIFICATIONS

• Mounting Hole Centers (Lengthwise): 4" (102mm)

• Mounting Hole Centers (Widthwise): 1-13/16" (46mm)

• Strut Length/Top to Axle Hole Center: 10-1/8" (257mm)

• Strut Deployment Angle: 85°

• Axle Hole Diameter: 1/8"

• Length/Mounting Bracket to Cylinder Assembly: 6-1/4" (158mm)

• Length/Mounting Bracket to Bottom of Strut: 9-1/16" (230mm)

• Strut Center to Center of Mounting Bracket Hole: 2" (51mm)
