AVIAO SKYWING EXTRA-NG 104" 120CC ARF 2.64M A WHITE/RED/BLUE

ProductInformation

1. Advancedconstruction for today's demanding pilots

2. PATENTEDquick assembly canopy, wings and elevator systems EXCLUSIVE to Skywing

3. Fastassembly time with pre-hinged and pre-sealed ailerons and elevators

4. Factoryassembled detailed canopy interior

5. Removablerudder with single pin assembly

6. Incrediblevalue NOW WITH MATCHING SPINNER, fuel tank, fuel line, fuel and vent dot,  wingand stab bags, as well as preinstalled high quality extensions.

7. cowl prefabricated cooling baffle

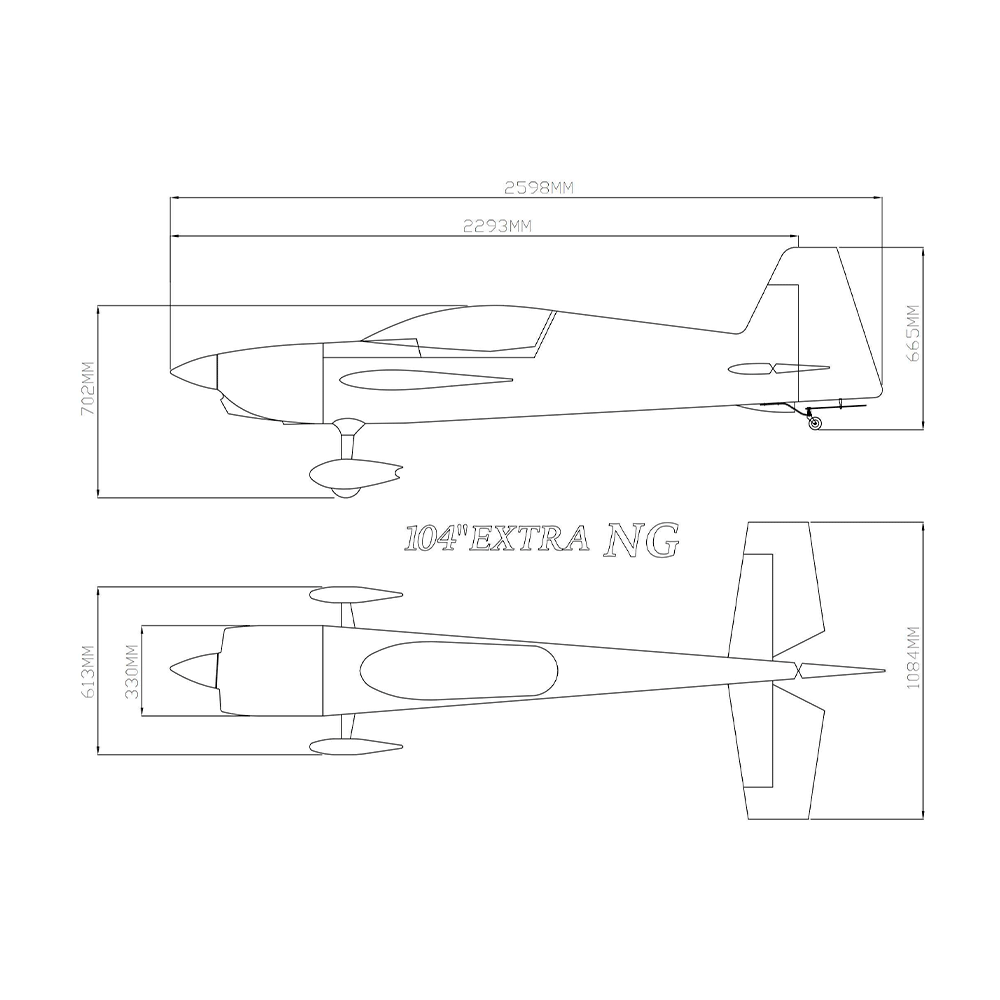

PRODUCT DATA
Wingspan;104 in./2641mm
Lenqth:102.6 in./2608mm
Wing Area:1920.5sq in/123.9dm²
Weight:28.22 lbs/12.8kg


Packaging Size/ Weight:
Fuselage=214*55*42cm/16.5kg

Wing=132*70*18cm/8.0kg

Cowl=46*42*42cm/3.1kg

REQUIRED HARDWARE:

1. 100-120cc Gas Engine*1

2. Carbon Propeller (27x11, 28x10, 29x9)*1

3. Digital High Speed Throttle Servo*1

4. Digital High Torque Metal Gear Servos (38kg or above)*7-8

5. Arms - tapped for 3mm hardware (aileronsx 4/1.75",elevator x 2/1.75",rudder x 1 or2/1.75")*7-8

6. Extensions - throttle(450MM)*1

7. Extensions - outer ailerons(600mm/2pcs 100mm/2pcs)*4

8. Dual Servo Harnesses - easy assembly at the field Receiver, Battery Packs, Switches, ETC.
