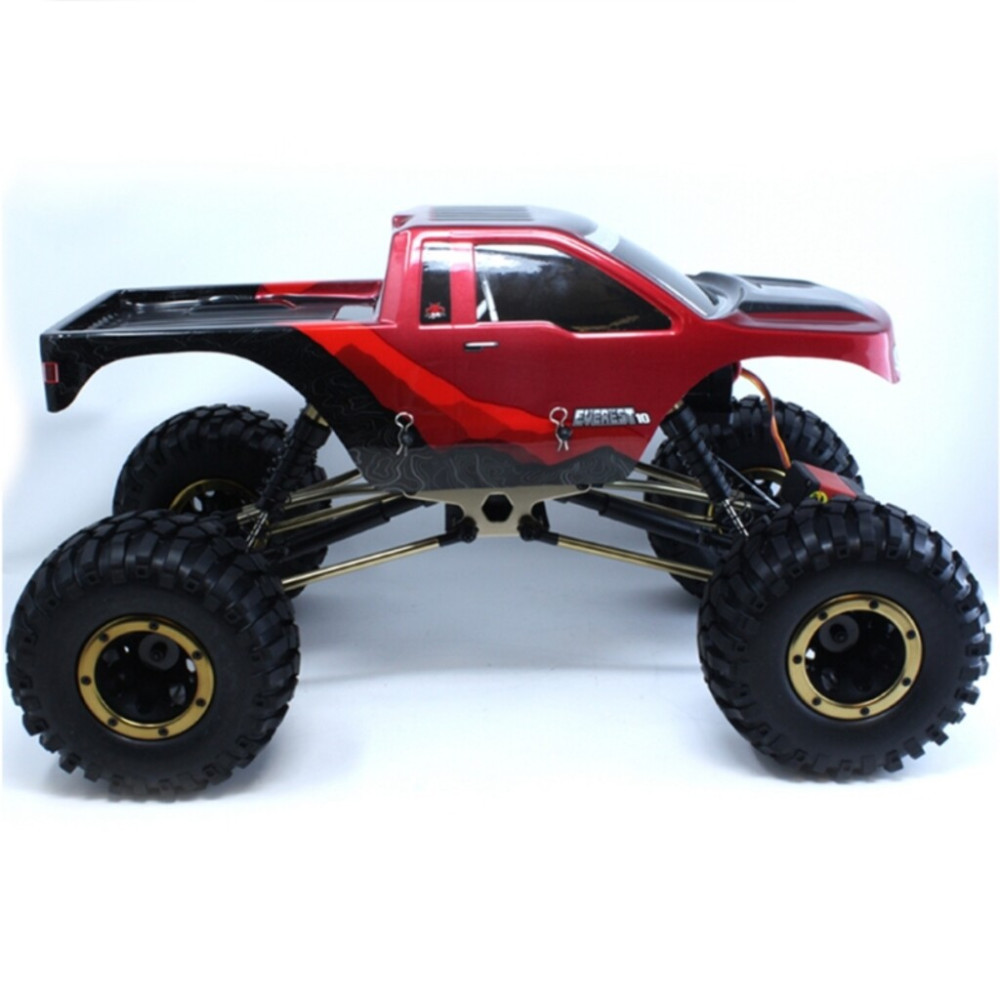

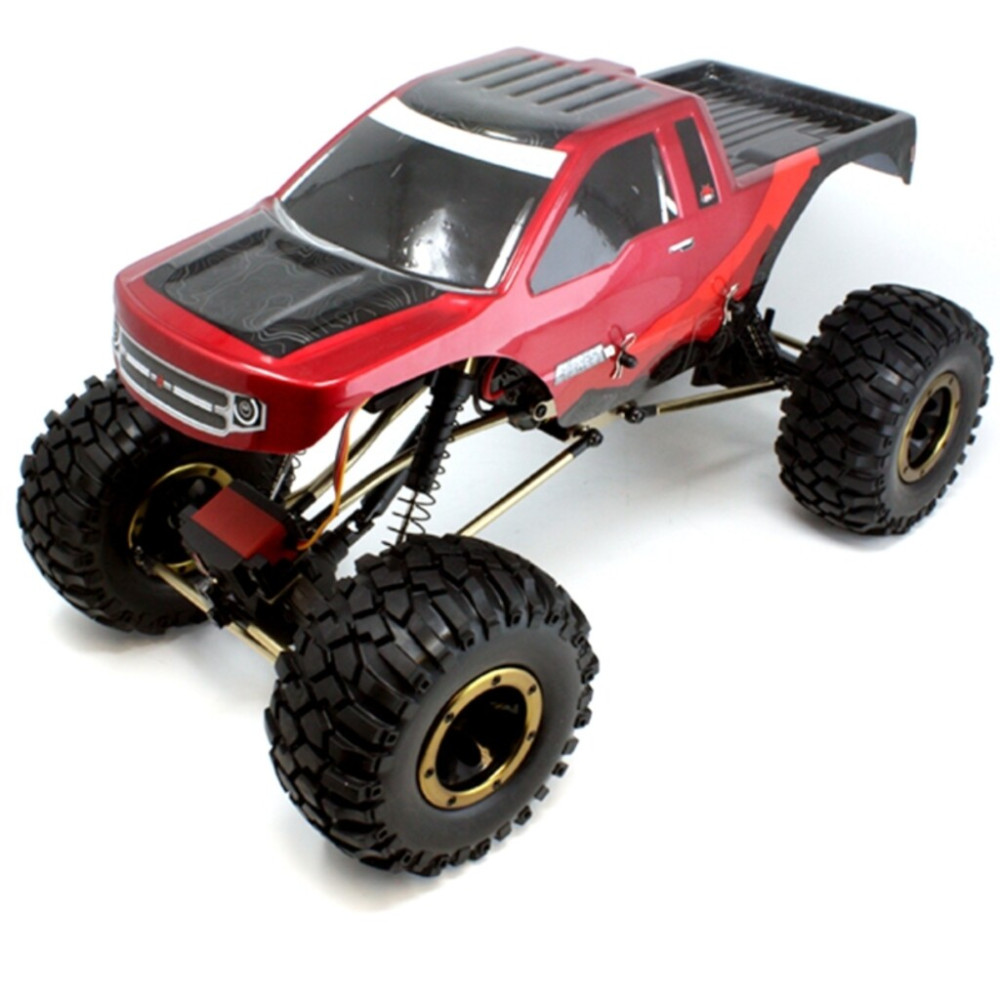

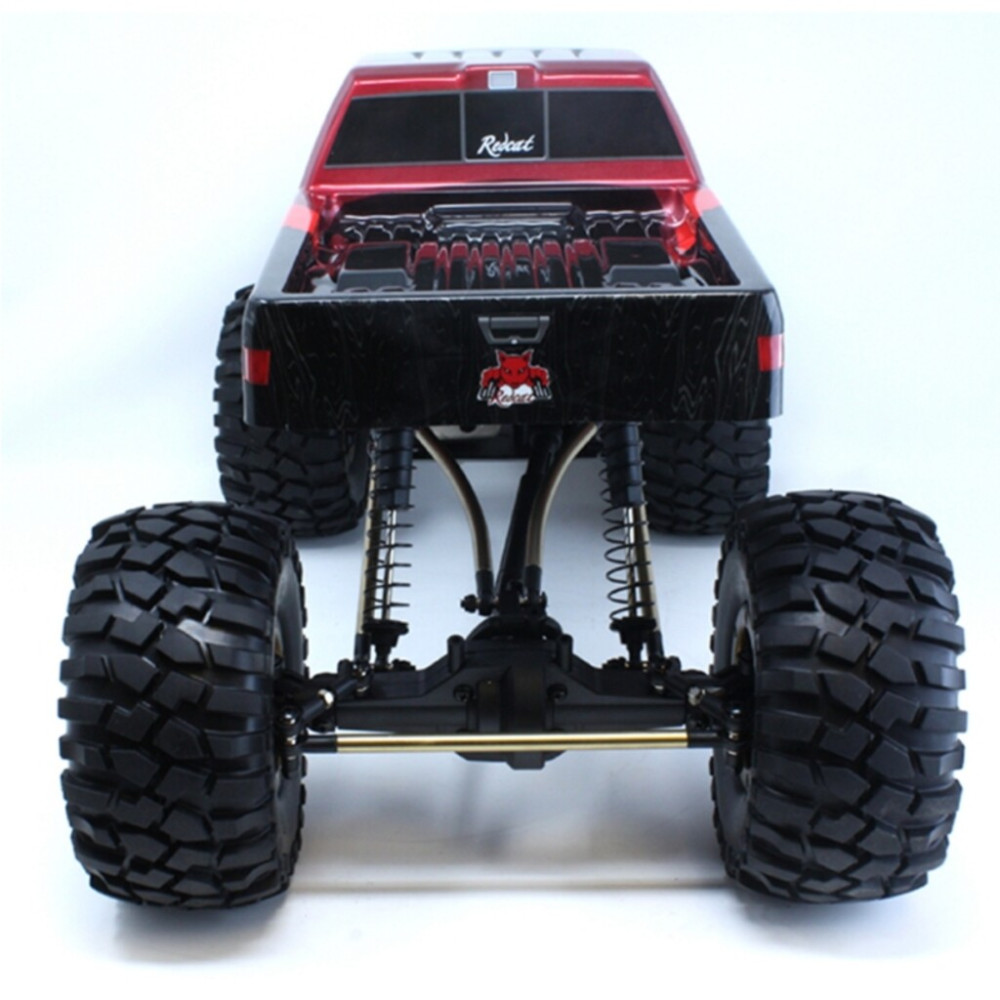

REDCAT 1/10 EVEREST-10 ROCK CRAWLER RED 18034

FEATURES

• Chassis: Aluminum
• Drive: Four wheel shaft drive
• Motor: High torque 54 turn 540 brushed
• Radio: RCR-2CENR 2.4GHz
• Steering Servo: Hexfly 15kg metal gear
• Electronic Speed Control: 40A waterproof, LiPo compatible
• Shocks: Oil-filled long travel with anodized aluminum caps
• Battery: 7.2V NiMH 2000mAh
• Battery Charger: 110V wall type
• Wheels: Three piece removable beadlocks
• Tires: Width 2.4" (60mm), outer diameter 5.1" (130mm), inner diameter 2.4" (61mm)
• Body: Trimmed and printed in red and black color scheme

INCLUDES

1/10 scale RTR Electric Powered Everest-10 Rock Crawler with Radio System, Body, Motor, ESC, Battery, Charger, Instruction Manual, Tires, Foam Inserts, Wheels and 14 tooth Pinion Gear

REQUIREMENTS

AA Batteries: Four for transmitter

SPECIFICATIONS

• Length: 18.1" (460mm)
• Width: 10.2" (260mm)
• Height: 6.3" (160mm)
• Wheelbase: 12.6" (320mm)
• Ground Clearance: 3.5" (90mm)
• Dry Weight: 4.6lbs (2.09kg)
• Gear Ratio: 1:48

COMMENTS

For replacement ball bearings use:

Qty. Size Location Qty. Bearing Set

• 2 10x15mm Fr Uprights 1 DTXC1595
• 2 5x10mm Fr Uprights 1 DTXC1535
• 2 10x15mm Rear Uprights 1 DTXC1595
• 2 5x10mm Rear Uprights 1 DTXC1535
• 2 5x10mm Fr Axle 1 DTXC1535
• 2 5x10mm Rear Axle 1 DTXC1535
• 2 5x10mm Fr Driveshafts 1 DTXC1535
• 2 5x10mm Rear Driveshafts 1 DTXC1535
• 2 10x15mm Transmission 1 DTXC1595
• 4 5x10mm Transmission 2 DTXC1535
