ICHARGER 308DUO 1300W 30A 8S DUAL CHARGR

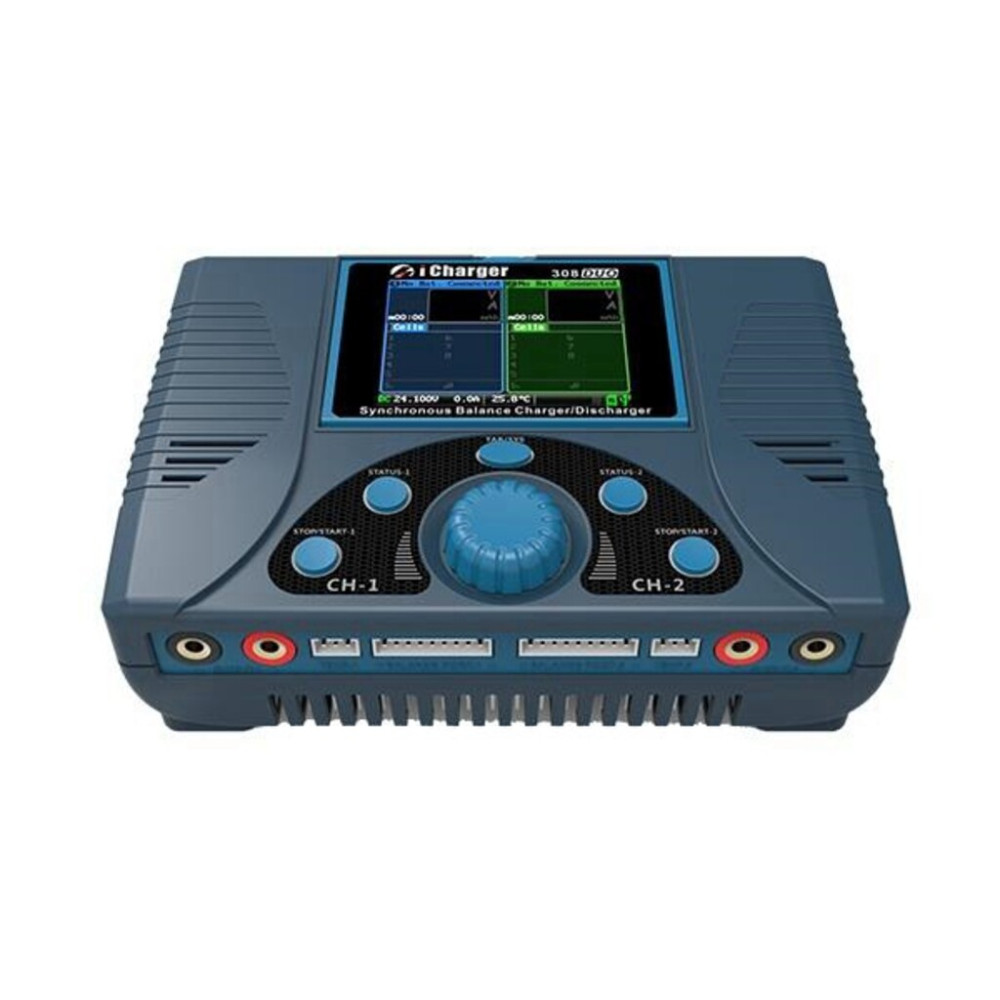

iCharger 308 Duo

Need flexibility in your charging? Nothing beats the convenience of a dual-port charger. Two independent charging channels in one compact unit lets you simultaneously work with batteries of different cell count , charging at up to 30A simultaneously - or if you want to go all out, combine the two channels and charge at up to 50A!

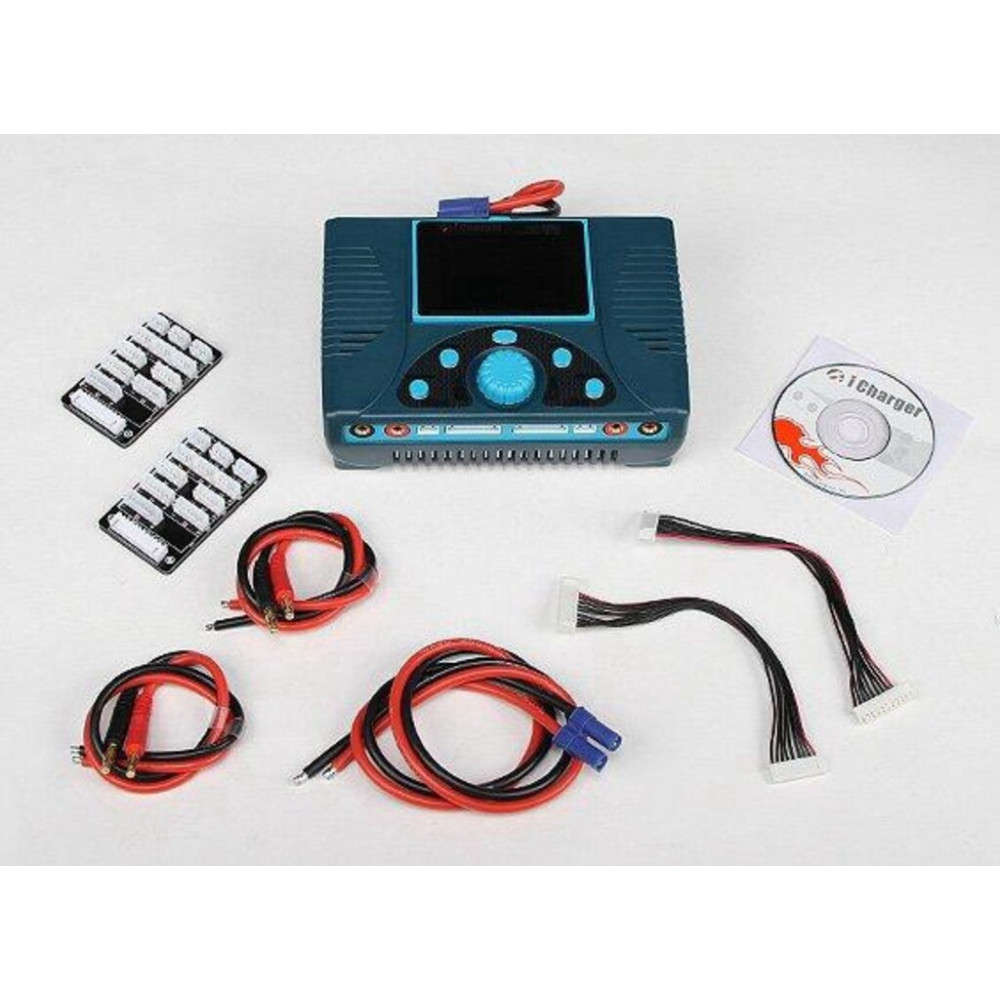

With two JST-XH balance boards thrown in for free - one for each channel - you'll be ready to go right away.

Specifications

Input voltage range: 10-30V DC

Input current limit: Total = 60A, Ch1/2 = 40A

Maximum charge power: 1300W at >23.5V (800W max. per channel)

Charge current range: 0.05-30.0A per channel, or up to 50A in synchronous mode

Discharge power: 80W per channel, or up to 120W in synchronous mode

Maximum regenerative discharge: 800W per channel, or up to 1300W in synchronous mode

Maximum external discharge: 1050W per channel, or up to 2100W in synchronous mode

Current drain for balancing: 1.2A per channel, or up to 2.4A in synchronous mode

USB charging port: 5V/1A current limiting protection 1.2A

Balance accuracy: 10mV

LiPo/LiIo/LiFe: 1-8 series per channel

NiCd/NiMH battery cell count: 1-25 series per channel

Pb battery cell count: 1-18 series per channel

PC Connectivity: USB port

Weight: 910g

Dimensions (LxWxD): 171x118x59 mm

Warranty: 1 year
