AIRCORE ZERO GREEN AIRFRAME FLZA3909

NOTES FROM OUR TECH DEPARTMENT

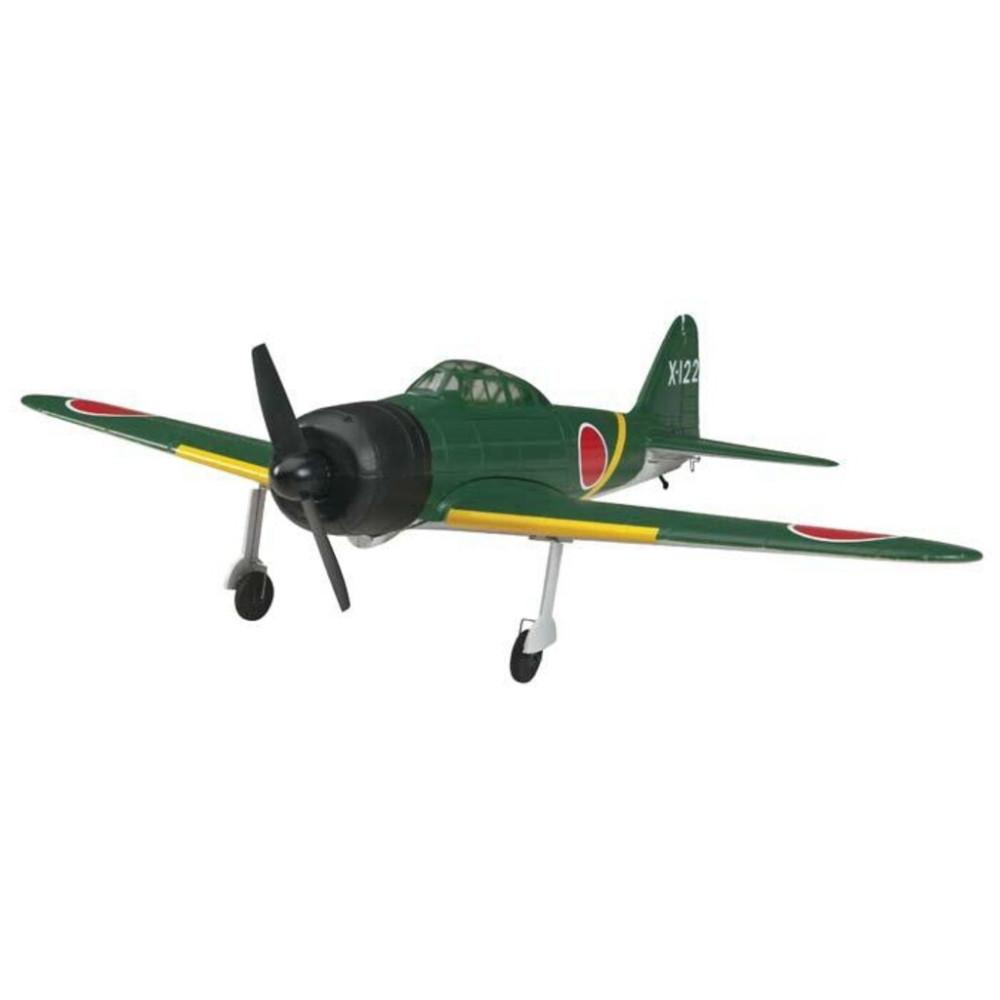

This is the Electric Powered, Radio Controlled, Select Scale Zero AirCore Modular Aircraft System in Green from Flyzone.

Uses the Power Core Power Cartridge (not included, order FLZA6400) that consists of a Brushless Motor, ESC, Tactic SLT receiver and three digital ultra-micro Servos.

The Power Core is self-aligning can be easily installed into any Flyzone AirCore Modular Aircraft System without tools.

FEATURES

Construction: Foam, may be repaired with #560 canopy glue or thick foam safe CA glue

Wing: One-piece with prehinged ailerons

Spinner: 1.6" (40mm) foam

Propeller: Plastic, black in color

Canopy: Clear with painted-on frame lines

Landing Gear: Prebent wire with 1" (25.4mm) diameter foam wheels

INCLUDES

Zero Modular Aircraft in Green with Propeller, Landing Gear and Instructions

REQUIREMENTS

AirCore Power Core

Transmitter: 4-channel transmitter with SLT or AnyLink and compatible 4-channel transmitter

Battery: 7.4 LiPo battery

Battery Charger: Compatible with selected battery

SPECIFICATIONS

Wingspan: 21.5" (545mm)

Weight: 5.4oz (155g)

Length: 17.5" (444mm)

Center of Gravity (CG): 1-3/8 - 1-5/8" (35 - 41mm) back from the leading edge of the wing measured at the fuselage, range is determined with Power Core, prop and battery installed

Control Throws

Elevator Up & Down: 1/4"-9/32" (6mm-7mm) 17°-18°

Ailerons Up & Down: 1/4"-9/32" (6mm-7mm) 17°-18°

Rudder Left and Right: 1/4"-11/32" (6mm-8mm) 8°-12°
