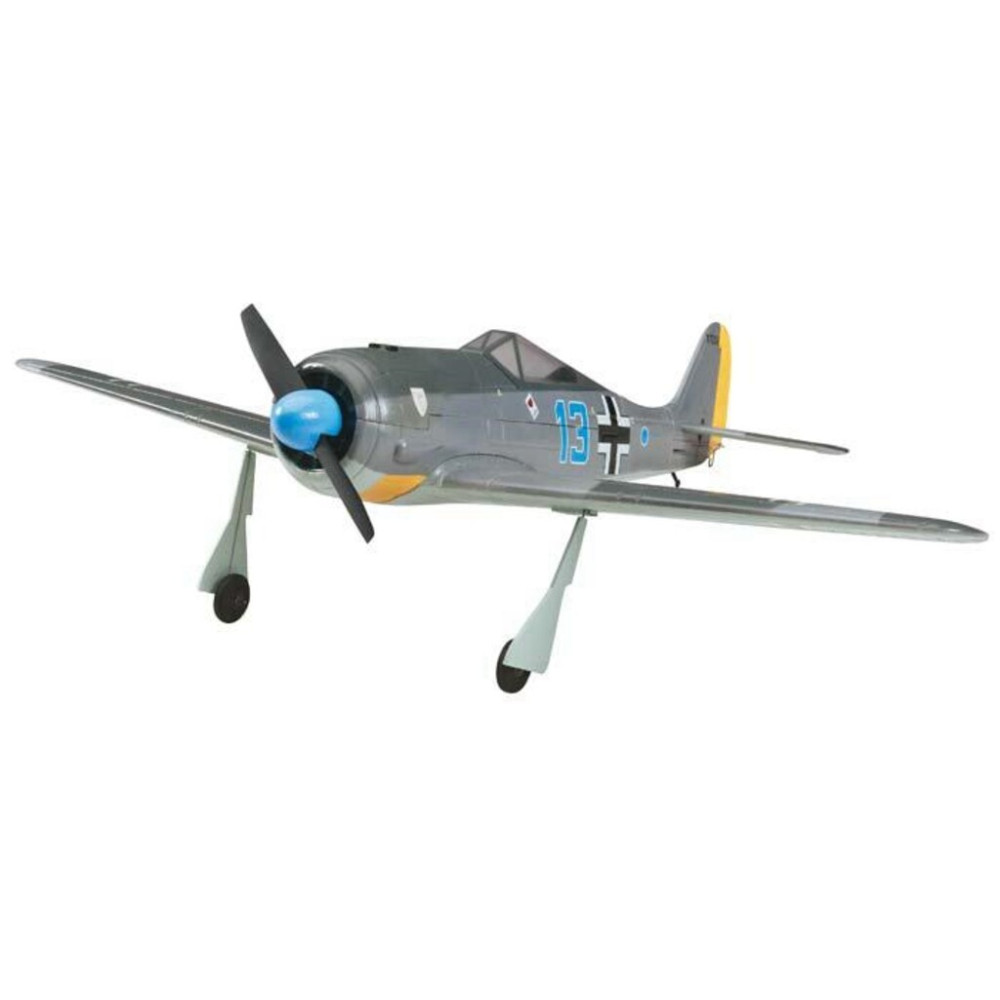

AIRCORE FW-190 AIRFRAME FLZA3905

This is the Electric Powered, Radio Controlled, Select Scale
Focke Wulf FW-190 AirCore Modular Aircraft System from Flyzone.

Uses the Power Core Power Cartridge (not included, order FLZA6400)
that consists of a Brushless Motor, ESC, Tactic SLT receiver
and three digital ultra-micro servos.
The Power Core is self-aligning can be easily installed into any
Flyzone AirCore Modular Aircraft System without tools.

Construction: Foam, may be repaired with #560 canopy glue or thick
foam safe CA glue
Spinner: 1.1" (28mm) foam, blue in color
Propeller: Plastic, black in color
Canopy: Clear with painted-on frame lines
Landing Gear: Prebent wire with 1" (25.4mm) diameter foam wheels

FW-109 AirCore Modular Aircraft with Propeller, Landing Gear and
Instructions

AirCore Power Core Cartridge
Transmitter: 4-channel transmitter with SLT or AnyLink and compatible
4-channel transmitter
Battery: 7.4 LiPo battery
Battery Charger: Compatible with selected battery

Wingspan: 22" (560mm)
Weight: 4.3oz (122g)
Length: 18.5" (470mm)
Center of Gravity (CG): 7/8 - 1" (23 - 25mm) from the leading edge of
the wing at the fuselage
Control Throws-
Elevator: 5/32 - 3/16" (4 - 5mm) 17 - 21° up and down
Ailerons: 1/4 - 9/32" (6 - 7mm) 17 - 19° up and down
Rudder: 5/16 - 3/8" (8 - 9mm) 19 - 21° left and right
