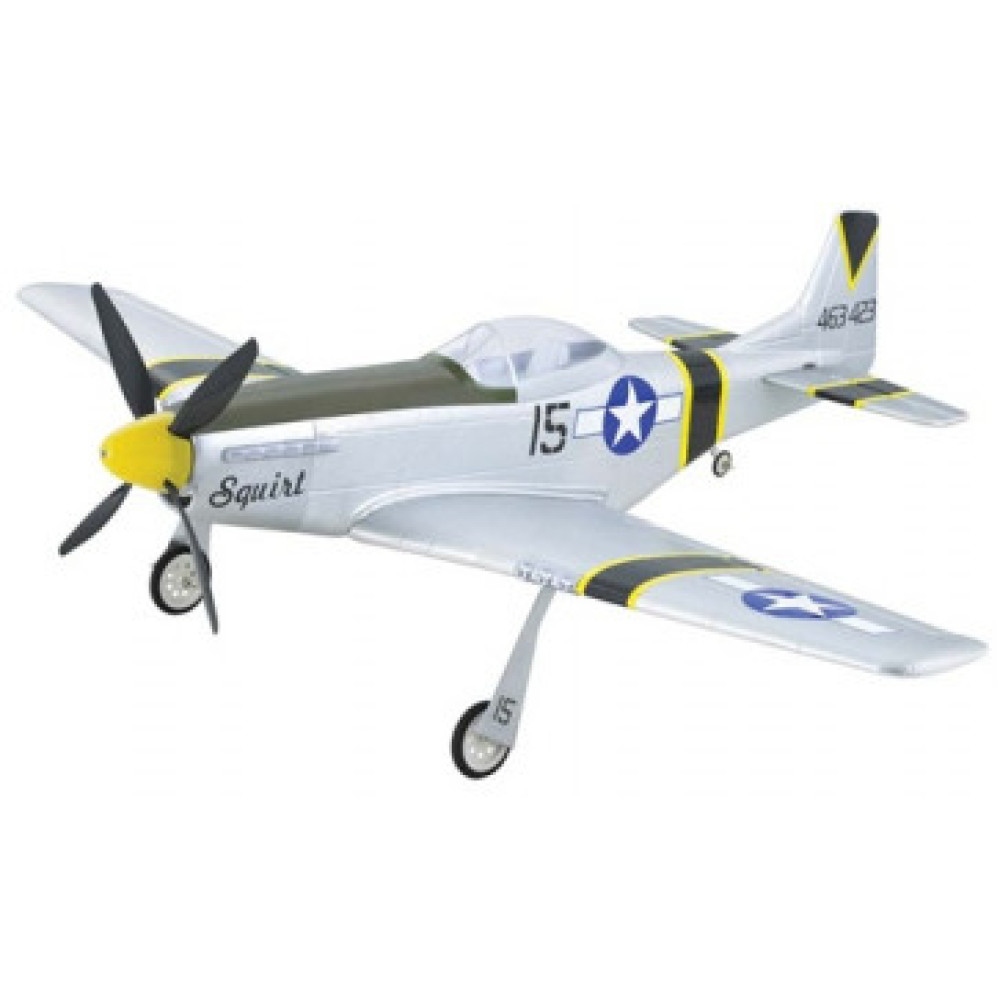

AVIAO TT P-51 MUSTANG ARF TTR4320

• Construction: Foam
• Wings: One-piece foam
• Aileron Control: Single servo
• Gearbox: 4:1 gear ratio
• Radio Compartment: Accessible over wing, plywood servo mounts
• Cowling: Constructed of plastic, painted to match color scheme
• Spinner: 1.8" (47mm) constructed of plastic, yellow in color
• Propeller: 4-blade
• Canopy: Clear, single
• Landing Gear: .08" (2mm) diameter wire main and tail gear
• Wheels: 1.9" (48mm) foam ultralite style main, .75" (19mm) rubber tailwheel
• Building Time: Ready to fly in several hours

• Thunder Tiger P-51D Mustang airplane with 4-blade 4:1 gearbox
• spinner
• landing gear
• three wheels
• two decal sheets
• plastic motor mount
• hardware package
• photo-illustrated instructions
• epoxy glue

• Radio: 3-channel
• Servos: Two micro
• Electronic Speed Control: 12A brushless compatible, with BEC
• Motor: Ripper Outrunner 2928/09 brushless recommended
• Battery: 3S 11.1V LiPo pack
• Battery Charger: To match selected battery
• Building and Field Equipment

Do not use CA glue to assemble, it will destroy the foam.

• Wingspan: 33-3/4" (856mm)
• Wing Area: 196 sq in (12.64 sq dm)
• Weight: 15.2 oz (430g)
• Length: 27-3/8" (695.5mm)
• Center of Gravity: 2.5" (63mm) Back from the wing's leading edge at the wing root
• Control Throws:
• Aileron, up & down: Low Rate: 1/4" (6mm) -- High Rate: 3/8" (9mm)
• Elevator, up & down: Low Rate: 1/4" (6mm) -- High Rate: 3/8" (9mm)
